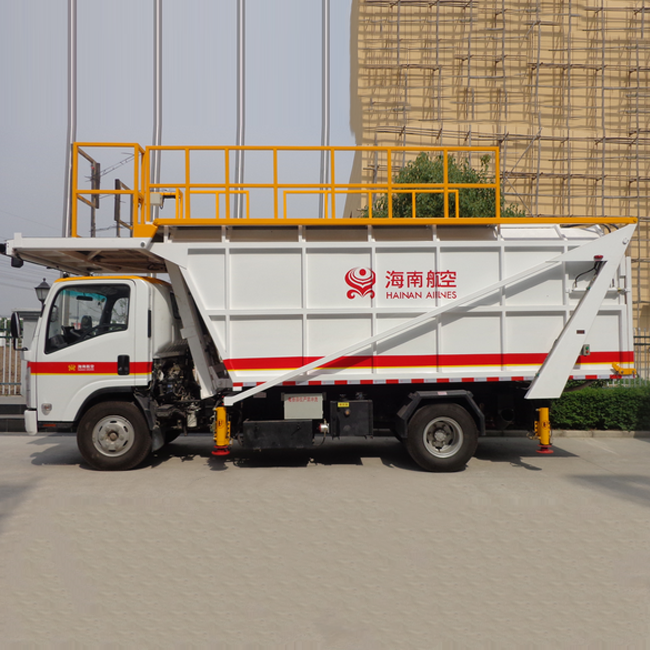

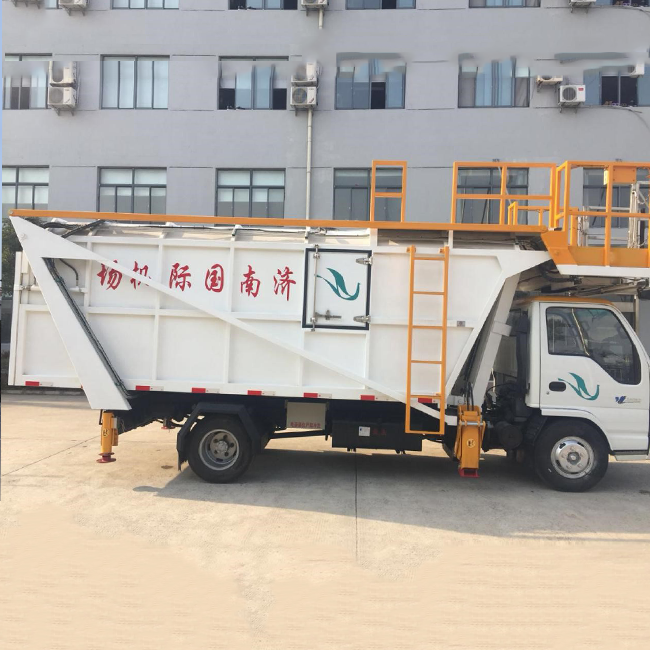

WTJ5060LJC Diesel Airport Garbage Vehicle is composed of Qingling automobile chassis, underframe, garbage compartment, platform assembly, lifting door frame assembly, hydraulic system and electrical system. Suitable for the use of A300, A310, A320, A330, A340, B737, B747, B757, B767, B777 and other models; Dustbin capacity 15m3; Rated load of 1 ton, the maximum height of the platform from the ground can be achieved 2400-5800mm, the box tilted with the platform, so that the garbage can fall to the bottom, the working platform and the front end of the box hinged connection, and the rod will be connected with the end of the diagonal beam, forming a parallelogram mechanism, when the door frame lifting, the box is turned around the fixed shaft on the diagonal beam. The platform rotates around the box and is always kept parallel to the ground to ensure the operation of the staff.
Diesel Airport Garbage Vehicle Main technical parameters
| serial | Project Name | Specific parameters | Part Name | Model |
| 1 | Total length (mm) | 7895 | chassis | QL1070A5KAY |
| 2 | Total width (mm) | 2260 | engine | 4KH1CN5HS |
| 3 | Total height (mm) | 3500 | gearbox | MSB-5SM |
| 4 | Wheelbase (mm) | 3815 | Front bridge | 3000010-L20PA |
| 5 | Wheel base (front/rear) (mm) | 1504/1425 | Rear axle | 2400010-L20PA |
| 6 | Front suspension (mm) | 1015 | tyre | 7.00R16 14PR |
| 7 | Rear suspension (mm) | 1370 | Force extractor | SDQ51/74LGS-G |
| 8 | Approach Angle (°) | 24 | Hydraulic pump | CBN-F50-BFHL |
| 9 | Departure Angle (°) | 12 | Emergency motor pump | GP2KW2CC/R-12V |
| 10 | Minimum ground clearance (mm) | 180 | Hand pump | PM050e-s |
| 11 | Maintenance weight (kg) | 5300 | ||
| 12 | Total mass (kg) | 6930 | ||
| 13 | Channel circle outer circle diameter (mm) | 18000 | ||
| 14 | Maximum speed (km/h) | 80 | ||
| 15 | Garbage box volume (m⊃3;) | 15.8 | ||
| 16 | Maximum cabin tipping Angle (°) | 35 | ||
| 17 | Minimum height of working platform (mm) | 2400 | ||
| 18 | Maximum height of working platform (mm) | 5800 |
