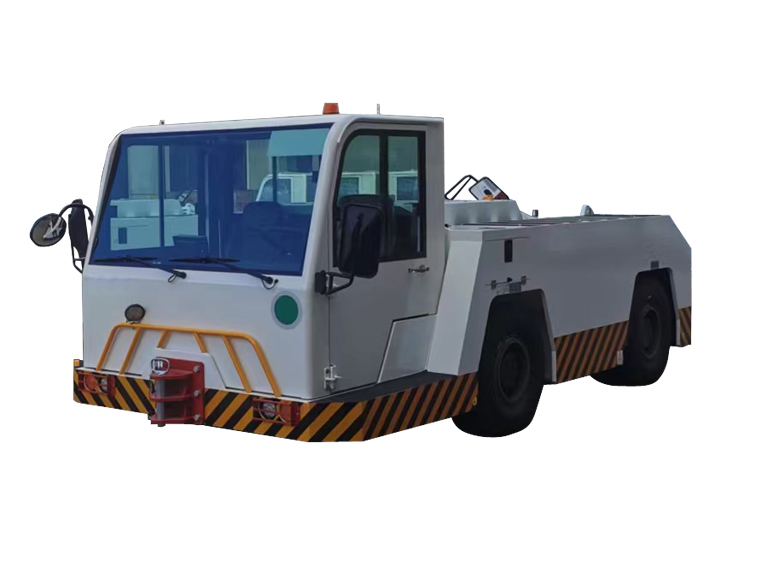

120KN Aircraft Tow Tractor

120KN Aircraft Tow Tractor

Technical specifications of 120KN Aircraft Tow Tractor

Overall dimensions: 5360X2100X2020mm

Minimum turning radius: 3400mm(four-wheel), 5800 (two-wheel)

Wheelbase: 2150mm

Ground clearance: 200mm

The total weight of the vehicle is 15,100 kilograms

Maximum traction force: 120KN

Maximum traction mass: 160 tons

Maximum speed: 25km/h

Engine

Model: Deutz BF4M2012-10T3R

Type: In-line, four-cylinder, four-stroke, turbocharged water-cooled, diesel engine

Displacement: 3.8L

Maximum output power: 74.9kw/2300rpm

Maximum output torque: 390Nm/1400rpm

Emissions: Euro 3

Automatic transmission

Model: DANA T12000

Type: Hydraulic automatic transmission, featuring a simple structure, reliable operation, stable performance, and a maximum efficiency of up to 92%

Move forward 4 gears and reverse 3 gears

The 120KN Aircraft Tow Tractor weighs 15 tons and can tow aircraft with a maximum takeoff weight of no more than 160 tons. We can provide pushing and towing services for medium and small-sized aircraft such as A321-200, B737-700/800/900, A320, A319, MD-80, MD-90 and MD82
