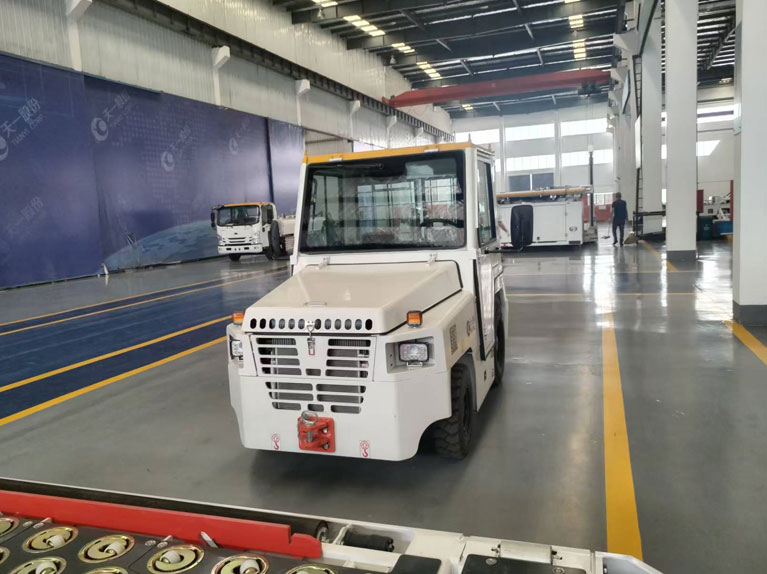

25kN Baggage Tow Tractor

The Baggage Tow Tractor has a maximum hook pull of 25kN and a towing capacity of 30t. It is used for towing luggage/cargo. It is equipped with a Cummins China IV emission standard diesel engine and an Okamura two-speed hydraulic transmission.

Baggage Tow Tractor Specifications

Overall Length (mm): 3180/2950

Overall Width (mm): 1490

Overall Height (mm): 2180

Wheelbase (mm): 1620

Front Wheel Length (mm): 1275

Rear Wheel Length (mm): 1230

Front Overhang (mm): 690

Rear Overhang (mm): 640

Minimum Ground Clearance (mm): 150

Minimum Turning Circle (mm): 5950

Maximum Speed (Unladen/Loaded) (km/h): 28/13

Curb Weight (kg): 4210

Front Axle Load (kg): 1280

Rear Axle Load (kg): 2930

Gross weight (kg): 4340

Rated towing capacity (kg): 30,000

Maximum towing force (kN): 25

Height of towing hitch center from ground (front/rear): 305/405 mm
