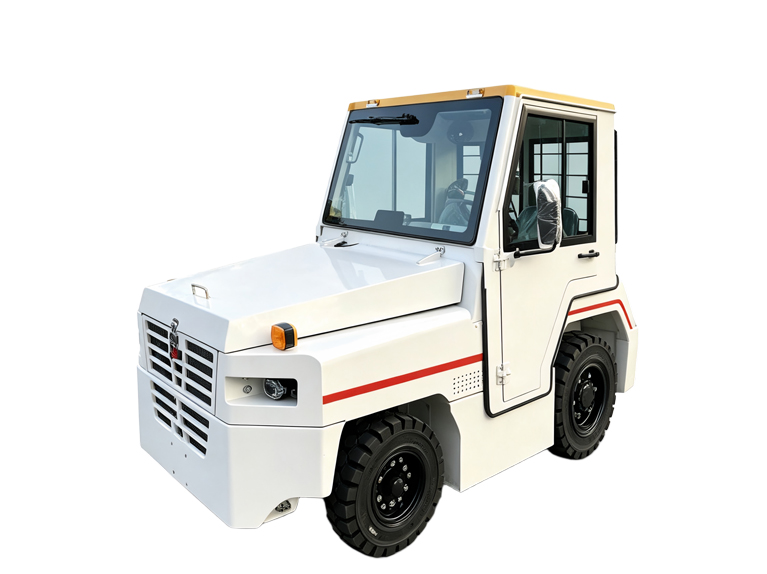

25KN baggage tractor

baggage tractor (internalcombustion type) is a specialized motorvehicle used in airports, freight stations,ports, stations, warehouses, factories, andindustrial and mining enterprises for towingluggage, goods, and various types ofunpowered equipment. The vehicle selectsinternationally renowned brand enginesand transmissions, along with famoussupporting parts in the domesticautomotive manufacturing field. It has amaximum hook towing force of 25 kN and arated towing weight of 30,000kg.

Technical parameters of baggage tractor

Tractor model:TY-TD25

The largest traction kN:25

Rated towing weight Traction bike kg:30000

Max. gradeability Unloaded %:45

Overall length (including/excluding traction bolt)mm:3160/2930

Overall width mm:1440

Overall height (including/excluding cab) mm:2050/1500

Wheelbase mm:1600

Minimum turning radius mm:6500

Traction bolt center height mm:305/405

Minimum ground clearance mm:150

Vehicle weight (including/excluding cab) kg :4240/4000

Engine rated power kw/rpm:36/2500

Engine maximum torque Nm/rpm:186/1500
