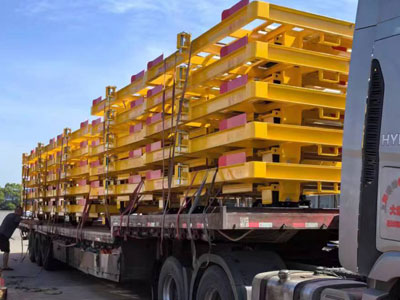

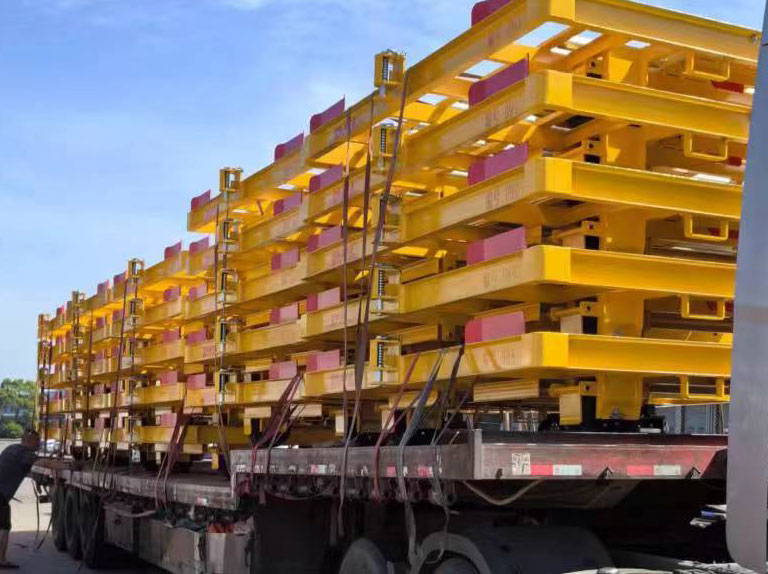

7T Multi-functional Container & Pallet Dolly Component description
Frame: The national standard 16#, 10# channel steel, the roller beam is 63#x63#x8mm thick Angle iron, with a walkway in the middle, sealed with 3mm pattern steel plate, and forklift holes are installed before and after.
Roller: The working face adopts a double row of rollers, a total of 28 pieces, and the roller is φ76x4mm high-quality seamless steel pipe (galvanized). Built-in bearing, both ends of the mouth type, two ends of the drum with M20 self-locking nut fixed, the biggest advantages of the drum, do not fall off, impact resistance, dust resistance, not easy to damage.
Mop: The use of 8# channel steel integral welding, the mop has the brake function, in the operation of decoupling, the mop by its own weight falling down against the brake lever to brake the rear wheel. The mop design has an adjustment function, generally adjusted to the height of the mop head from the ground is 80-150mm for braking the rear wheel.
Brake: Designed into double brakes, mainly solve the two groups of rear wheel wear conditions (including a single group of new wheels) can be adjusted each group, so that the tire brake plate is more consistent, avoid the danger of self-braking car rotation, so that the brake is safer and more effective.
7T Multi-functional Container & Pallet Dolly is used for loading P1P, P6P pallet, and LD1, LD2, LD3, LD4, LD7, LD8,
LD9, LD11, LD26, LD29, LD39 containers.
