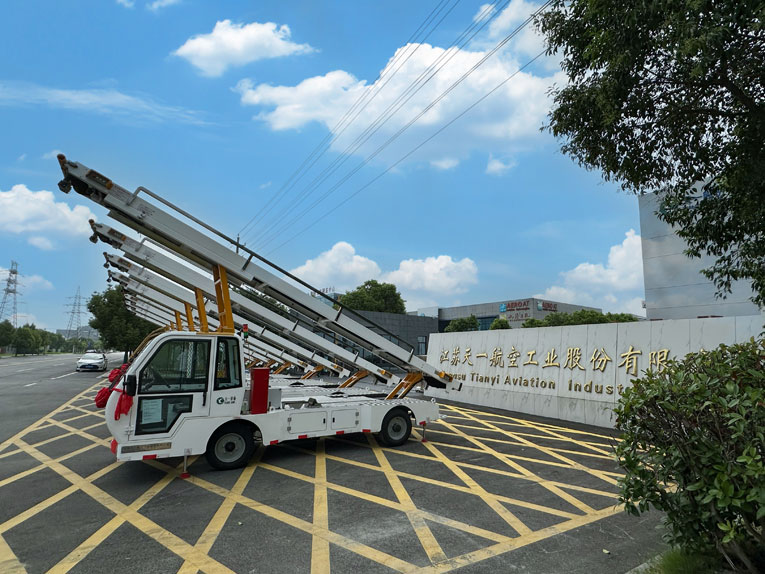

88.87kWh Rated Electric Currency Belt Loader product standard
Reference materials for IATA AHM 905 Civil aircraft apron support Equipment
Basic Requirements for Ground Support Equipment at IATA AHM 910 Airport
IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
Technical Specification of IATA AHM-925 Self-driven Conveyor Belt Loader
MH/T 6030-2014 Bulk Cargo loader
AC-137-CA-2015-17 Specification for Inspection of Bulk Cargo Loaders
GB/T 18488-2006 Electric Motors and Their Controllers for Electric Vehicles
GB/T 24347-2009 DC/DC Converter for Electric Vehicles
GB/T 18384-2001 Safety Requirements for Electric Vehicles
GB/T 18487-2001 Conductive Charging System for Electric Vehicles
GB/T 20234-2015 Connecting Devices for conductive Charging of Electric Vehicles
GB/T 27930-2011 Communication Protocol between Off-board Conductive Chargers and Battery Management Systems for Electric Vehicles
DB11/Z993-2013 Technical Specification for Remote Service and Management System of Electric Vehicles
Main technical parameters of 88.87kWh Rated Electric Currency Belt Loader
Driving motor model: HCDM030HP2
Model of driving motor controller: HC30LKPIC-K21-V1-TY
Steering shaft model: 3000000-HY430A
Drive shaft model: 2400000-HY540A
The working range of the conveyor belt (mm) : The lifting range at the front end: 950-4580
The lifting range at the rear end: 290 to 1680
Transmission speed (m/s) : 0.16-0.5
Conveyor belt width (mm) : 700
Conveyor belt carrying capacity (kg/m) : 140
Overall dimensions (length × width × height) (mm) : 8050×2150×1950
Wheelbase (mm) : 2900
Maximum speed (km/h) : 30
Curb weight (kg) : 3620
Endurance capacity (km+t) for small airports: 305+459
Large airports: 308+456
Medium-sized airport: 306+456
Other features: Optional cab and canopy
Chassis model: JSTY5040JCSE-1000000A
The outer diameter of the channel circle (mm) : 13,500
Hydraulic motor model: HCDM007MG1
Hydraulic motor controller model: HCDM007CL1
Model of the energy storage device assembly: L200B01
Total energy storage device (kWh) : 88.87
