Aircraft Airplane Elevating Rubbish Truck for Airport Product standard
Reference material for IATA AHM 905 Station support equipment for civil aircraft
IATA AHM 910 Basic requirements for airport ground support equipment
IATA AHM 913 Basic safety requirements for airport ground support equipment
GB/T 31029-2014 Aircraft garbage pickup truck
AC-137-CA-2015-18 Inspection specification for aircraft waste collection vehicles
AC-137-CA-2015-20R1 General technical requirements for ground service equipment for electric aircraft
GB/T 18488-2006 Electric motor and controller thereof for electric vehicles
GB/T 24347-2009 DC/DC converter for electric vehicles
GB/T 18384-2001 Safety requirements for electric vehicles
GB/T 18487-2001 Electric vehicle conduction charging system
GB/T 20234-2015 Connecting devices for conductive charging of electric vehicles
GB/T 27930-2011 Communication protocol between electric vehicle non-on-board conduction chargers and battery management systems
DB11/Z993-2013 Technical specification for electric vehicle Remote service and management system

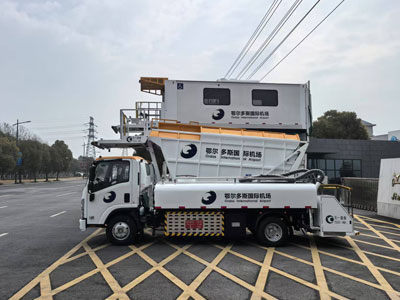

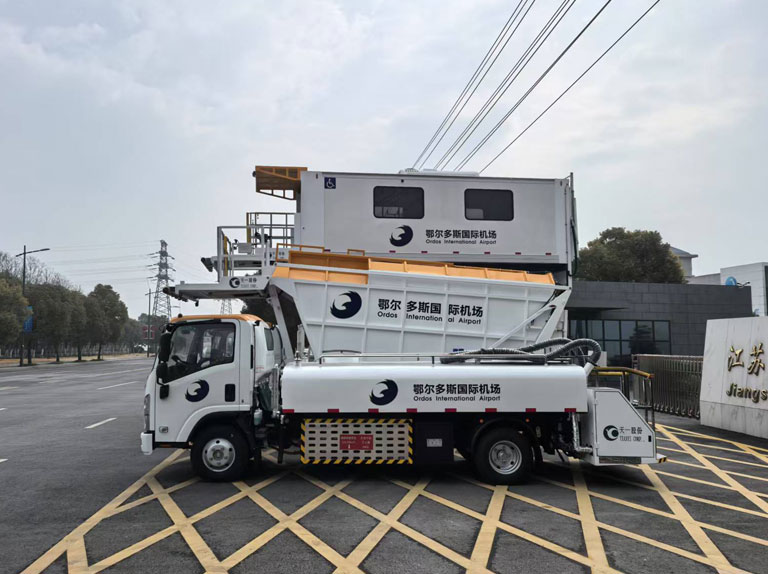

Aircraft Airplane Elevating Rubbish Truck for Airport configuration six
Chassis model: QL1070BEVECHA2Y
Drive motor model: YTD060W23
Drive motor controller model: KTZ50X35S
Hydraulic motor model: JSTY5060LJCE-10000001
Hydraulic motor controller model: JSTY5060LJCE-10000002
Energy storage device assembly model: L173TB2
The total energy of the energy storage device (kWh) : 106.95
Platform working height (mm) : 2400 ~ 5800
Overall dimensions (length × width × height) (mm) : 7895×2420×3300
Platform expansion adjustment range (mm) : 0~600 (short) /0~800 (long)
Body load rating (kg) : 2000
Refuse compartment volume (m3) : 20
Maximum tilt Angle (°) : 36.5
Maximum speed (km/h) : 80
Driving range (km) : 310
Maintenance weight (kg) : 6200
