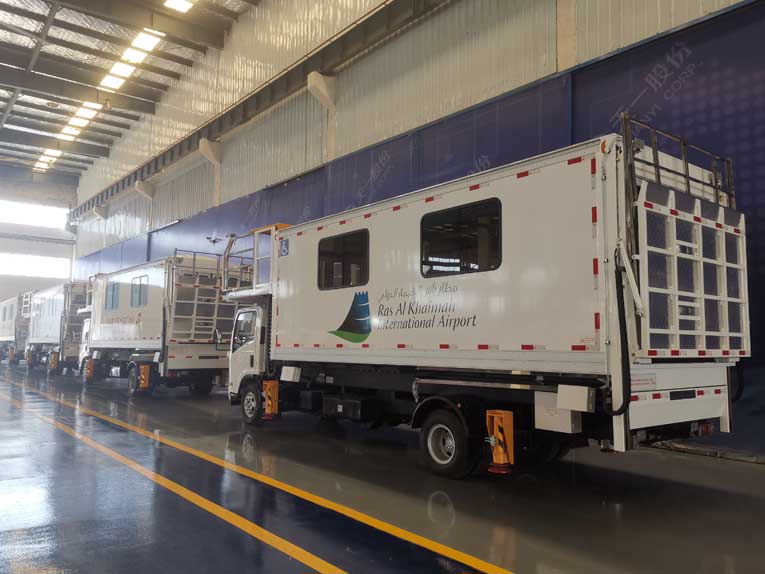

WTJ5100JCR ambulift truck is equipped with Qingling Class II automotive chassis modification, which is technologically advanced, safe and reliable to use, and has better performance than similar products modified with other domestic chassis.
Apply to aircraft A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, B787, DC8, 1L-18, 1L-62, MD11, MD80.
The main features of the product are as following:
a. Aircraft Ambulift Truck chassis adopts Qingling Class II chassis, with strong load-bearing capacity and good maneuverability. The hydraulic system uses Youyan directional valves, Zhonglong oil filters, etc. The oil cylinder uses the best domestic products, and key vulnerable components such as the oil seal inside the oil cylinder are all imported parts. The electrical system is also treated similarly.
b. Complete emergency measures are required to ensure the safety of ambulift truck.
c. The electrical system is well-designed with complete functions, which can effectively prevent various misoperations, ensure personal safety, and prevent equipment damage.
d. Adopting integrated circuit board and relay combination control, the control system is advanced and reliable.
Aircraft Ambulift Truck Diesel is configured with seven parameters
Engine model: 4HK1-TCG61
Platform working height (mm) : 2500-5800
Rated load of the box body (kg) : 2500
Rated load of the fixed platform (kg) : 1200
Rated load of the movable platform (kg) : 600
The left and right adjustment range of the platform (mm) : 0-600
Platform telescopic adjustment range (mm) : 0-600
Fixed platform dimensions (length × width) (mm) : 1835×2290
Mobile platform dimensions (length × width) (mm) : 910×2170
Curb weight (kg) : 10,500
Overall dimensions (length × width × height) (mm) : 8930×2460×3700
Chassis model: QL1110ANPAY
Engine emissions: The emissions meet the requirements of Stage 6b in the sixth stage of China as stipulated in GB 17691-2018, and the exhaust smoke intensity meets the requirements of GB 3847-2018
Body dimensions (length × width × height) (mm) : 6500×2300×2300
Transmission model: Allison1000
