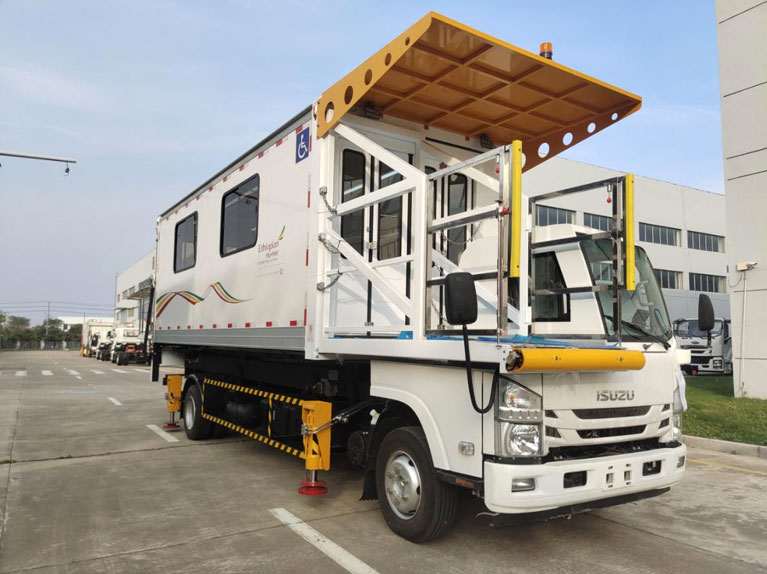

Aircraft Ambulift Truck chassis
1. Select Qingling 700P Class II vehicle chassis (QL1100A8PAY)
2. Engine model: 4HK1-TC51
Maximum power: 141kw/2600/min
Maximum torque: 513Nm/1600r/min
Type: Water-cooled, turbocharged, intercooled, four-stroke diesel engine
Emission standard: National V standard
Transmission Move forward six gears and reverse one gear
I: 6.720; II: 4.244; III: 2.580; IV: 1.540; V: 1.00; Ⅵ : 0.763; R: 6.823
3. Adopt a hydraulic power steering system.."
4. Adopt a dual-loop hydraulic braking system.
5. Qingling QL1100A8PAY (700P) Class II vehicle chassis, featuring stable performance and an attractive appearance.
When the platform is raised, the vehicle cannot move.
Technical specifications of Aircraft Ambulift Truck
Overall dimensions (length × width × height) : 9200mm× 2460mm × 3770mm
Internal dimensions of the box body (length × width × height) : 6350 mm×2200 mm×2100 mm
The telescopic distance of the telescopic platform is 600 mm
Mobile platform moving distance: 600mm
Front platform height from ground: 1400mm - 5800mm
The lifting height of the box body from the floor: 1500-5900mm
The height of the rear platform from the ground: 0mm - 1500mm
Wheelbase: 5200mm
Approach Angle: 14°
Departure Angle: 14°
The outer diameter of the channel circle: 20,500mm
Overall vehicle weight: 11,250 kg
The maximum load capacity of the box body is 2,500 kg
Maximum load capacity of the front platform: 1200kg
The maximum load capacity of the rear platform is 500kg
Allowable working wind speed: Level 8
Maximum speed: 75 km/h
When approaching an aircraft speed of no more than 3 km/h
Maximum working pressure: 16 Mpa
