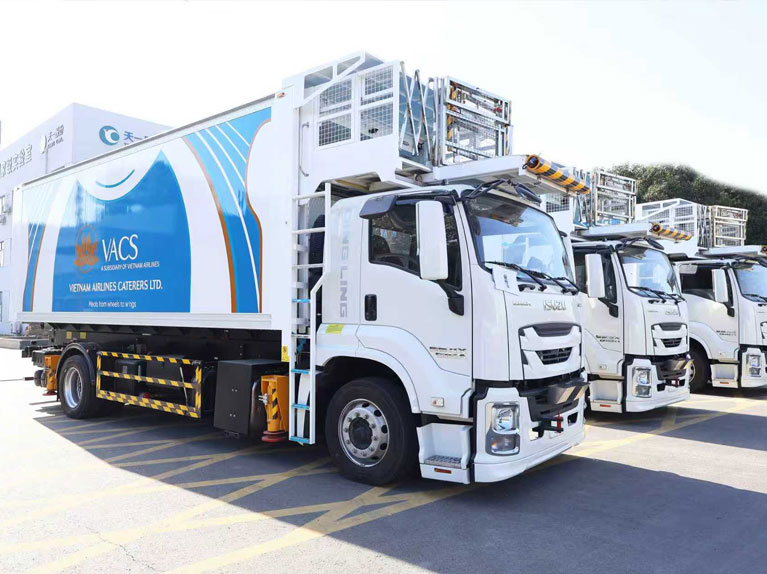

Aircraft catering vehicle working platform
① The working platform consists of a fixed platform, left and right moving platforms, and front and rear telescopic platforms.
② The fixed platform is connected to the front door frame of the compartment by a guide rail and roller assembly, enabling it to rise or descend when the compartment is lifted by the fork frame.
③ There are more than two lighting fixtures with a power greater than 55W on the working platform, and they are installed on both sides of the front of the compartment.
④ A circular anti-collision rubber cylinder is set at the end of the telescopic platform closest to the aircraft.
⑤ A rotating guardrail is installed on the left and right moving platform.
⑥ A telescopic guardrail is set on the rotating guardrail, and a D-shaped yellow anti-collision rubber tube is installed on the telescopic guardrail.
⑦ The left and right movement and front and rear telescopic functions of the platform are standardly equipped with hydraulic oil cylinders.
⑧ The platform is paved with aluminum alloy patterned aluminum plates.
⑨ The platform is equipped with prohibited leaning and platform load indication signs.
⑩ A stainless steel protective net is added to the platform guardrail.
⑪ The side door locking device of the platform adopts a self-locking structure, which is safe and reliable.
Warning:
① The telescopic platform can only lower the compartment after it is in place.
② Pay attention to the platform load.
③ During operation, the platform guardrail is prohibited from being leaned against.
The aviation catering vehicle can be widely applied to various aircraft models except the Airbus A380, including A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80, etc.
Aircraft catering vehicle refrigeration system
① The refrigeration system is composed of imported refrigeration units and evaporators.
② The refrigeration system is Carrier 1050.
③ All refrigeration systems have automatic start/stop and self-check functions, which can ensure that the temperature inside the refrigerated compartment is between 0 and 5℃, and the temperature can be reduced to the required range within half an hour after startup.
④ Refrigeration capacity: When the inlet temperature of the evaporator reaches 0℃, the refrigeration capacity is 6355W/h (7525W/h); at -20℃, the refrigeration capacity is 3825W/h (4685W/h).
⑤ Refrigeration system form: Independent type, driven by diesel engine. The compressor unit is semi-enclosed and air-cooled, and the evaporator is of fan coil type.
⑥ Refrigerant: R404A environmentally friendly type.
