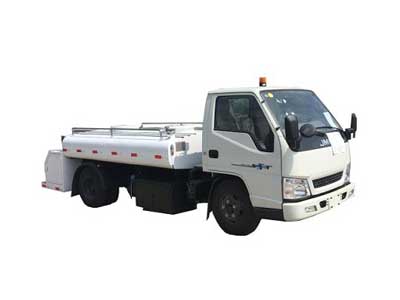

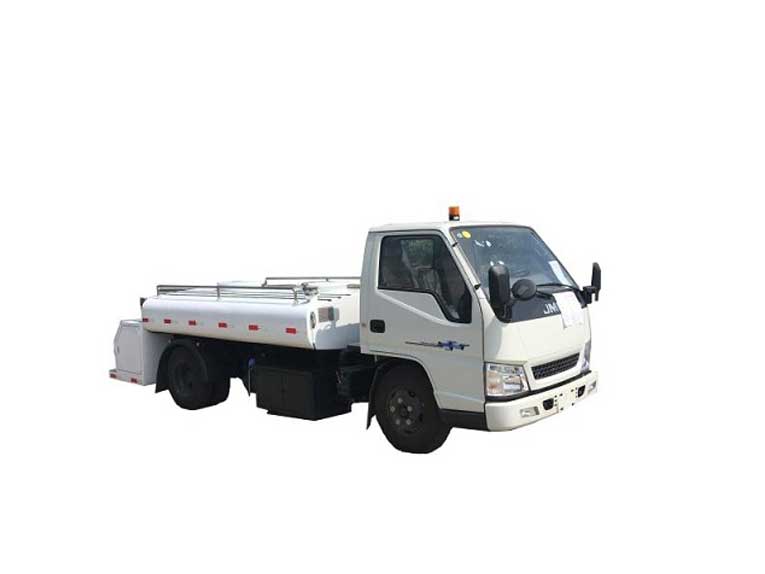

Aircraft Clean Water Truck (Diesel Type) Jiangling JX1061TG25 National V Manual Transmission Class II Chassis, the company has made partial modifications according to product design. The rear end of the main beam is welded with a work platform frame. On the left side of the platform frame is a ladder, which is used for workers to walk on the tank for maintenance and sanitation cleaning. On the right side of the platform frame is a clean water pipe conveying device. On the right side of the main beam, there is a water pump, inlet pipe, hydraulic pump, and hydraulic accessories. On the left side of the main beam, there is a diesel tank and hydraulic oil tank.
Aircraft Clean Water Truck (Diesel Type) is designed as a rear mounted lifting platform with a large capacity water tank in the middle. The chassis cab of this product is a flat head, single row seat, two door type, with two passengers; The driving type is 4 × 2, and the capacity of the clean water tank is 4.0m ⊃3;， The maximum flow rate of clean water supply is>130L/min.
Aircraft Clean Water Truck (Diesel Type) technical parameters
verall dimensions of the vehicle(length x width x height): 6530×1900×2150
External dimensions of the container(length x width x height) :3200×1900×760
Clear water tank capacity :4000L
Chassis Model: JX1061TG25
Engine model :JX493ZLQ5
Vehicle curb weight: 2950kg
Front axle load (unloaded/fully loaded) :1040kg / 1140kg
Rear axle load (unloaded/fully loaded): 1910kg /3910kg
Total water tank weight when fully loaded :6950kg
Fuel consumption per 100 kilometers: ≤12L
Outer diameter of the channel circle: 14000 mm
Departure angle: 11°
Approaching angle: 24°
Ground clearance :205mm
Clear water supply pressure: 0.345MPa
Hydraulic system working pressure :10MPa
Hydraulic oil tank capacity :78L
Hydraulic oil model: 32#Aviation ground hydraulic oil
Diesel tank capacity 100L
Tire Size: 7.00R16
Voltage: 12V（Two batteries connected in series)
