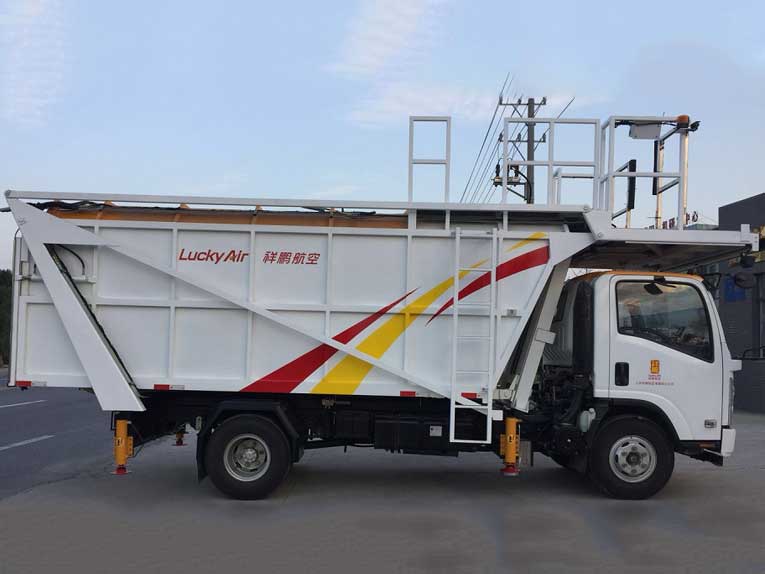

The chassis of Garbage Collection Truck is modified with Qingling Type II automobile chassis, and the volume of garbage collection truck is 16.5m3. The rated load capacity is 1.9 tons. The box body tilts as the platform rises. It is suitable for use in models such as A300, A310, A320, A330, A340, B737, B747, B757, B767, and B777
Garbage Collection Truck body is composed of skeleton, skin, lid and door, with an effective volume of 16.5m3. Rectangular steel welded parts are used for the skeleton, and the skin on the side and top is 1.2mm thick stainless steel plate, which is fixed on the inside of the skeleton with rivets. The bottom surface skin is composed of 1.5mm stainless steel material and 1.5mm stainless steel filter screen. The function of the filter screen is to filter out the water in the garbage and let it flow through the pipeline to the sewage tank installed on the subframe. There is a garbage disposal hatch of 1540×1100 opened on the upper front of the box. The box cover that matches it is formed by processing a single piece of checkered plate and is matched with the box opening frame. It can be opened or closed by the drive of the oil cylinder. The opening at the rear of the box is 2000×1800, and it is equipped with a closed box door operated by a hydraulic cylinder, with a maximum opening Angle of 68°.
Garbage Collection Truck is configured with six parameters
Chassis model: QL1070BUKAY
The volume of the garbage bin (m3) : 16.5
Permitted garbage loading mass (kg) : 1900
Platform working height (mm) : 2200-5800
Front platform telescopic range (mm) : 0-800
Maximum flipping Angle (°) of the trash can: 35
Overall dimensions (length × width × height) (mm) : 7985×2260×3500
Curb weight (kg) : 5500
Engine model: 4KH1CN6LB
Engine emissions: Exhaust pollutants meet the limit requirements of Stage VI of GB 17691-2018, and exhaust smoke meets the requirements of GB 3847-2018
Transmission model: MSB-5SM
