Product standard of Aircraft Ground Support Equipment Water Service Truck
Reference materials for IATA AHM 905 Civil aircraft apron support Equipment
Basic Requirements for Ground Support Equipment at IATA AHM 910 Airport
IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
MH/T 6014-2018 aircraft clear water tanker
AC-137-CA-2015-20R1 General Technical Requirements for Ground Service Equipment of Electric Aircraft
GB/T 18488-2006 Electric Motors and Their Controllers for Electric Vehicles
GB/T 24347-2009 DC/DC Converter for Electric Vehicles
GB/T 18384-2001 Safety Requirements for Electric Vehicles
GB/T 18487-2001 Conductive Charging System for Electric Vehicles
GB/T 20234-2015 Connecting Devices for conductive Charging of Electric Vehicles
GB/T 27930-2011 Communication Protocol between Off-board Conductive Chargers and Battery Management Systems for Electric Vehicles
DB11/Z993-2013 Technical Specification for Remote Service and Management System of Electric Vehicles
The battery adopts CATL lithium iron phosphate battery with a capacity of 106.95Kwh. The vehicle is equipped with four battery boxes, with two on each side placed up and down. It is also equipped with an automatic fire extinguishing device. Each battery box is separately equipped with a maintenance switch. During maintenance or welding, the maintenance switch needs to be unplugged to prevent personal safety and equipment damage. It is also equipped with an automatic fire extinguishing device.

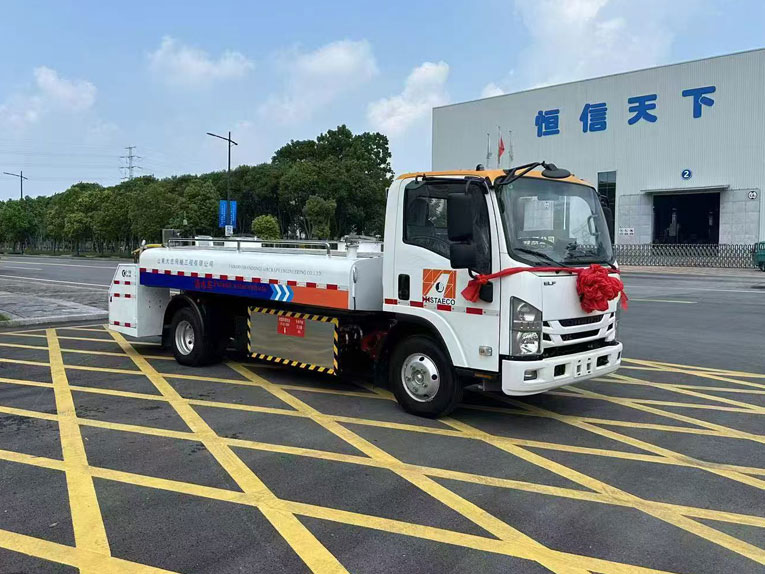

The technical parameters of the Aircraft Ground Support Equipment Water Service Truck configuration seven
Drive motor model: YTD060W23
Model of the drive motor controller: KTZ50X35S
Energy storage device model: L173TB2
Water tank capacity (L) : 5100
Water supply flow rate (L/min) : 235
Water supply pressure (MPa) : 0.25-0.35
Curb weight (kg) : 4150
Overall dimensions (length × width × height) (mm) : 6955×2150×2250
Maximum speed (km/h) : 90
Range (km) : 318
Chassis model: QL1070BEVECHA2Y
Motor pump model: JSTY5060GQSE-1002002
Motor pump controller model: JSTY5060GQSE-1002001
Total energy storage device (kWh) : 106.95 106.95 106.95 96.77 96.77 96.77 96.77
Workbench lifting height (mm) : 390-3100
