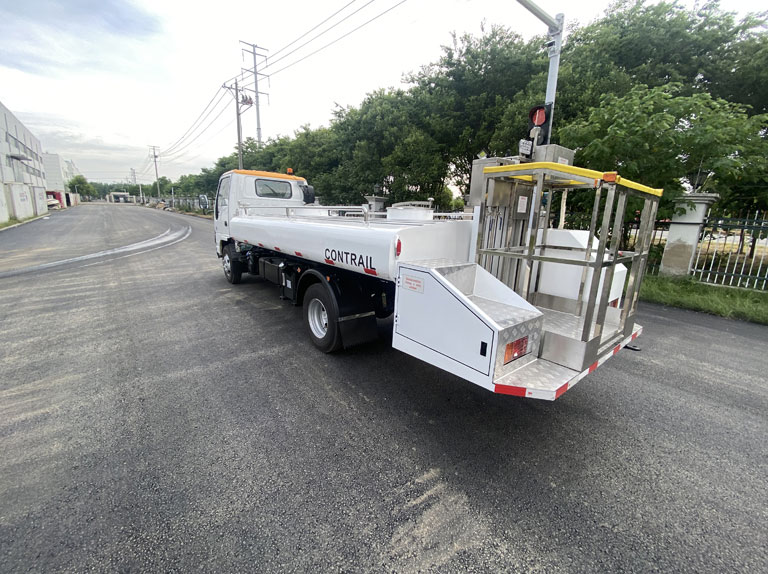

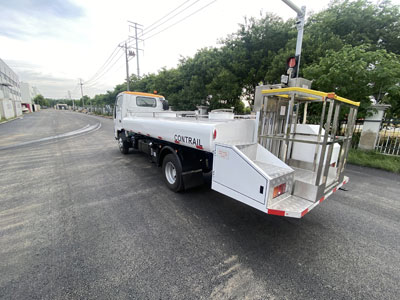

Aircraft Propelled Water Serving Truck clear Water tank volume is 4.0 m after, for Water to flow for p 150 / min, platform height from the ground 400 mm - 3000 mm. Aircraft Propelled Water Serving Truck is suitable for the use of A300, A310, A318, A319, A320, A330, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other aircraft except Airbus A380 aircraft.
Aircraft Propelled Water Serving Truck Adjustable speed limiter (≦25KM/H)
The use of microcomputer program control to achieve the maximum driving speed of the effective control, in order to avoid the safety risks brought by speeding, but also to ensure the free movement of the accelerator pedal within the speed limit.
Speed limit range: The system commonly used speed limit range is: 10 to 160 km/h Settings.
Water Service Truck product features
(1) GPS positioning speed measurement;
(2) can intelligently configure the original vehicle speed signal;
(3) It has the function of forcing speed limit after overspeed;
(4) Speed limit buffer time can be freely set by the customer;
(5) Working voltage range DC12V ~ 28V;
(6) Working low power consumption: only 5w.
Water Service Truck technical parameters
(1) The applicable ambient temperature is -35℃ to 85℃;
(2) Apply to the road level 3 and above the level 3 standard;
(3) Speed limit range: 10-160 km/h;
(4) Speed limit deviation: ± 2km/h;
(5) Anti-vibration performance indicators: frequency 20-50HZ, acceleration 1g;
Aircraft Propelled Water Serving Truck configuration five
Engine type :4KH1CN5HS
Tank volume (L) :4000
Water supply flow (L/min) :≥150
Water supply pressure (MPa) :0.345
Maintenance weight (kg) :4160
Overall dimensions (L x W x H) (mm) :7265x2140x2295
Maximum speed (km/h) :80
Other features: Optional lifting platform
Chassis model :QL1070A5KAY
Working platform lifting height (mm) :380-3740
Water tank material/thickness (mm) :S31603/4.5mm
Channel circle Outer circle diameter (mm) :17000
Engine emissions: exhaust pollutants meet GB 17691-2005 Stage V limit requirements, exhaust smoke meet GB 3847-2005 requirements
