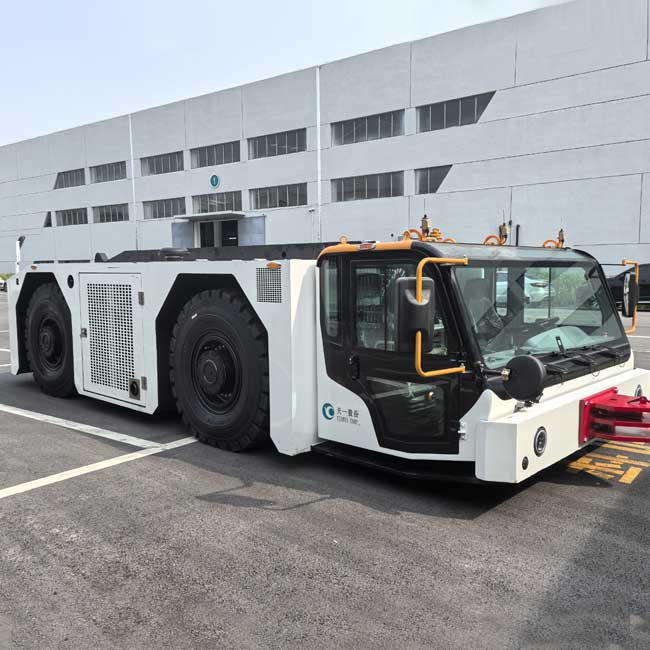

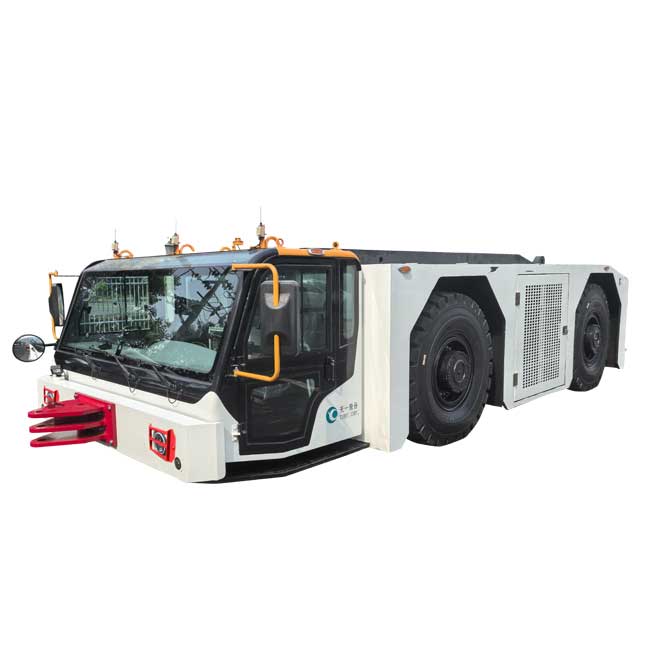

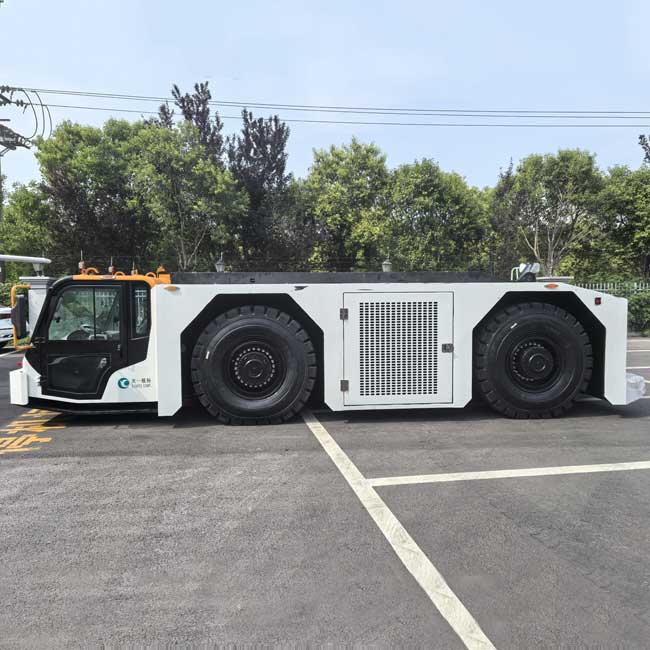

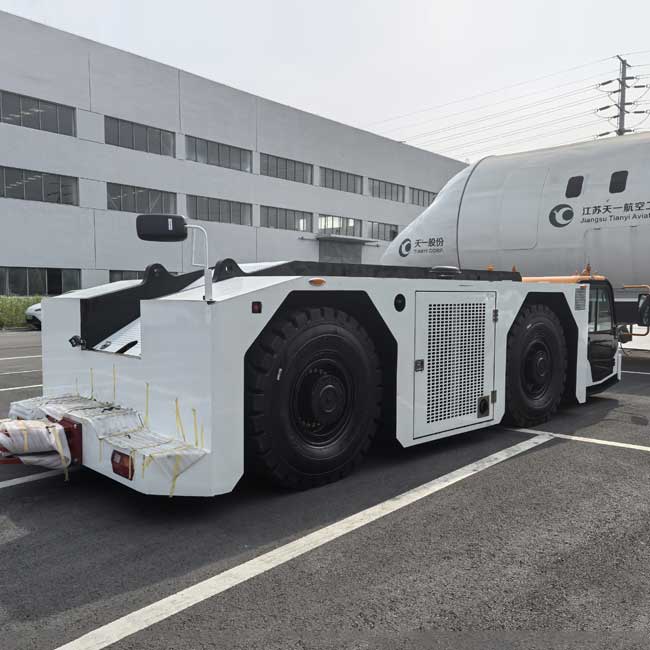

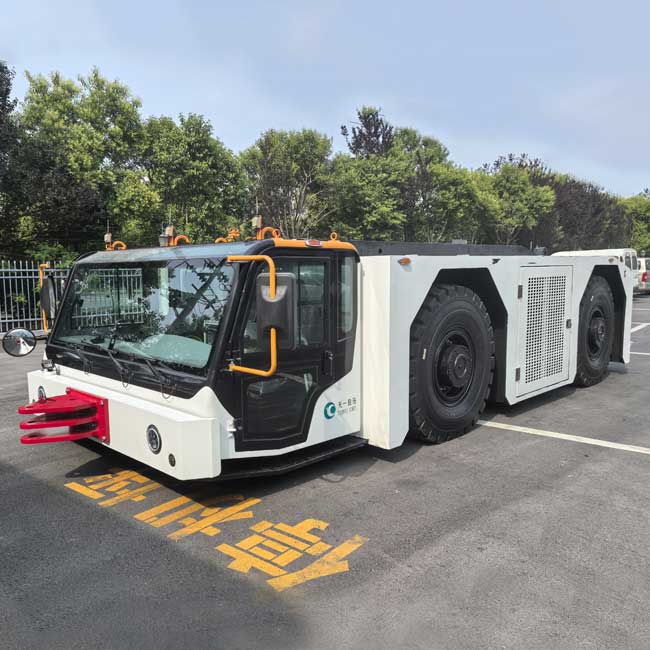

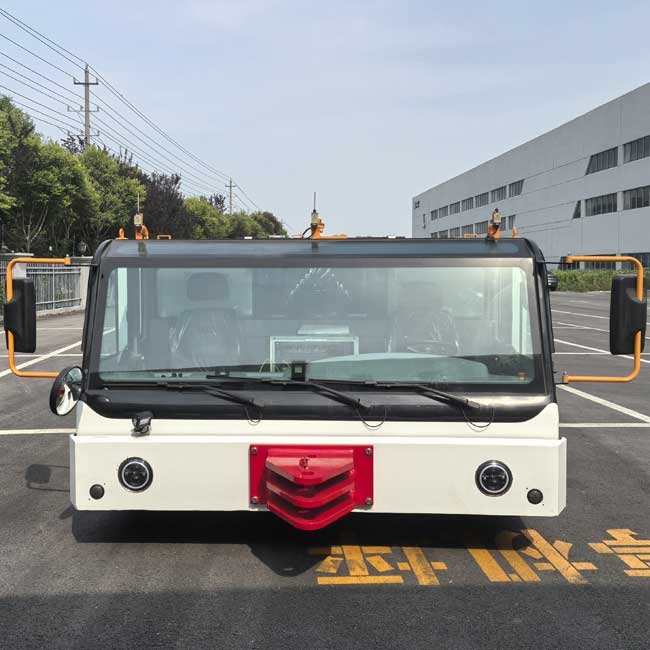

Aircraft Pushback Tractors

Diesel Aircraft Pushback Tractor is a kind of full-bridge drive, all-wheel steering, engine as the power of the medium tractor. Maximum tractive force (kN) : 320

320KN Diesel Aircraft Pushback Tractor Main technical parameters

Engine type: QSB6.7 T3-C260

Transmission model: 6WG-210

Brake system: service brake, parking brake

Brake form: hydraulic, double circuit, accumulator

Steering system: front wheel, four wheel, crab line, rear wheel

Steering type: Hydraulic, twin-bridge,

Wheelbase (mm) : 3250mm

Approach Angle (°) : 7

Departure Angle (°) : 9

Maximum net power: 194KW(2200r/min)

Maximum tractive force (kN) : 320

Maximum traction mass (kg) : 450000

Overall dimensions (L * W * H) (mm) : 8150*2950*1750 (including front and rear traction plugs)

Minimum turning diameter (mm) : 17,000 (two wheels) / 11,000 (four wheels)

Height of cab from ground (mm) : 1800

Cab lift height (mm) : 2350

Minimum ground clearance (mm) : 200

Maximum speed (km/h) : 35

Engine emissions: Meet GB 20891-2014 third stage limit requirements
