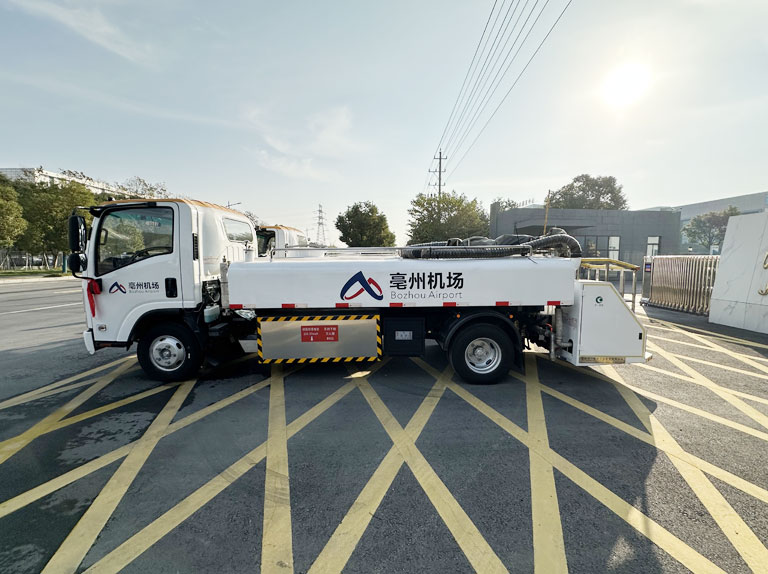

Aircraft sewage truck (electric) configuration 7
Clean water tank volume (L) : 1900
Volume of sewage tank (L) : 3600 (with vacuum pump) /3800 (without vacuum pump)
Water supply flow (L/min) : 235
Water supply pressure (MPa) : 0.25~0.35
Quality (kg) : 4750
Overall dimensions (length × width × height) (mm) : 6965×2300×2250
Maximum speed (km/h) : 90
Driving range (km) : 315
Chassis model: QL1070BEVECHA2Y
Circulation tank volume (L) : 200 (with vacuum pump) /0 (without vacuum pump)
Drive motor model: YTD060W23
Drive motor controller model: KTZ50X35S
Motor pump model: JSTY5060GQSE-1002002
Motor pump controller model: JSTY5060GQSE-1002001
Energy storage device assembly model: L173TB2
The total energy of the energy storage device (kWh) : 106.95
Working platform lifting height (mm) : 390 ~ 3100 400~3000 400~3000 400~3000 400~3000 400~3000 440 ~ 3090 440 ~ 3090
Test temperature conditions (℃)
test temperature condition: (° C) Meets the requirements
JSTY5060GWSE aircraft sewage truck (electric type) is composed of chassis assembly, lifting workbench assembly, cleaning, sewage box, hydraulic system, electrical system, etc.
Cleaning, sewage tank, circulating water tank assembly
The water tank is made of 5mm stainless steel 1Cr18Ni9Ti/5 stainless steel plate, and the box is composed of three completely isolated water tanks: circulation water tank: 200L, clean water tank: 1900L, sewage tank: 3600L. The inside of the water tank is equipped with a stainless steel anti-swing plate with a thickness of 4mm, to avoid shaking when the vehicle is running after the water tank is added, and the welding is firm, the layout is reasonable, and it is easy to clean. The top of the water tank is separately provided with an air vent valve. The two water tanks and the car girder are fixed in the form of rubber cushion connection, which reduces the vibration of the box when the car is driving.
