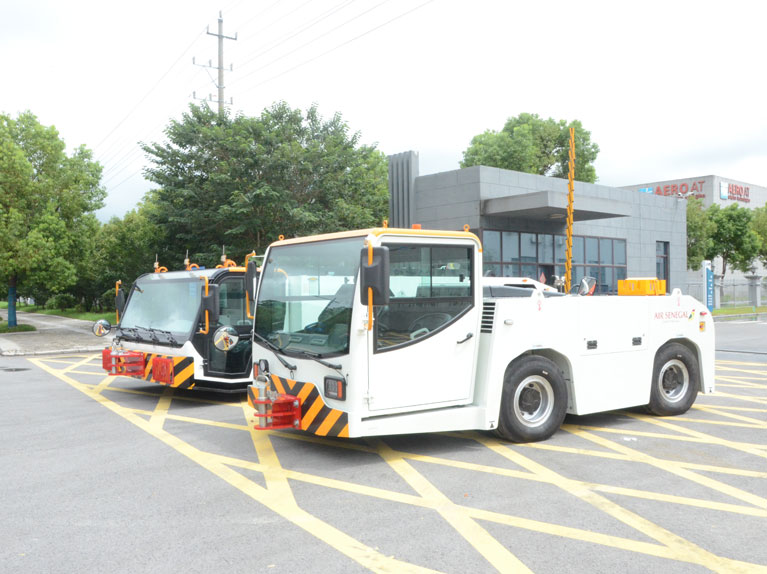

Aircraft tractors

Aircraft tractors can be used for A321-200, B737-700/800/900, A320, A319,

Push and tow services are provided for small and medium-sized aircraft such as MD-80, MD-90 and MD82. This product weighs itself

15 tons, capable of towing aircraft with a maximum takeoff weight of no more than 160 tons

Aircraft tractor parameters

Overall dimensions: 5360X2100X2020mm

Minimum turning radius: 3400mm(four-wheel), 5800 (two-wheel)

Wheelbase: 2150mm

Ground clearance: 200mm

The total weight of the vehicle is 15,100 kilograms

Maximum traction force: 120KN

Maximum traction mass: 160 tons

Maximum speed: 25km/h

Engine: Deutz engine

Maximum output power: 74.9kw/2300rpm

Maximum output torque: 390Nm/1400rpm

Transmission: DANA T12000

Aircraft tractors are optional

9-ton configuration

12-ton configuration

Heating and cooling air conditioner
