Aircraft water vehicle (electric) configuration of the seven main performance indicators
Drive motor model: YTD060W23
Drive motor controller model: KTZ50X35S
Energy storage device model: L173TB2
Tank volume (L) : 5100
Water supply flow (L/min) : 235
Water supply pressure (MPa) : 0.25~0.35
Quality (kg) : 4150
Overall dimensions (length × width × height) (mm) : 6955×2150×2250
Maximum speed (km/h) : 90
Driving range (km) : 318
Chassis model: QL1070BEVECHA2Y
Motor pump model: JSTY5060GQSE-1002002
Motor pump controller model: JSTY5060GQSE-1002001
The total energy of the energy storage device (kWh) : 106.95
Workbench lifting height (mm) : 390~3100

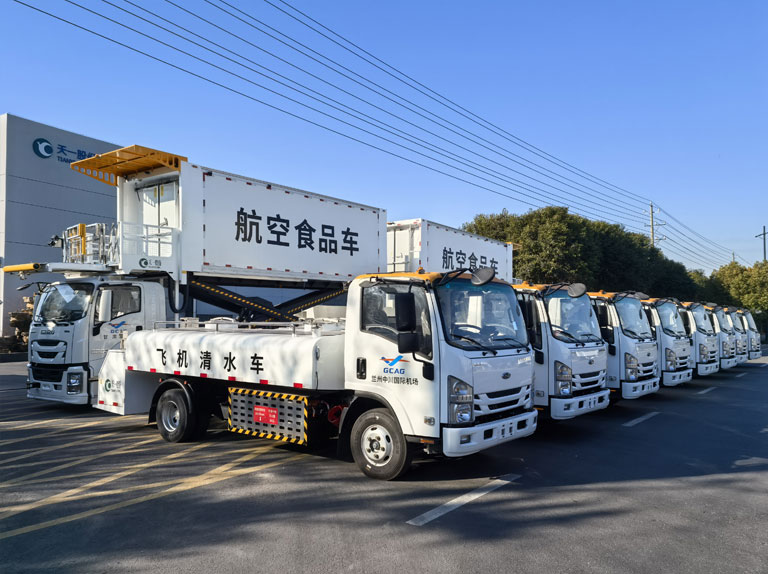

The aircraft water truck (electric type) is designed as a rear lifting work platform and a large-capacity water tank in the middle. Among them, the lifting platform is equipped with night operation lights to facilitate night operation. The chassis cab of the product is flat head, single row seat, two-door type, and the occupant is 2 people; The drive type is 4×2, the clean water tank volume is 5100L, and the water supply flow is 235L/min.
The clean water box shell is made of high quality 1Cr18Ni9Ti/4 stainless steel plate with a thickness of 4mm and a capacity of 5100L. It is made of food-grade stainless steel and is welded with argon arc welding. The interior of the box is welded smoothly and without burrs. The water outlet inside the water tank is equipped with a filter screen, which can protect the pump well. The inside of the water tank is equipped with a stainless steel anti-swing plate with a thickness of 3mm, which can avoid the shaking phenomenon when the vehicle is running after the water tank is added, and the welding is firm, the layout is reasonable, and the cleaning is easy. The top of the water tank is equipped with an air valve, the water tank and the car girder are fixed in the form of rubber cushion connection, which reduces the vibration of the box when the car is driving.
The water tank in cold areas adopts the incubator water tank. The insulation water tank is based on the normal temperature water tank with a layer of 2.5mm thick cold-rolled steel plate, and the foam material is filled with 30mm thick in the middle to keep the water tank warm and prevent freezing in winter.
The upper end of the water tank is provided with a water inlet, which is provided with a tight sealing cap. There is a clear and intuitive water level
