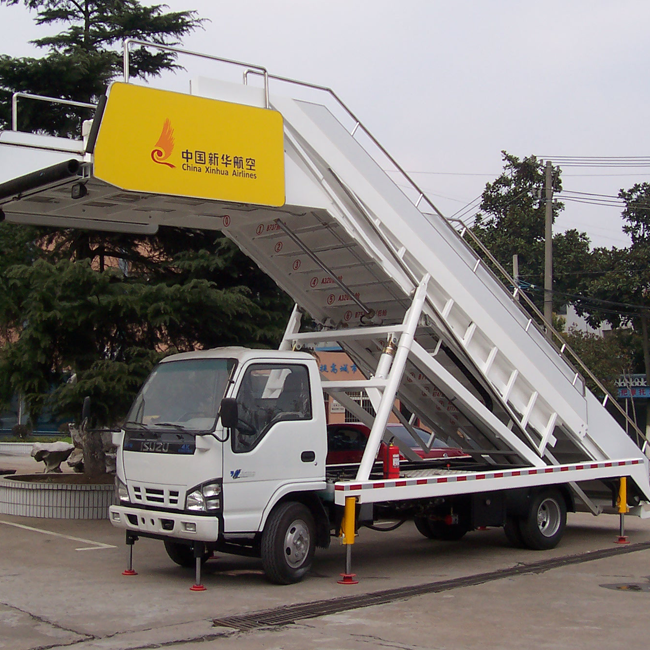

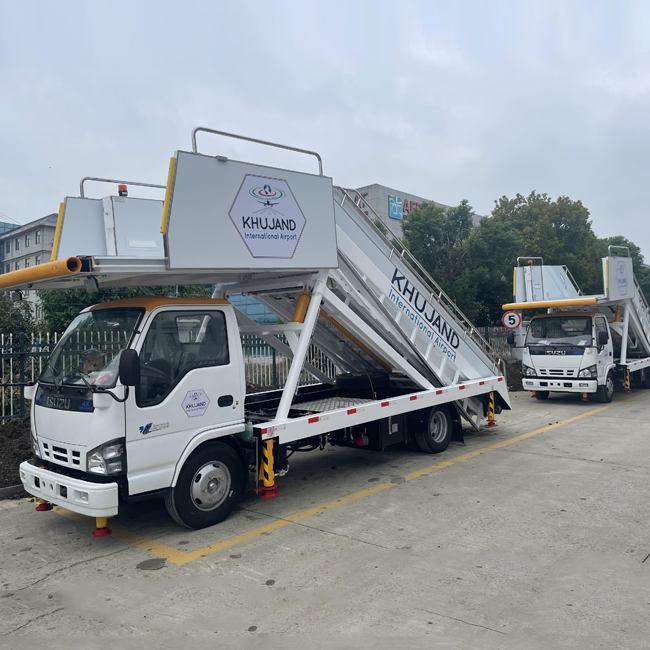

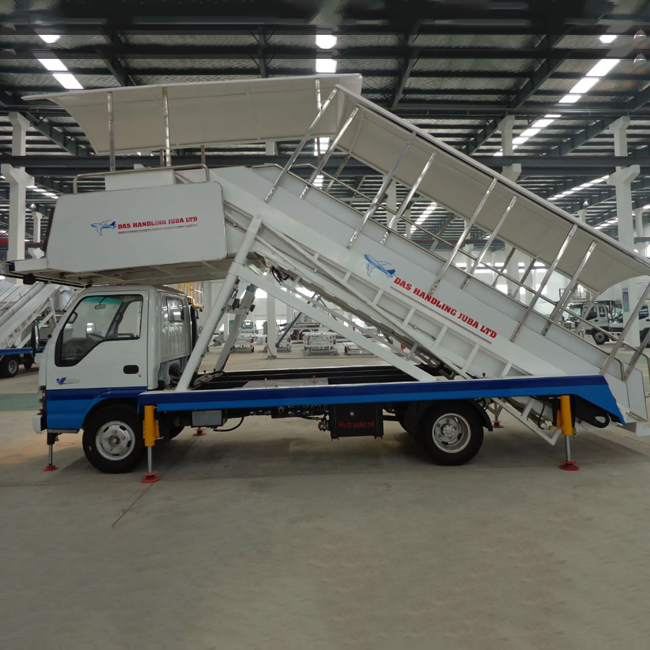

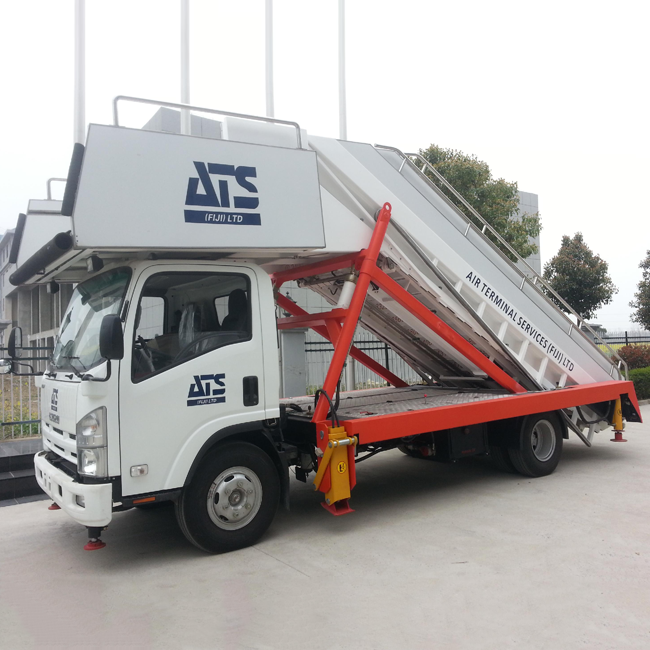

2.4-5.8m Aircraft Passenger Stairs

The designed height off ground for WTJ5060JKT mobile passenger stair is from 2370mm to 5630mm, which could be slightly adjusted for height tolerance between passengers stair and hatch
Availability:
Product Description

WTJ5060JKT

Mobile Passenger Stairs


. Products introduction

The designed height off ground for WTJ5060JKT mobile passenger stair is from 2370mm to 5630mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777.

National patent No. ZL 2007 2 0039192.2


II.  Standard:

ZB/T50 001-87 Special vehicles--Engineering approval evaluation program

JB/T5943—91 welding general technical specification for construction machinery

IATA AHM—913 <Function requirement of GSE>

IATA AHM—910 <Function requirement of GSE>

IATA AHM—915 Standard control device

SAE--ARP836A Design of passenger steps and safety standard


Ⅲ.  Major technical performance parameter

Chassis type

ISUZU QL1070A5KAY

Engine

Type

ISUZU 4KH15HS

Max power

110kW/2600rpm

Overall dimension(length×width×height)mm

7655×2500×3830

Wheelbase mm

3815

Curb weight kg

7850

Ground clearance mm

Min height

2400

Max height

5800

Shrinking quantity of shrinking platform mm

0--300

Fixed platform(length×width)mm

2800×1500

Ladder step (width) mm

1500

Ladder step (height) mm

180

Ladder step (length) mm

270

Fixed ladder

15

Lift ladder

13

Turnover ladder

1

Maximum load-bearing (person)

60
