2.4-5.8m Self-propelled Passenger Step

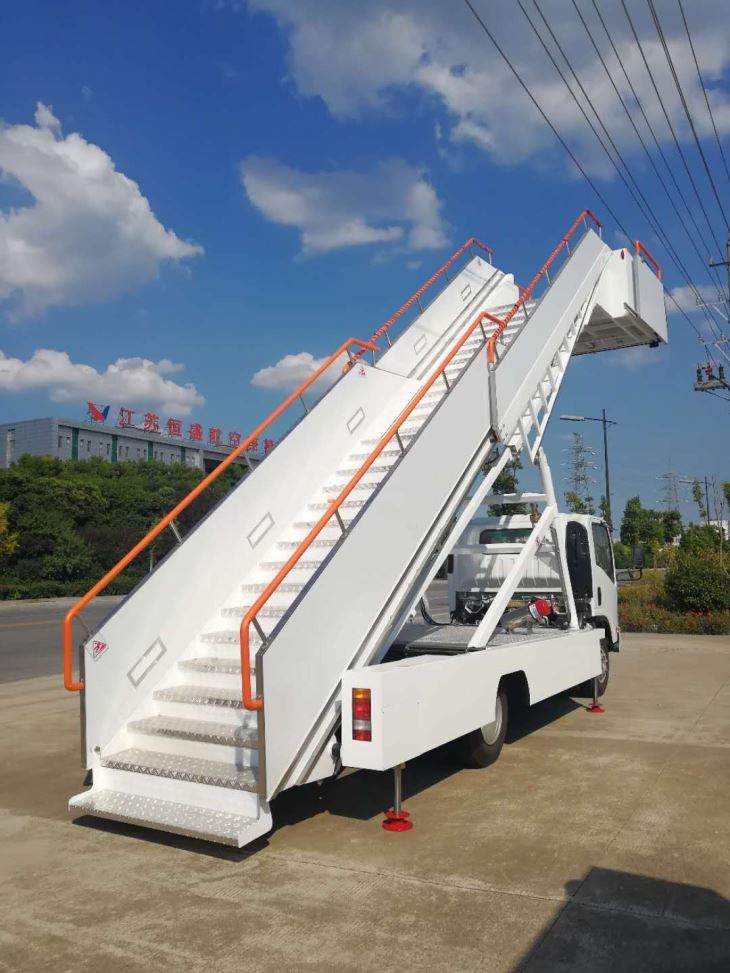

The designed height off ground for WTJ5060JKT mobile passenger stair is from 2370mm to 5630mm, which could be slightly adjusted for height tolerance between passengers stair and hatch, height of stair platform could reach 5800mm after slight adjustment, this type of passengers stair could be applied for A310, A320, A330, A340, B737, B747, B757, B767, B777.
Availability:
Product Description

Standard:

ZB/T50 001-87   Special vehicles--Engineering approval evaluation program

JB/T5943—91 welding general technical specification for construction machinery

IATA AHM—913            <Function requirement of GSE>

IATA AHM—910            <Function requirement of GSE>

IATA AHM—915            Standard control device

SAE--ARP836A             Design of passenger steps and safety standard


No.

Type   and description

Unit

Qty

Manufacturer

1

Chassis parts

1.1

ISUZU QL1100A8KAY

piece

1

ISUZU

2

Hydraulic system

2.1

Lifting cylinder

piece

1

China

2.2

Arm-brace cylinder

piece

6

China

2.3

Platform cylinder

piece

2

China

2.4

Magnetic valve

piece

5

China

2.5

EF4-50 Hydraulic air filter

piece

1

China

2.6

YN-60 0—25Mpa pressure gauge

piece

1

China

2.7

LXZ-160X80LY oil filter

piece

1

China

2.8

YWZ-100T Liquid thermometer

piece

1

China

2.9

Hand pump

piece

1

China

3

Electric system

3.1

Travel switch

piece

4

China

3.2

Rita anti-collision alarm system

piece

1

China

3.3

Height-range indicator for lift platform

piece

1

China

3.4

Alarm lamp

piece

1



Chassis   type

ISUZU   QL1100A8KAY

Engine

Type

ISUZU   4KH-TC51

Max   power

110kW/2600rpm

Overall dimensionlength×width×heightmm

7700×2500×3870

Wheelbase   mm

3815

Curb   weight kg

7850

Ground   clearance mm

Min   height

2400

Max   height

5800

Shrinking   quantity of shrinking platform mm

0--300

Fixed   platformlength×widthmm

2800×1500

Ladder   step (width) mm

1500

Ladder   step (height) mm

180

Ladder   step (length) mm

270

Fixed   ladder

15

Lift   ladder

13

Turnover   ladder

1

Maximum   load-bearing (person)

60
