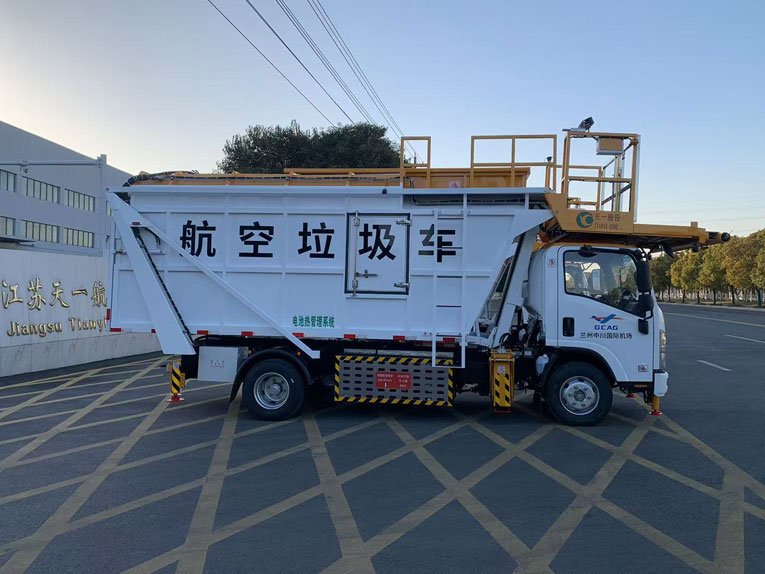

Airport Airplane Aircraft Rubbish Truck is modified from Qingling QL1070BEVECDAY chassis, which can deal with waste on B737, B747, B777, B787, A320 series, A330, A350 and other types of passenger aircraft. It is composed of Qingling QL1070BEVECHA2Y chassis modification assembly, sewage tank assembly, lifting platform assembly, as well as hydraulic system, electrical system, etc. The chassis is equipped with: diesel tank, battery, hydraulic valve group, electrical control box, hydraulic oil tank, fire extinguisher, support feet, sewage tank, taillight and underframe assembly. Battery capacity: 106.95Kwh. Cooling method: natural cooling
The technical parameters of the Airport Airplane Aircraft Rubbish Truck configuration six
Chassis model: QL1070BEVECHA2Y
Drive motor model: YTD060W23
Model of the drive motor controller: KTZ50X35S
Hydraulic motor model: JSTY5060LJCE-10000001
Model of hydraulic motor controller: JSTY5060LJCE-10000002
Model of the energy storage device assembly: L173TB2
Total energy storage device (kWh) : 106.95
Platform working height (mm) : 2400-5800
Overall dimensions (length × width × height) (mm) : 7895×2420×3300
Platform telescopic adjustment range (mm) : 0-600 (short) /0-800 (long)
Rated load of the box body (kg) : 2000
Garbage bin volume (m ⊃3;) : 20
Maximum tilt Angle (°) of the body: 36.5
Maximum speed (km/h) : 80
Range (km) : 310
Curb weight (kg) : 6200
