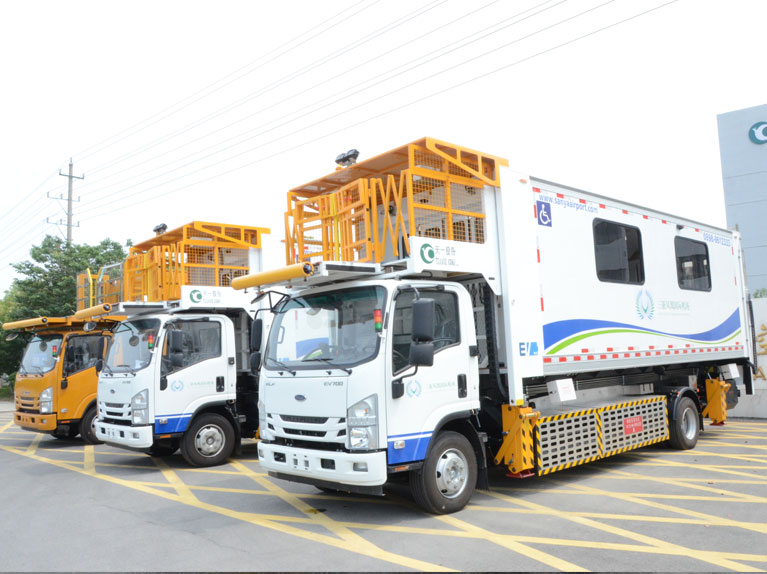

Airport Ambulift

Airport Ambulift mainly consists of: the vehicle chassis, the support foot assembly, the lifting system assembly, the body assembly, the front and rear platform assembly, the hydraulic system and the electrical system, etc.

Airport Ambulift adopts an imported hydraulic system. 90% of the hydraulic components are original imported products. It uses Thermo King air conditioners from the United States, Parker hydraulic pipe fittings, and the interior decoration of the vehicle is made of luxury buses. It is equipped with patented scissors and forks and can be guaranteed to operate continuously for 15 years.

Airport Ambulift offers comfortable and safe boarding services for people with disabilities. The vehicle is equipped with seats, armrests, wheelchair slots and other facilities for safe use. According to different customer needs, the interior decoration of the cabin can be customized and the chassis can be modified.

Platform working height (mm) : 2200-6100

Rated load of the box body (kg) : 4000

Rated load (kg) of the fixed platform: 1700

Rated load (kg) of the activity platform: 1100

Platform telescopic adjustment range (mm) : 0 to 600

Fixed platform dimensions (length × width) (mm) : 2300×2000

The dimensions of the mobile platform (length × width) (mm) : 700×1960

Curb weight (kg) : 10,600

Wheelbase (mm) : 5200

Overall dimensions (length × width × height) (mm) : 9570×2400×3770

Maximum speed (km/h) : 85

Minimum ground clearance (mm) : 180

Driving range (km) : 340

Chassis mode: QL1103BEVEYMAY
