When the Airport baggage belt loader approaches the aircraft by about 5 meters, it stops moving forward. Then, it uses the front and rear lift switches to adjust the height of the conveyor frame front and back to meet the requirements of loading and unloading operations and the height of the aircraft cabin door. After that, it moves slowly towards the aircraft. After the parking is completed, shift the driving gear to P, pull up the handbrake, and use the outrigger lift switch to extend the front outrigger cylinder into place. Then, you can operate the buttons at both ends of the belt frame to carry out the conveyor work of the conveyor belt (the conveyor belt action button will not work when the handbrake is not pulled).

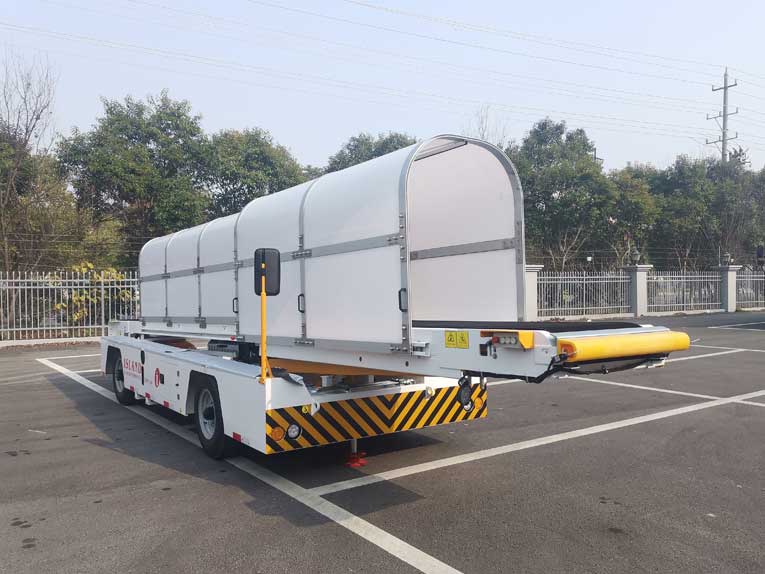

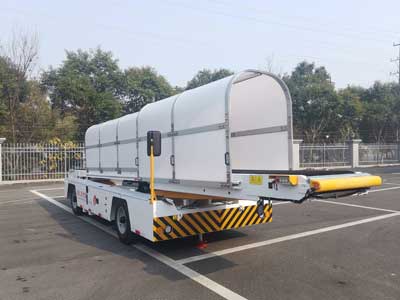

Detailed parameters of the Airport baggage belt loader whole vehicle
The height range of the front end of the conveyor belt is 1200mm to 4300mm
The height range of the rear end of the conveyor belt is 350mm to 1600mm
Conveying bandwidth: 700mm
The maximum uniform load of the conveyor belt is 135 kg /m
Maximum mass of a single piece of goods: 400 kg
The maximum inclination Angle of the conveyor belt is 29°
Conveyor belt conveying speed: 0.2m/s to 0.5m/s
Maximum speed: 30km/h
Minimum stable vehicle speed: ≤3km/h
Wheelbase :2900 mm
Ground clearance: 145 mm
Length × width × height: 8060×2080×1650mm without cab, 8060×2150×2040mm with cab
The curb weight of the entire vehicle: 3250kg without a cab, 3400kg with a cab
