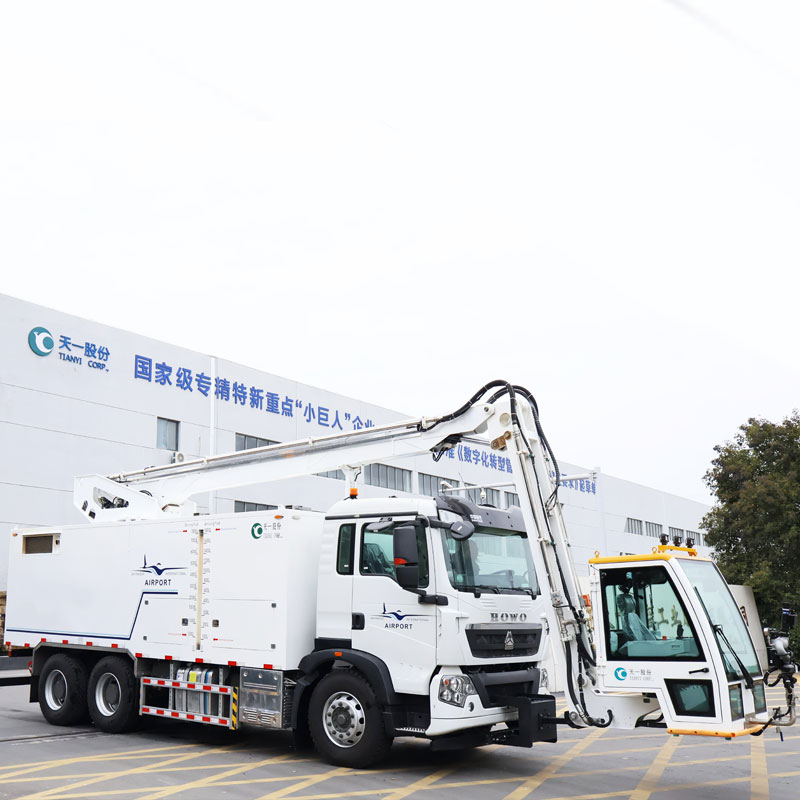

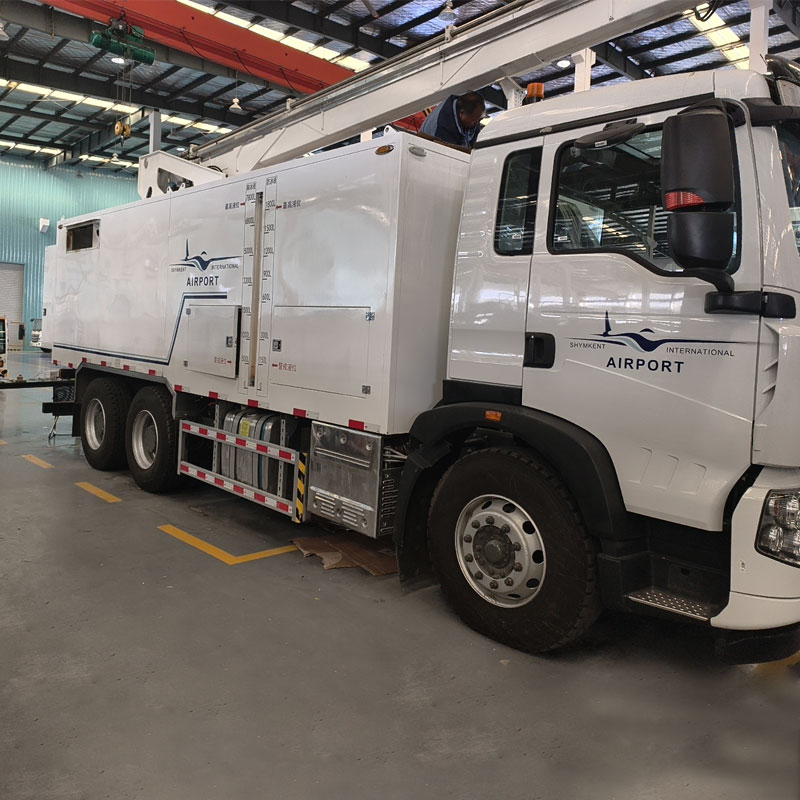

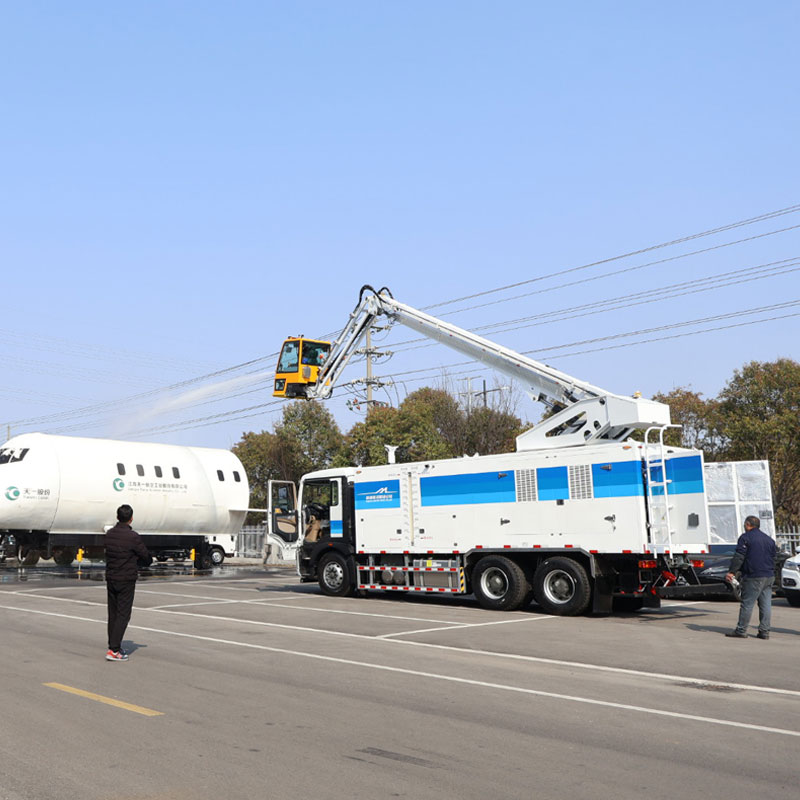

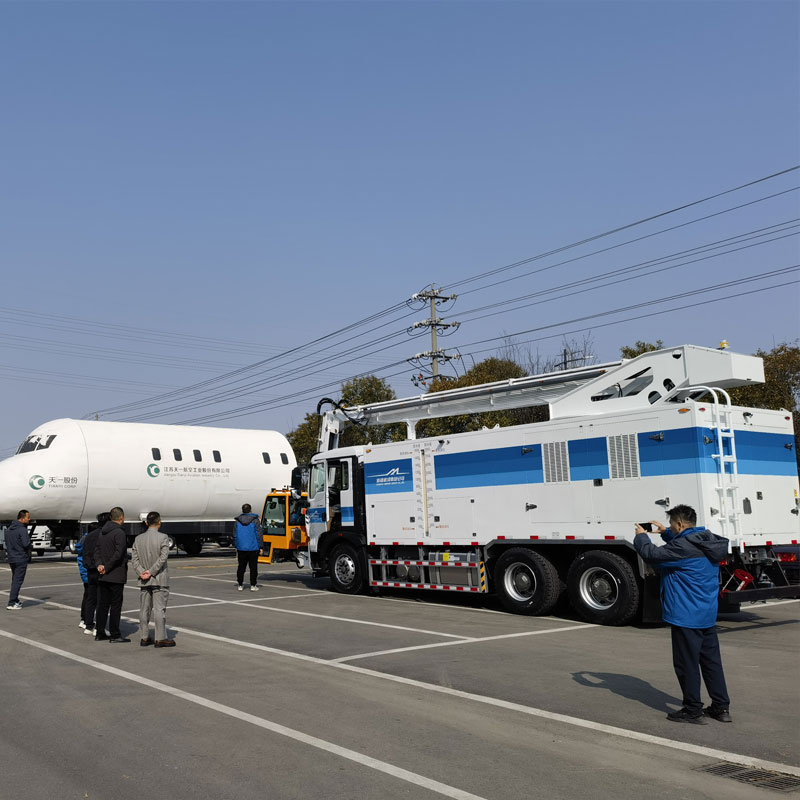

JSTY9600I aircraft deicing vehicle is a new type of aircraft deicing developed by Jiangsu Tianyi Aviation Industry Co., LTD. It mainly carries out deicing operations for aircraft. This type of deicing vehicle is a hot type. This vehicle is developed by adding an operation walking system, a high-altitude operation system, a deicing fluid tank, an engine, a heater, a deicing fluid pump, deicing pipelines, an anti-icing fluid pump, anti-icing pipelines, an electrical control system, a wired intercom system, lighting and alarm systems on the basis of a second-class vehicle chassis. There are two passengers in the cab. The drive type is 6X4. The volume of the deicing liquid tank is 7800 L, the volume of the anti-icing liquid tank is 1800L, the maximum deicing spray flow rate is 230L/min, the maximum operating height is 14.7m, the maximum operating range is 12m, and the maximum designed vehicle speed is 60 km/h.
Technical parameters of JSTY9600I aircraft deicing truck
Chassis model: ZZ1257N464GF1
Engine model for the vehicle: B3.9CS4 150C
The maximum working height (mm) of the working cabin: 14,700
Rated working load (kg) of the working cabin: 160
Liquid tank capacity (L) : Deicing liquid tank: 7800
Anti-icing liquid tank: 1800
heating method: Instant heating
Heating time (min) : < 3
The maximum temperature of the deicing liquid at the outlet of the spray gun (℃) : 85
Lifting speed of the working cabin (m/s) : 0.65
Ejector working pressure (Mpa) : 1.4/0.5
Maximum flow rate of the injector (L/min) : 230 (deicing) / 100 (anti-icing)
Overall dimensions (length × width × height) (mm) : 11100×2500×3800
Operation driving speed (km/h) : 5
Maximum speed (km/h) : 60
Curb weight (kg) : 17,770
Chassis engine model: MC07H.35-60
Chassis engine emissions: Exhaust pollutants meet the 6b limit requirements of GB17691-2018, and smoke density meets the limit requirements of Stage a of the Free acceleration method in GB3847-2018.
