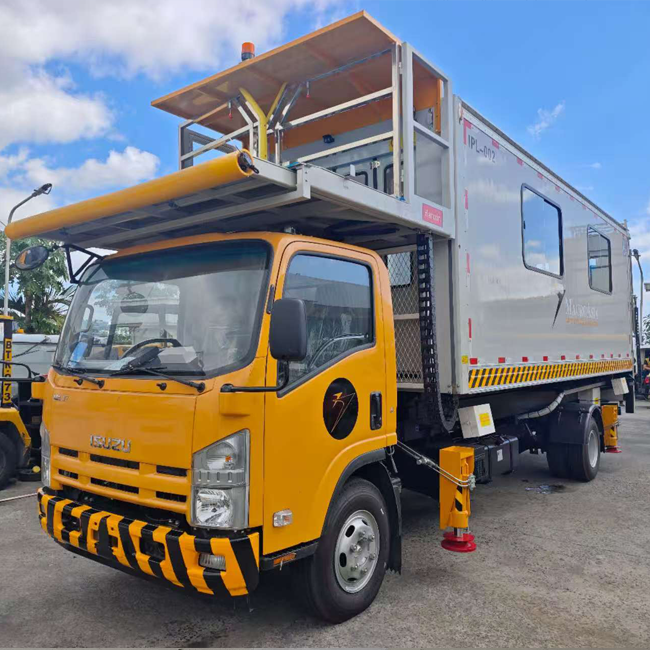

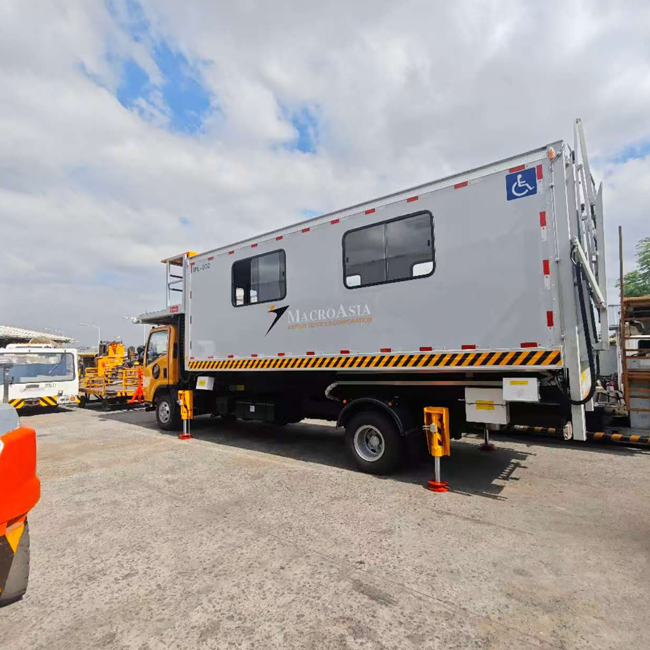

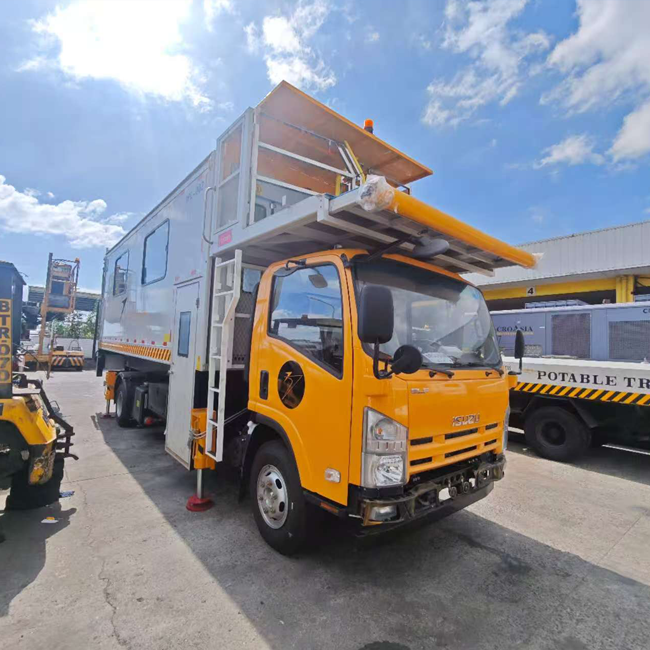

Diesel ambulift is mainly composed of: vehicle chassis, support foot assembly, lift fork assembly, trunk assembly, front and rear platform assembly, hydraulic system and electrical system
Diesel ambulift configuration four Main performance index
Engine type: 4HK1-TC51
Platform working height (mm) : 2500 ~ 5800
Body load rating (kg) : 2500
Fixed platform load rating (kg) : 1200
Mobile platform load rating (kg) : 600
Adjustment range of the left and right sides of the platform (mm) : 0 to 600
Platform scaling adjustment range (mm) : 0 to 500
Fixed platform dimensions (L × W) (mm) : 1200×2280
Mobile platform dimensions (length × width) (mm) : 900×1300
Quality (kg) : 11250
Overall dimensions (length × width × height) (mm) : 8990×2460×3770
Chassis model: QL1100A8PAY
Engine emissions: exhaust pollutants meet GB 17691-2005 stage V limit requirements, exhaust smoke meet GB 3847-2005 requirements
Body size (length × width × height) (mm) : 6500×2300×2300
Transmission model: Allison2500
