Product standard:
GB/T31028-2014《disabled/incapacitated passenger boarding vehicles》
JG5099-1988《Aerial work machinery for safety rules》
GB7258-2004《Technical specification for safe operation of motor vehicle》
IATA AHM910《Basic Requirement for Airport Ground Equipment》
IATA AHM 913《Basic Safety Requirement for Airport Ground Equipment》
IATA AHM 915 《Standard control device》
IATA AHM979《Function specification of disabled/incapacitated passenger boarding vehicles》

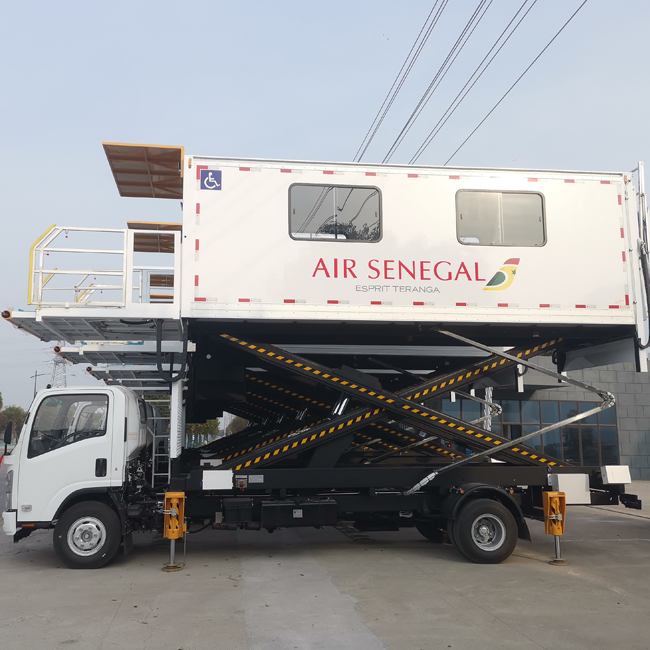

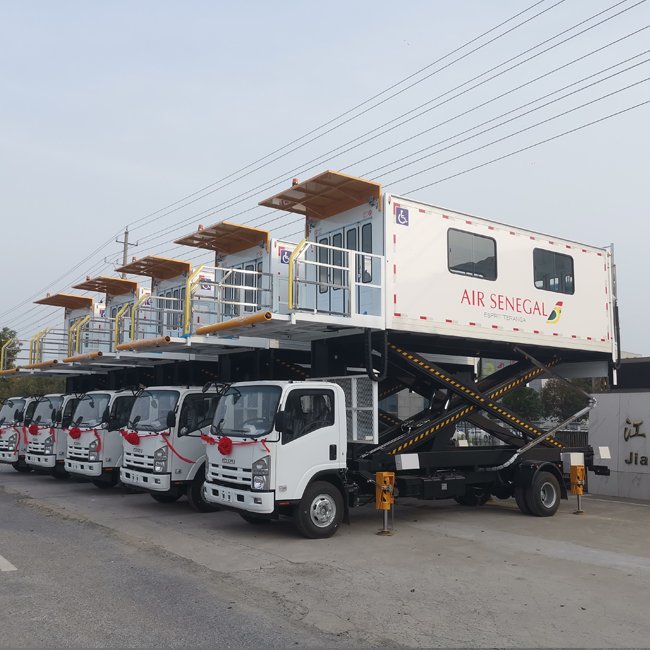

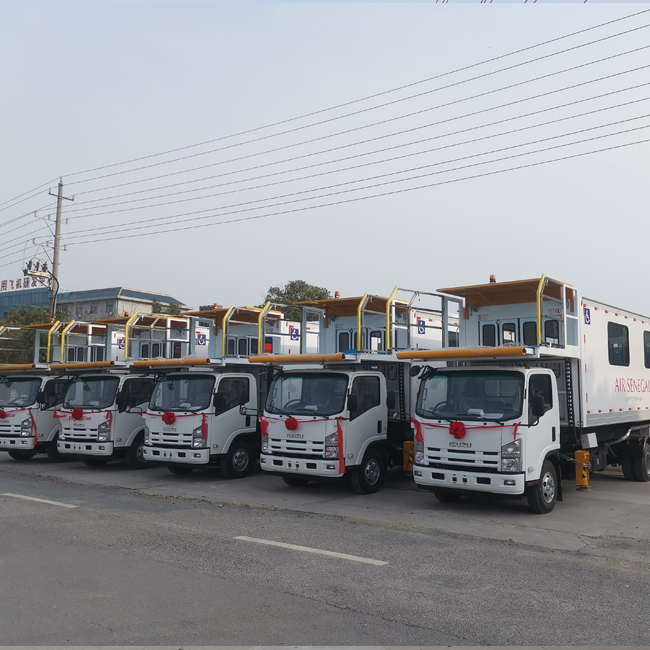

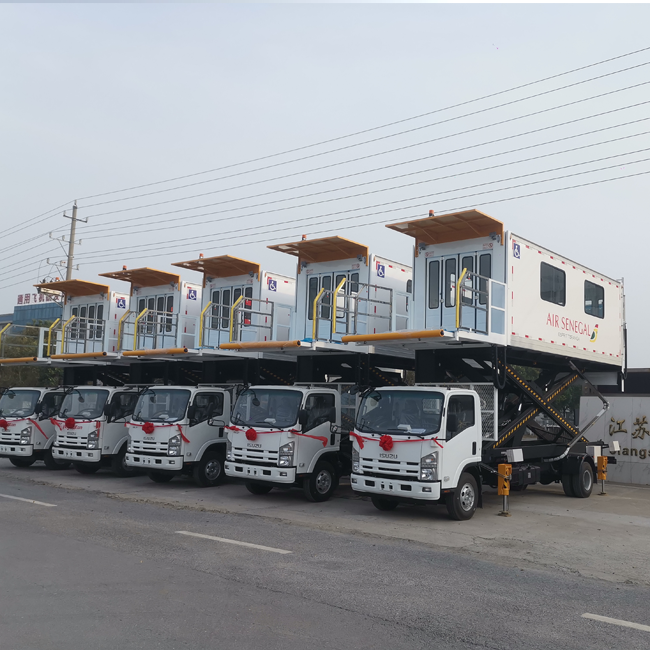

Aircraft PRM Medical Lift configuration five Main performance index
Engine type: 4HK1-TC51
Platform working height (mm) : 2500 ~ 5800
Body load rating (kg) : 2500
Fixed platform load rating (kg) : 1200
Mobile platform load rating (kg) : 600
Adjustment range of the left and right sides of the platform (mm) : 0 to 600
Platform expansion adjustment range (mm) : 0 to 600
Fixed platform dimensions (L × W) (mm) : 1400×2280
Mobile platform size (length × width) (mm) : 1200×1200
Quality (kg) : 11250
Overall dimensions (length × width × height) (mm) : 9540×2460×3770
Chassis model: QL1100A8PAY
Engine emissions: exhaust pollutants meet GB 17691-2005 stage V limit requirements, exhaust smoke meet GB 3847-2005 requirements
Body size (length × width × height) (mm) : 6500×2300×2300
Transmission model: MLD-6Q
