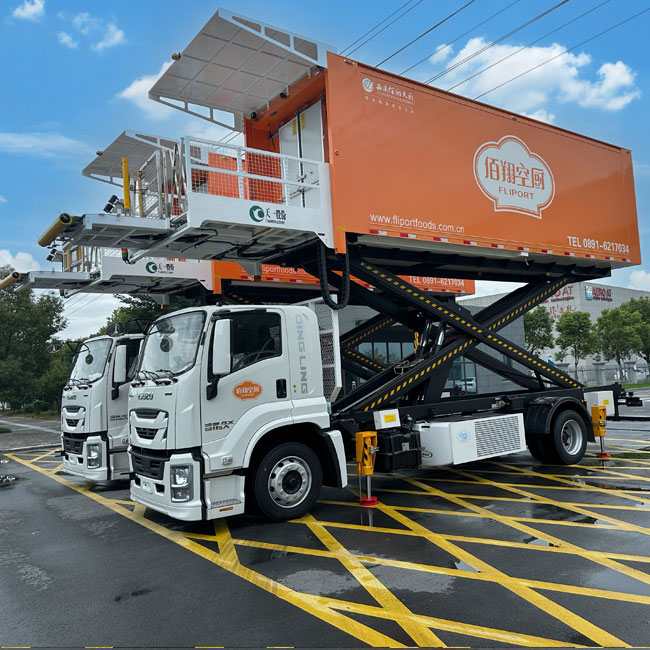

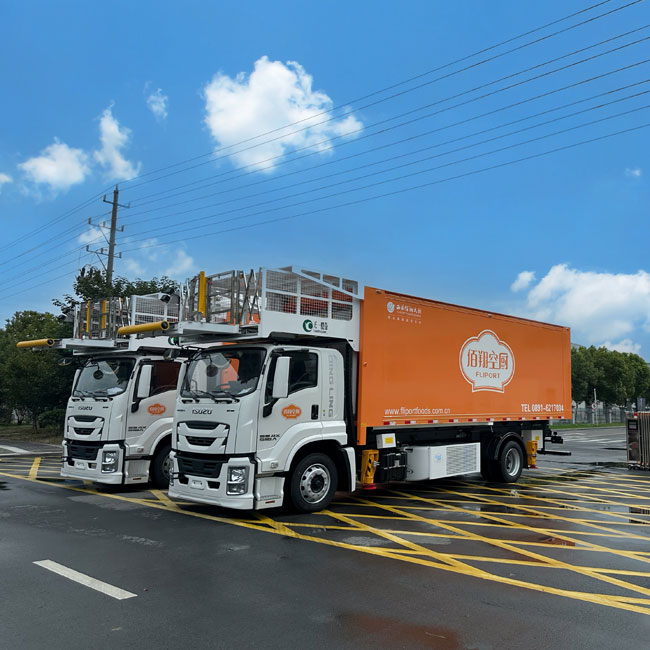

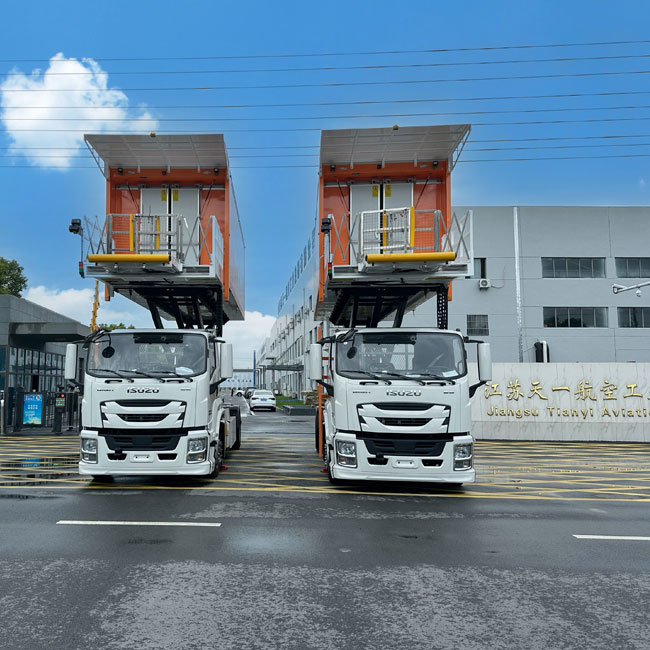

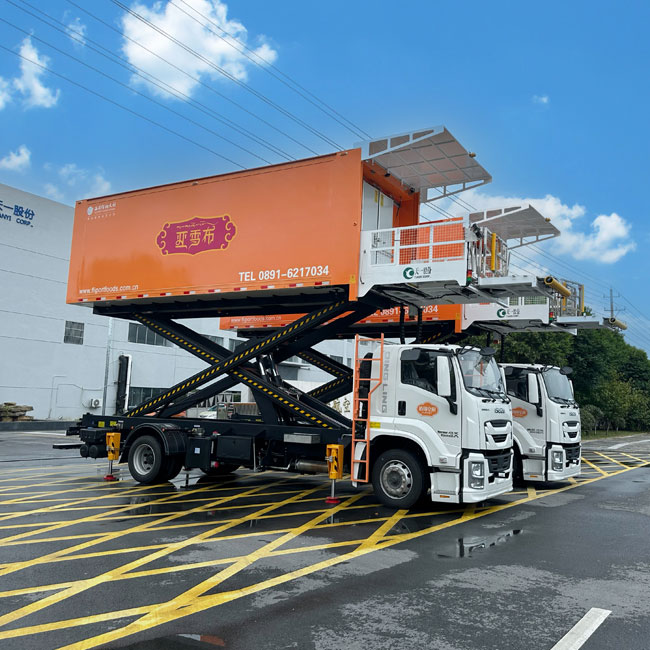

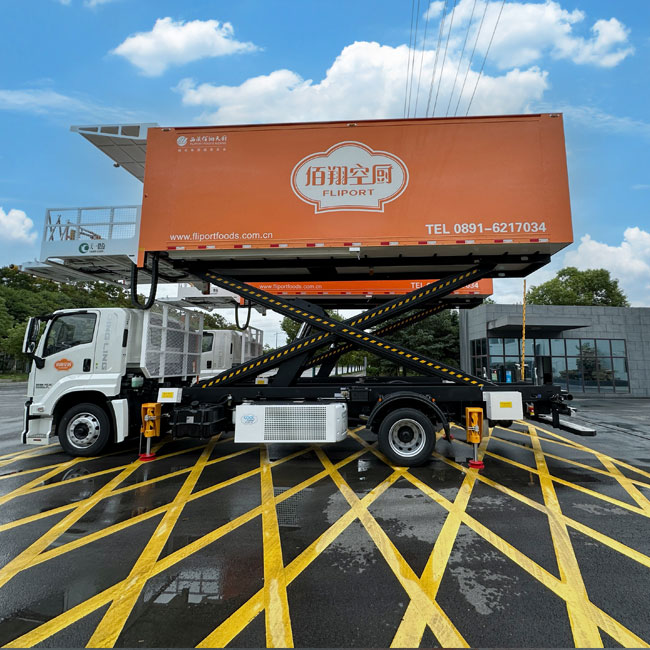

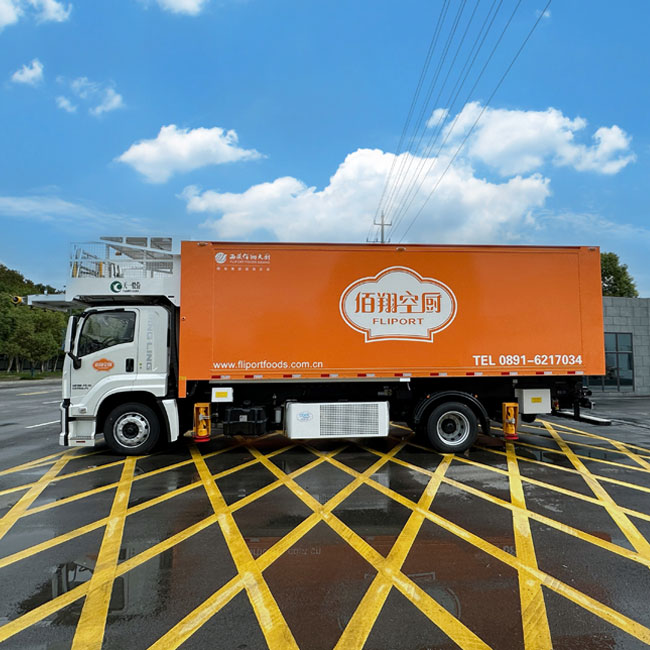

Retrofitted from ISUZU second class chassis, WTJ5160JSP Aircraft Catering Hi-Lifts is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis. It is applicable to A300、A310、A318、A319、A320、A330、A340、B707、B727、B737、B747、B757、B767、B777、DC8、1L—18、1L—62、MD11、MD80 type aircraft except A380
WTJ5160JSP Aircraft Catering Hi-Lifts configuration six main technical parameters
Engine model: 6HK1-TCL
Transmission model: Allison2500
Platform working height (mm) : 2650-6200
Rated load of the box body (kg) : 5500
Rated load of the front platform (kg) : 2000
Rated load (kg) of the movable part of the front platform: 600
The left and right adjustment range (mm) of the front platform activity part: 0-700
The telescopic adjustment range (mm) of the movable part of the front platform: 0-600
Dimensions of the fixed part of the front platform (length × width) (mm) : [(1900×2265) (length narrow)]/[(1400×2400) (length wide)]
The dimensions of the movable part of the front platform (length × width) (mm) : 830×1200
Curb weight (kg) : 12,300
Overall dimensions (length × width × height) (mm) : [10400 (length - narrow) /10320 (length - width)]×2500×3800
Chassis model: QL1180XQFRY
External dimensions of the box body (length × width × height) (mm) : 7500/7200×2500×2400
Engine emissions: Exhaust pollutants meet the requirements of Stage V of GB 17691-2005, and exhaust smoke intensity meets the requirements of GB 3847-2005.
Rated load (kg) of the fixed part of the front platform: 1400
