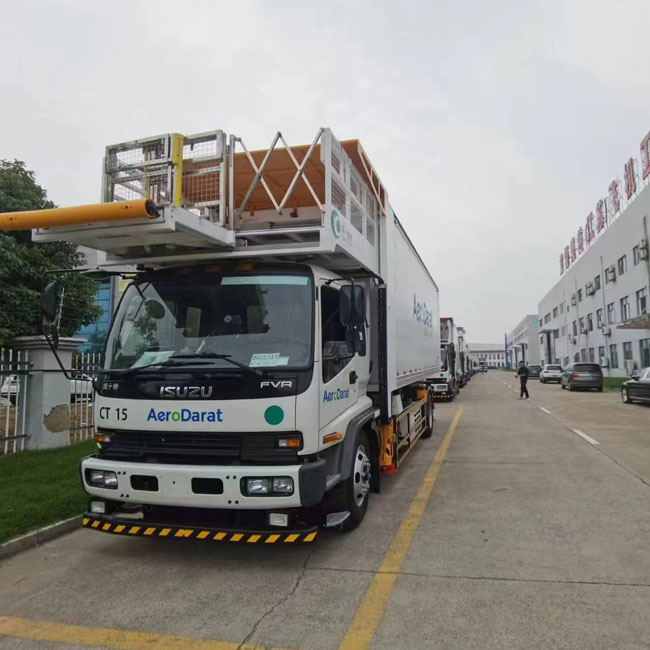

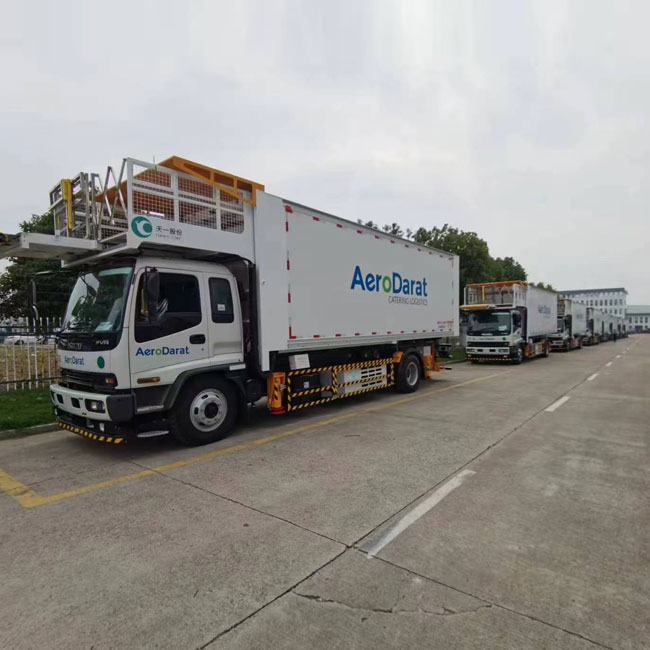

Model：Aircraft Catering Truck
WTJ5160JSP Aircraft Catering Truck is the use of Qingling second class car chassis modification, advanced technology, the use of safe and reliable, the performance is better than the use of other domestic chassis modification of similar products, the car's technical performance is advanced, low center of gravity, good stability, safe and convenient operation, reasonable structure design, advanced technology, beautiful appearance, reliability, good maintainability, It can be widely applied to A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, B737MAX, DC8, 1L -- 18, 1L -- 62, MD11, MD80 in addition to Airbus A380 aircraft Such as the use of models.
WTJ5160JSP Aircraft Catering Truck Configuration seven Main technical parameters table
| serial | Project Name | Specific parameters | Part Name | Model |
| 1 | Chassis | Qingling Automobile Co., LTDQL1180XQFRY | gearbox | MLD-6Q |
| 2 | Engine | Qingling Isuzu (Chongqing) Engine Co., LTD. 6HK1-TCL | Force extractor | KRT350R002 |
| 3 | Engine emission | GB 17691-2005 National V | Oil pump | CBN-F63-BGHL |
| 4 | Transmission | MLD-6Q | chassis | QL1180XOFRY |
| 5 | Platform working height mm | 2650 ~ 6200 | engine | 6HK1-TCL |
| 6 | Body load rating kg | 5500 | Steering shaft | F063 |
| 7 | Platform left and right adjustment range mm | 0 ~ 700 | Drive shaft | R130 |
| 8 | Platform expansion adjustment range mm | 0 ~ 600 | tyre | 9.00-20 16PR |
| 9 | Fixed platform size (length x width) mm | 1900 x 2265 | Lift cylinder | D160/145-1070 |
| 10 | Mobile platform dimension (length × width) mm | 830 x 1200 | Front leg cylinder | D90/63-290 |
| 11 | Body size (length × width × height) ㎜ | 7500 * 2500 * 2400 | Rear leg cylinder | D90/63-290 |
| 12 | Total front platform load kg | 2000 | Front platform moving cylinder | D40/30-700 |
| 13 | Fixed platform rated load ㎏ | 1400 | Front platform telescopic cylinder | D40/30-600 |
| 14 | Mobile platform load rating kg | 600 | Electric emergency pump | 800601632 |
| 15 | Chassis lifting speed mm/s | 80-150. | Manual emergency miscellaneous | PMO 50-s |
| 16 | Wheelbase mm | 5550 | ||
| 17 | Departure Angle | 9.5 ° | ||
| 18 | Minimum ground clearance mm | 215 | ||
| 19 | Overall dimension (length × width × height) mm | 10400 * 2500 * 3800 | ||
| 20 | Maintenance weight kg | 12300 |
