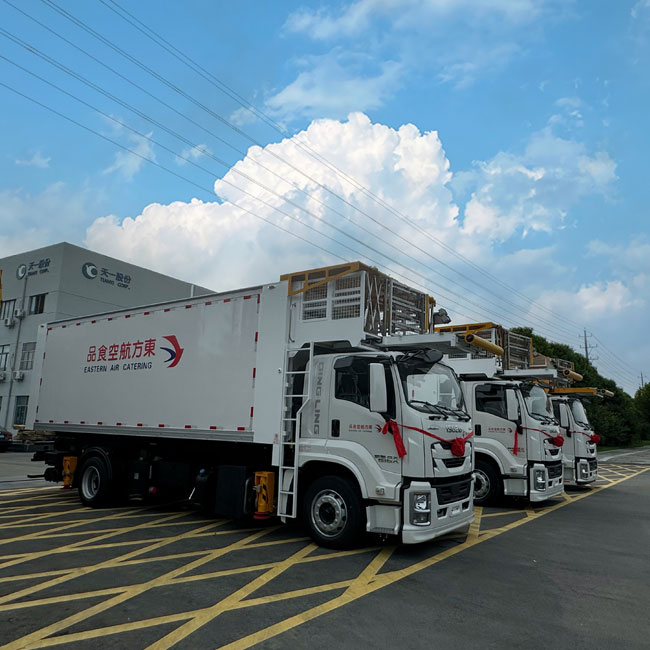

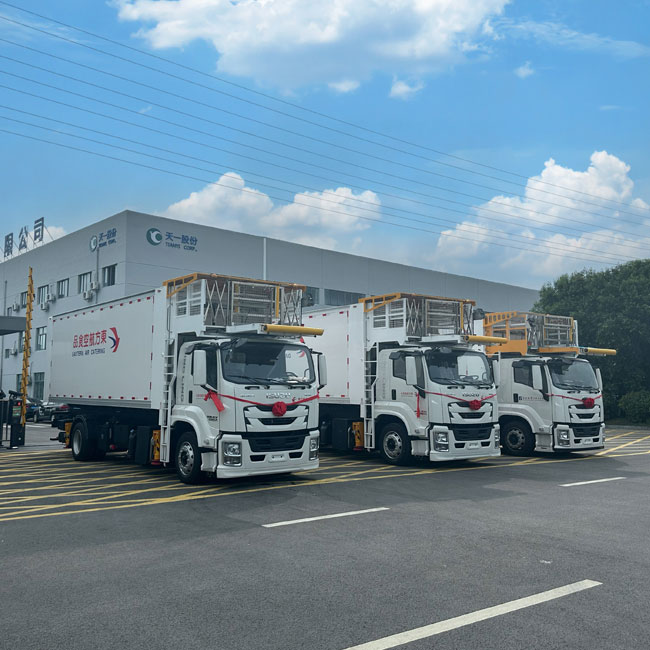

Automatic ISUZU Catering Truck

Retrofitted from ISUZU second class chassis, WTJ5160JSP catering truck is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis.
Availability:
Product Description

AIRCRAT CATERING TRUCK(automatic transmission)

1. Product profile

Retrofitted from ISUZU second class chassis, WTJ5160JSP catering truck is advanced in technology, safe and reliable for use with all performances better than similar products retrofitted from domestically produced chassis.

It is applicable to A300、A310、A318、A319、A320、A330、A340、A350、B707、B727、B737、B747、B757、B767、B777、B787、C919、DC8、1L—18、1L—62、MD11、MD80 type aircraft except A380.


2. Product Standard

MH/T6016-2017 《Aircraft Catering truck》

JG5099-1988《Safety Regulations for Aerial Work Machinery》

GB7258-2004《Safety Technical Conditions of Motor Vehicle》

AHM910《Basic Requirements of Ground Support Equipment》

AHM927《Basic Safety Requirements of Ground Support Equipment》


3. Mail configuration

Chassis: Isuzu QL1160AQFRY; Isuzu QL1180XQFRY;

Transmission: Allision2500

Engine: Isuzu 6HK1-TCNG40 (IV); Isuzu 6HK1-TCL40 (V);

Refrigeration units: Carrier 750 series; 850series, ThemoKing UT800 series; UT1200 series

Thermal insulating door: Moving doors or rolling doors

Monitoring system: car backing radar

Insulated device: 1. Diesel heating system; 2. Engine coolant heating device(220V);3.Air heating device(24V)

Safety device: Monitor; car backing radar; protective device


4. Technical parameter


No. Name of project Performance index Note
Configuration 一 Configuration 二 Configuration 三 Configuration 四
1 Type of chassis ISUZU QL1160AQFRY ISUZU QL1180XQFRY
2 Type of engine ISUZU 6HK1-TCNG40 ISUZU 6HK1-TCL
3 Engine emission GB 17691-2005 China IV GB 17691-2005 China V
4 Type of transmission ISUZU MLD-6Q USA ALLISON2500
5 Height of platform mm 2730~6150 2740~6020 ——
6 Loading of van body ㎏ 4000 ——
7 Adjustment range of mobile platform mm 0~800 ——
8 Adjustment range of extensible platform mm 0~600 0~500 ——
9 Size of fixed platform ---mm 1400×2480 1400×2400 ——
10 Size of mobile platform mm 1120×1200 ——
11 Size of van body ㎜ 7200×2480×2400 7500×2480×2400
12 Loading of fixed platform ㎏ 1000 1200 ——
13 Loading of movable platform ㎏ 400 600 ——
14 Overall dimension mm 9900×2550×3800 10320×2500×3830 ——
15 Curb weight kg 14000 ——
