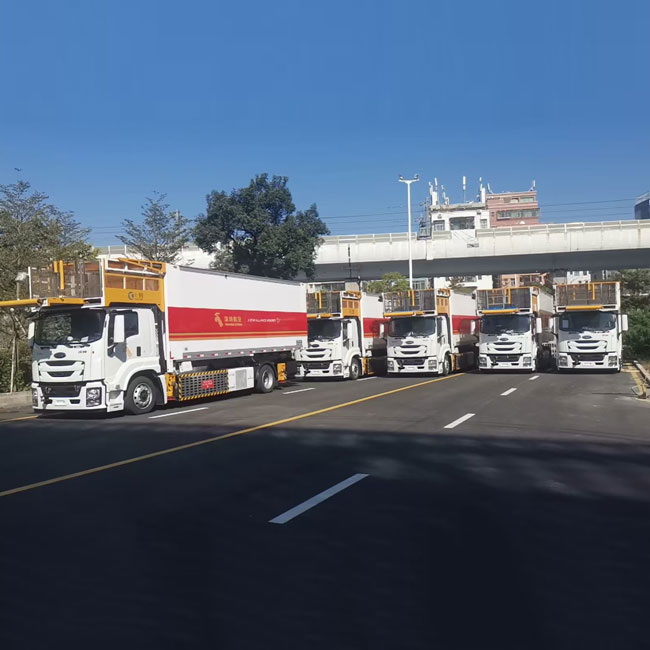

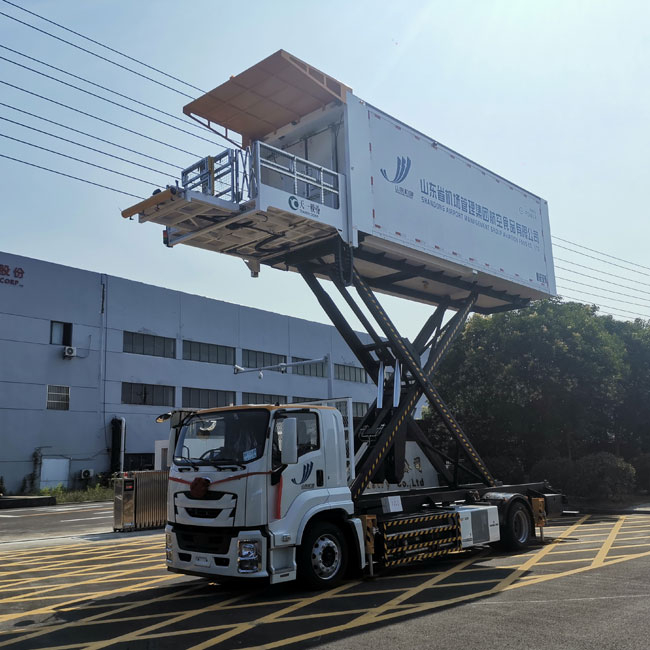

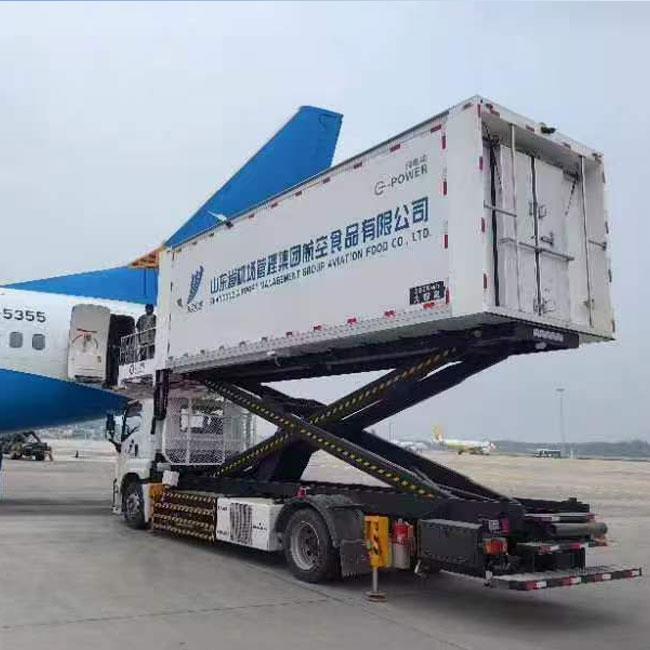

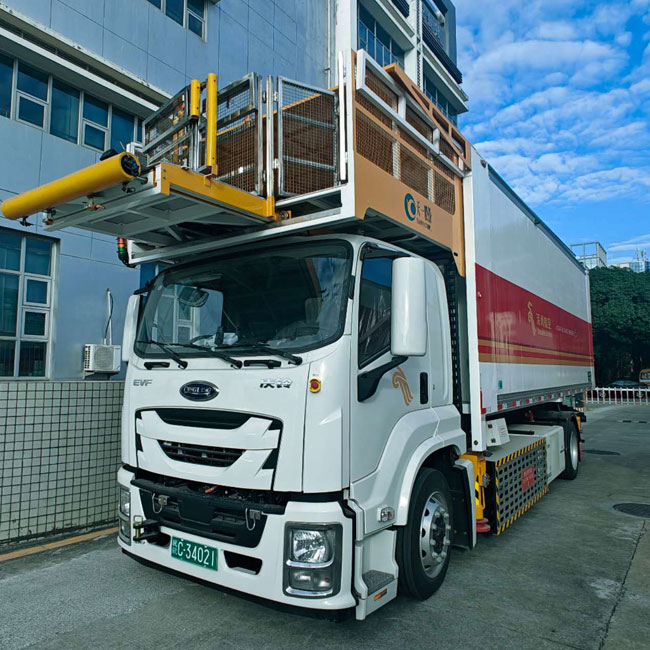

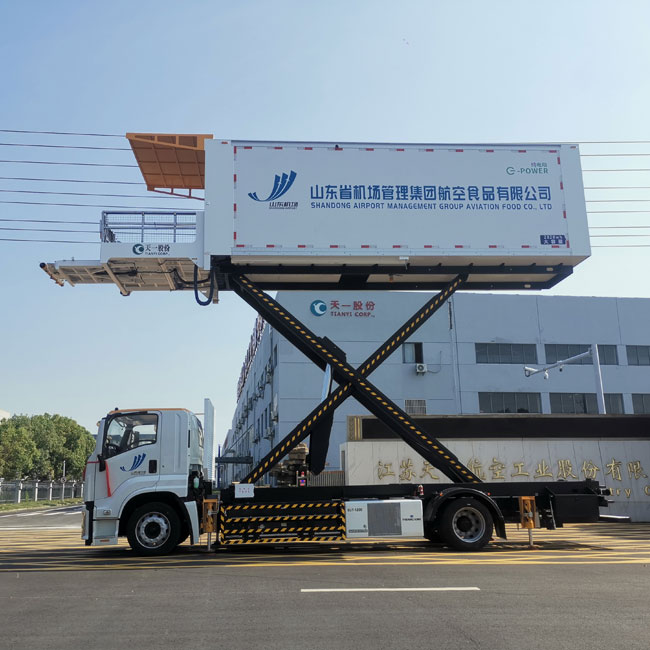

Electric Air Catering Truck(Upgrade)

JSTY5180JSPE Electric air catering truck (patent No. : 201921164876.4). Under the premise of optimization of structural performance and function by lightweight design, using new material (high strength steel BS960E Q) advanced technology, Qingling QL1180BVEELQHY (chassis approved total mass 18 tons, overload will cause serious damage to the vehicle, Qingling company maintenance damage caused by overload will not claim), Tianyi Stock has produced 13,790 tons of national tested vehicle reconditioning mass, 6 tons of car body rated load, and 19.99 tons of total vehicle mass. It is the only product in the industry whose total chassis mass is not overweight and equipped with safety matching system. At present, the product is the lightest total weight, the largest bearing capacity, the best steering and braking performance, the lowest maintenance and operation cost, the highest safety and reliability of pure electric aviation food truck. The tires are 295/60R22.5 18PR.
Availability:
Product Description

Model:JSTY5180JSPE Electric air catering truck


Product standard

MH/T 6016-2017 "Airline Food Truck"
AC-137-CA-2019-04 "Aviation Food Truck Test Specification"
AC-137-CA-2015-20R1 General Technical Requirements for Ground Service Equipment for Electric Aircraft
JG 5099-1988 Safety Regulations for Working Machinery at Altitude
GB 7258-2004 "Motor Vehicle operation safety Technical Conditions"
AHM910 Basic Requirements for Aeronautical Ground Equipment
AHM913 Basic Safety Requirements for Aviation Ground Equipment
AHM915 Standard Control
AHM910 "Basic Requirements for Station Support Equipment for Civil Aircraft"


Main assembly structure and main technical parameters


Type Permanent magnet synchronous motor
species Lithium iron phosphate
Drive motor Rated power/speed kw/r/min 100/1200 Energy storage device type Energy type
Rated current A 180 Assembly system 2 and 192 strings
Insulation class H
Protection class IP67
Rated voltage VAC 380 Assembly voltage V 618.24
drive Input voltage VDC 400~750 Total energy stored kWh

281.92

electric Rated output voltage VAC 380 Unit nominal voltage V 3.22
Machine control device Control mode Torque control Unit rated capacity Ah 228
Cab type Flat head Number of passengers 3
Total length mm 10620 Total width mm 2500
Total height mm 3780 wheelbase mm 5550
Wheel base (front/rear) mm 1970/ 1840 Maximum speed km/h 59.5
Quality of maintenance kg 14350 Total mass kg 19550
Minimum ground clearancemm 160 Channel circle outer circle diameter mm 20800
Working height of platform mm 2550~ 6100 Rated carriage load kg 5000
Front platform rated bearing capacity kg 2000 Forward platform moving part rated bearing capacity kg 600
Rated bearing capacity of fixed part of front platform kg 1400 Left and right adjustment range of front platform moving part mm 0~700
Dimension of fixed part of front platform (length × width) mm 1900× 2265 Moving part of front platform (telescopic adjustment range) mm 0~600
Dimension of moving part of front platform (length × width)
mm
830×1200 Internal dimensions of car body (length × width × height) mm 6750×2360×2200
External dimensions of car body (length × width × height) mm 7500×25 00×24 00 Driving range  km 435
Temperature range ℃ -35~60 —— ——


List of main assembly of sample car

Serial name Type number
1
chassis
JSTY5180JSPE-0100000
2
Vehicle controller
HCDN67VCU-41B
3
Five in one integrated controller
HC60LTPIC -F12BG
4
Driving motor
TZ380XSM12
5
Oil pump motor
HCDM030HP2
6
Oil pump motor controller
HCDMC055VT7
7
Energy storage assembly
228Ah618.24V1P192SH
8
Energy storage unit
CB230
9
Steering shaft
F063
10
Drive shaft
R130
11
Front/rear tires
10R22.516PR
12
Hydraulic pump
CBHZ-F25-ALФL
13
Lift cylinder
D160/145-1070
14
Front/rear leg cylinder
D90/63-290
15
Moving platform cylinder
D40/30-700
16
Telescopic platform cylinder
D40/30-600
17
Electric emergency pump
800601632
18
Hand pump
PMO 50-s
