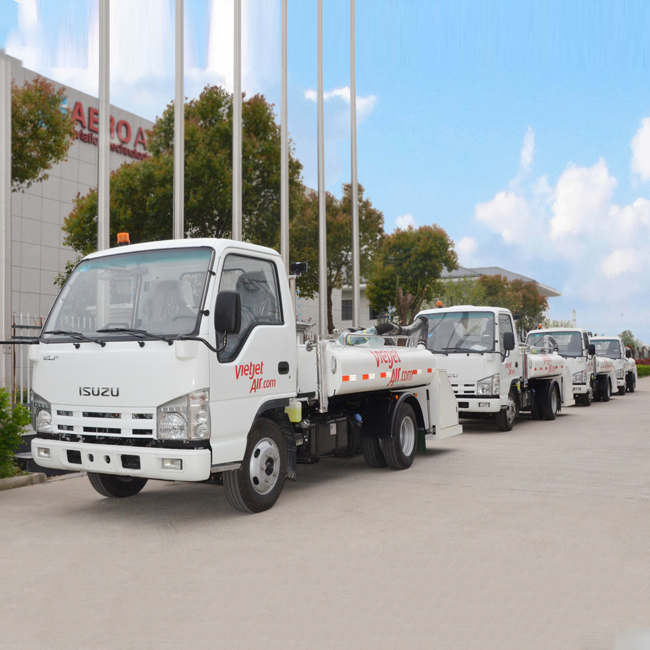

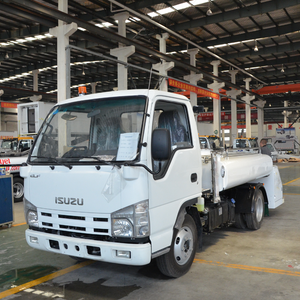

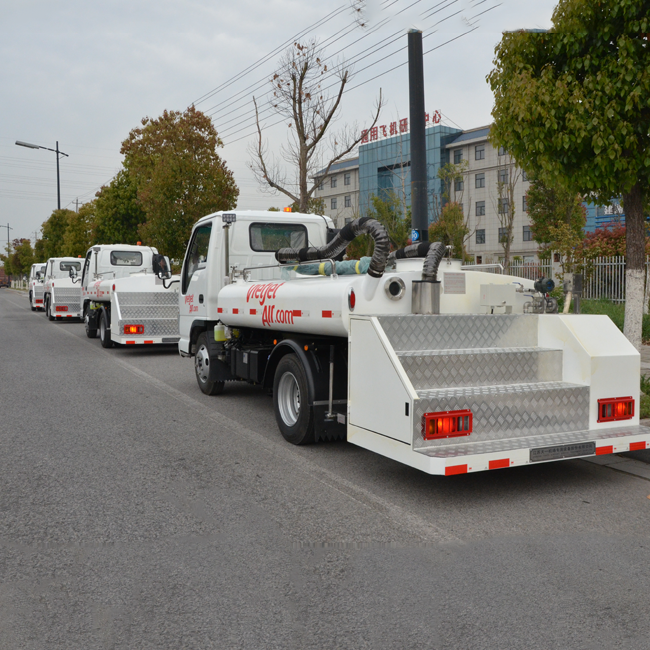

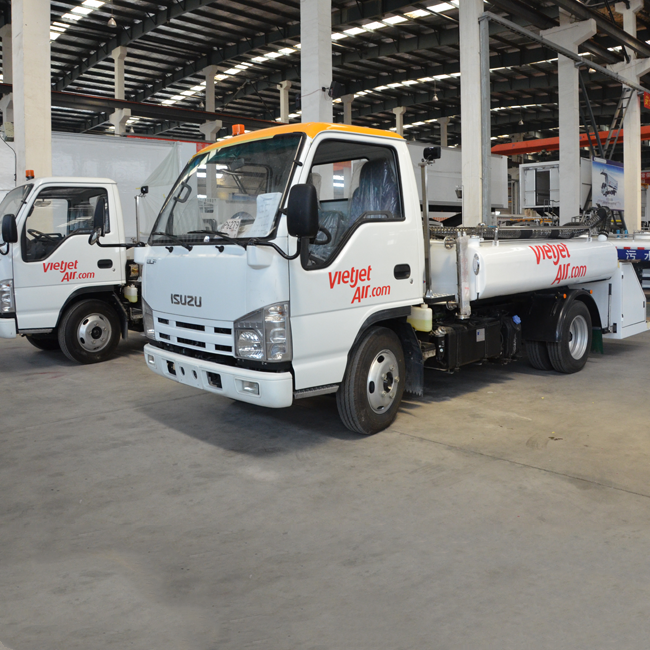

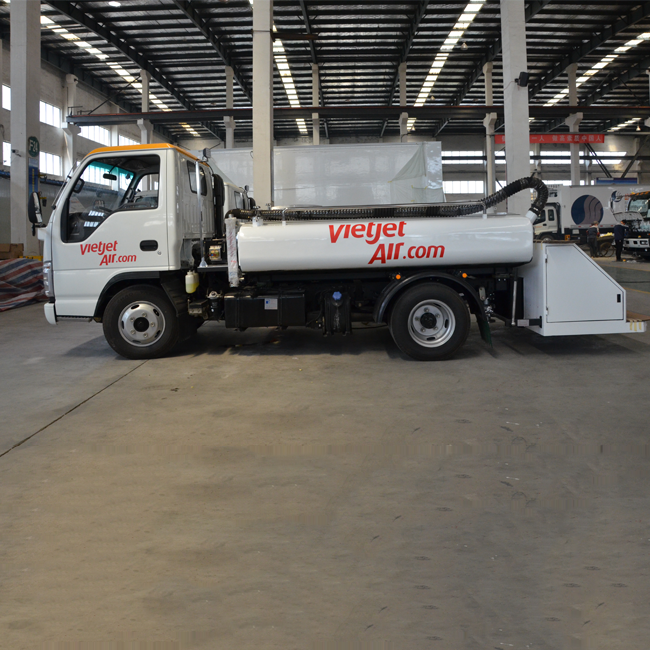

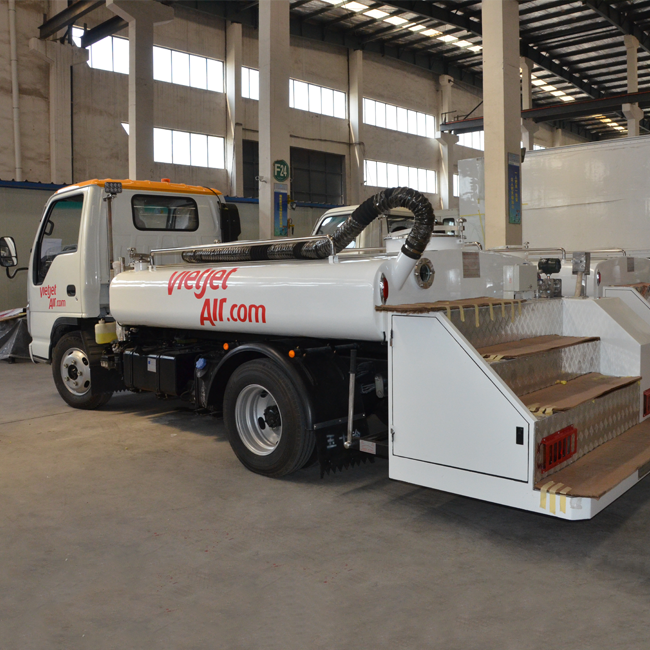

Aircraft Lavatory Service Cart

aircraft lavatory service cart can be widely used in addition to Airbus A380 aircraft A300, A310, A318, A319, A320, B707, B727, B737, B747, B757, B767, B777, DC8, 1L -- 18, 1L -- 62, MD11, MD The use of 80 and other models. The car has advanced technical performance, low center of gravity, good stability, safe and convenient operation, reasonable structure design, advanced technology, beautiful appearance, reliability, good maintainability.
Availability:
Product Description

Model:Airport sewage truck


Product standard
1) MH/T6015-2014 "Aircraft Sewage Truck"
2) AHM970 Functional Specification for Aircraft Sewage Truck
3) AHM913 Basic Safety Requirements for Aviation Ground Equipment
4) AHM915 Standard Control Device
5) AHM910 Basic Requirements for Aviation Ground Equipment
6) CCAR-137-CA-R3 Regulations on the Management of Special Equipment for Civil Airport
7) AP-137-CA-2015-02 Inspection Measures for Special Equipment of Civil Airport (Trial)
8) GB3847-2005 "Exhaust Smoke emission Limits and Measurement Methods of Compression-combustion Engines and Compression-combustion engines for Vehicles"
9) GB20891-2014 "Emission Limits and Measuring Methods of Diesel Exhaust Pollutants for Non-Road Mobile Machinery (Stage III and IV of China)"


Main technical parameters

serial Project Name Specific parameters Part Name Model
1 Total length (mm) 7190 chassis QL1070A5KAY
2 Total width (mm) 2100 engine 4KH1CN5HS
3 Total height (mm) 2260 gearbox MSB-5SM
4 Wheelbase (mm) 3815 Front bridge 3000010-L20PA
5 Wheel base (front/rear) (mm) 1540/1425 Rear axle 2400010-L20PA
6 Front suspension (mm) 1025 tyre 7.00R16 14PR
7 Rear suspension (mm) 2350 Force extractor SDQ51/74LGS-G
8 Approach Angle (°) 22.5 Hydraulic pump CBN-F50-BFHL
9 Departure Angle (°) 8 Water pump SCB65-20/50
10 Minimum ground clearance (mm) 200 Vacuum pump 2BV2771
11 Maintenance weight (kg) 4060

12 Total mass (kg) 8190

13 Channel circle outer circle diameter (mm) 17000

14 Maximum driving distance (km/h) 80

15 Sewage tank volume (L) 2600

16 Tank clearing volume (L) 1400

17 Water supply flow (L/min) 150

18 Minimum height of working platform (mm) 385

19 Maximum height of working platform (mm) 3760

20 Sewage tank material Stainless steel plate 0Cr18Ni9Ti/4.5

21 Vacuum sewage tank materials Stainless steel plate 0Cr18Ni9Ti/4.5
