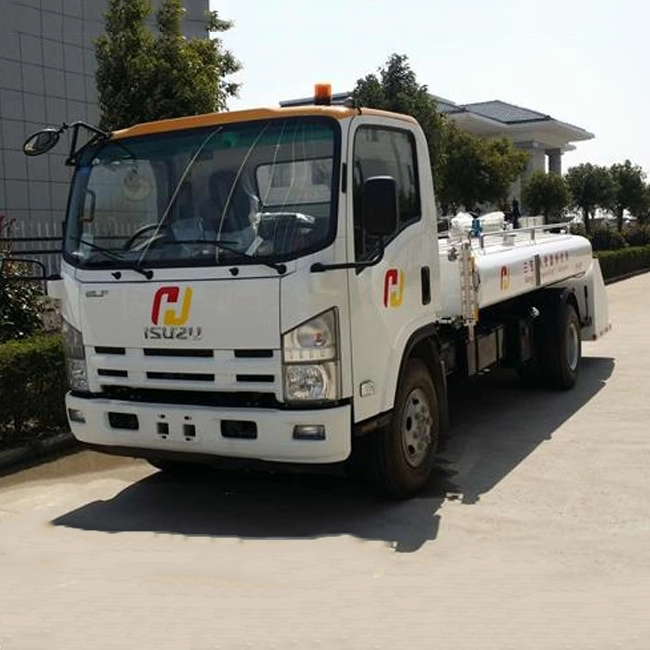

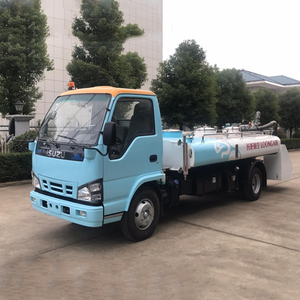

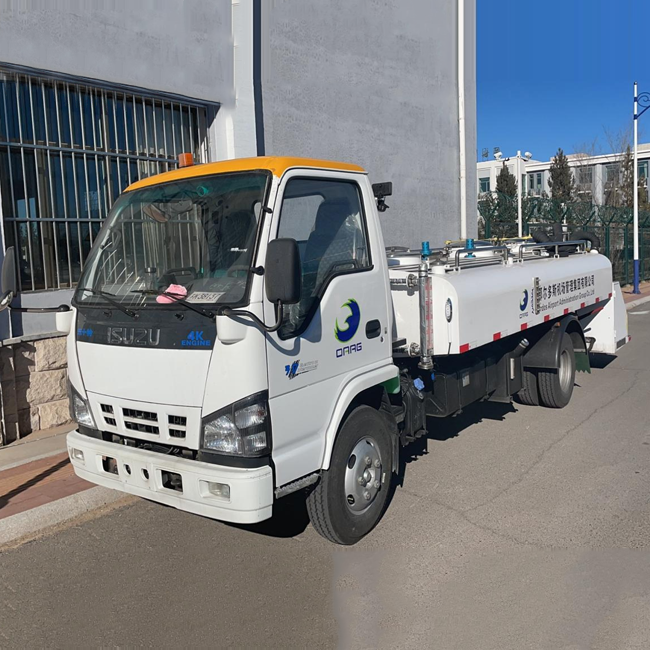

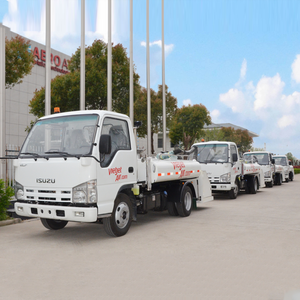

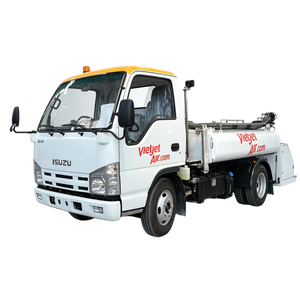

Model:Diesel Lavatory service Truck
Product standard
1) MH/T6014-1999 "Aircraft Clear Water Truck"
2) AHM970 "Functional Specification for Aircraft Clean Water Vehicle"
3) AHM913 Basic Safety Requirements for Aviation Ground Equipment
4) AHM915 Standard Control Device
5) AHM910 Basic Requirements for Aviation Ground Equipment
6) CCAR-137-CA-R3 Regulations on the Management of Special Equipment for Civil Airport
7) AP-137-CA-2015-02 Inspection Measures for Special Equipment of Civil Airport (Trial)
8) GB3847-2005 "Exhaust Smoke emission Limits and Measurement Methods of Compression-combustion Engines and Compression-combustion engines for Vehicles"
9) GB20891-2014 "Emission Limits and Measuring Methods of Diesel Exhaust Pollutants for Non-Road Mobile Machinery (Stage III and IV of China)"
Main technical parameters table
| serial | Project Name | Specific parameters | Part Name | Model |
| 1 | Total length (mm) | 6355 | chassis | JX1061TG25 |
| 2 | Total width (mm) | 1900 | engine | JX493ZLQ5 |
| 3 | Total height (mm) | 2150 | gearbox | JC528T8 |
| 4 | Wheelbase (mm) | 3360 | Front bridge | JMCQC600-E |
| 5 | Wheel base (front/rear) (mm) | 1385/1425 | Rear axle | 8A-ABS5 |
| 6 | Front suspension (mm) | 1090 | tyre | 7.00R16 10PR |
| 7 | Rear suspension (mm) | 1905 | Force extractor | SDQ51/74LGS-G |
| 8 | Approach Angle (°) | 21 | Gear pump | XPL057 |
| 9 | Departure Angle (°) | 6 | Hydraulic motor | GM5-16-1E13S-20 |
| 10 | Minimum ground clearance mm | 200 | Water pump | SCB50-12.5/45 |
| 11 | Maintenance weight (kg) | 3100 | ||
| 12 | Total mass (kg) | 6250 | ||
| 13 | Channel circle outer circle diameter (mm) | 15500 | ||
| 14 | Maximum driving distance (km/h) | 80 | ||
| 15 | Tank volume (L) | 3000 | ||
| 16 | Water supply flow L/min | ≥150 | ||
| 17 | Water supply pressure Mpa | 0.25~0.345 | ||
| 18 | Minimum height of working platform (mm) | 400 | ||
| 19 | Maximum height of working platform (mm) | 3000 | ||
| 20 | Water tank material | Stainless steel plate 0Cr18Ni9Ti/3 |
