JSTY5060GWSE Self-propelled Vacuum Lavatory Service Truck big data platform is composed of vehicle operating enterprise, vehicle production enterprise three-level platform and vehicle terminal. The data collected by the platform is based on GB/T 32960-2016 "Technical Specification for Electric Vehicle Remote Service and Management System" to achieve vehicle data collection and reporting. Comply with the relevant national regulations and standards.
The system is centered on the vehicle production enterprise (Jiangsu Tianyi), which technically ensures that the design of the software system can meet the user's habits and needs, and the management personnel can master the use method through training.
The vehicle terminal can realize wireless docking and real-time data exchange with the vehicle operation monitoring and management system; With the vehicle positioning function, it can send the position, speed and working status information of the vehicle battery in real time (including battery voltage, electricity, temperature, abnormal condition, etc.); It can send the main technical parameter information and maintenance information of the vehicle in real time, including the status of the drive motor, the key fault warning information of the vehicle, and the maintenance reminder of the vehicle. It can receive the information and instructions issued by the vehicle operation monitoring management system platform, such as speeding, crossing the line, maintenance reminders, etc.
Self-propelled Vacuum Lavatory Service Truck configuration Four Main performance indicators:
Clean water tank volume (L) : 1600
Volume of sewage tank (L) : 3280 (with vacuum pump) /3400 (without vacuum pump)
Water supply flow (L/min) : 210
Water supply pressure (MPa) : 0.345
Quality (kg) : 4860
Overall dimensions (length × width × height) (mm) : 6990×2100×2270
Maximum speed (km/h) :80
Driving range (km) :245
Chassis model :QL1070BEVECDAY
Circulation tank volume (L) :120 (with vacuum pump) /0 (without vacuum pump)
Drive motor model: YTD060W23
Drive motor controller model: KTZ50X35S
Motor pump model: DLDY-1.0/0.8-3
Motor pump controller model: FA4Z5.5FAL00
Energy storage device assembly model: GXB2-G7A-6P42S
The total energy of the energy storage device (kWh) : 96.77

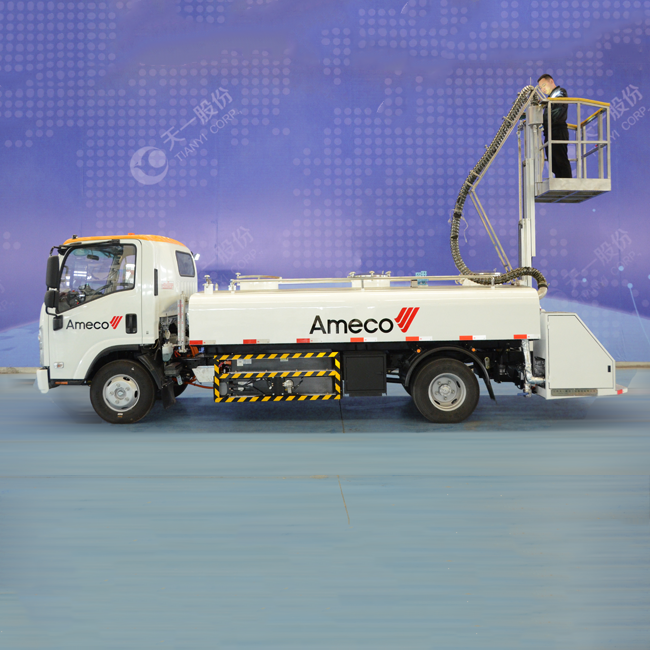

Working platform lifting height (mm) : 400 ~ 3000
