Aircraft Water Service Truck

JSTY5050GQS type aircraft portable water vehicle primarily consists of automotive Category II Jiangling chassis, portable water tank assembly, fixed platform assembly, portable water supply system, tail frame, hydraulic drive system, electrical system.
Availability:
Product Description

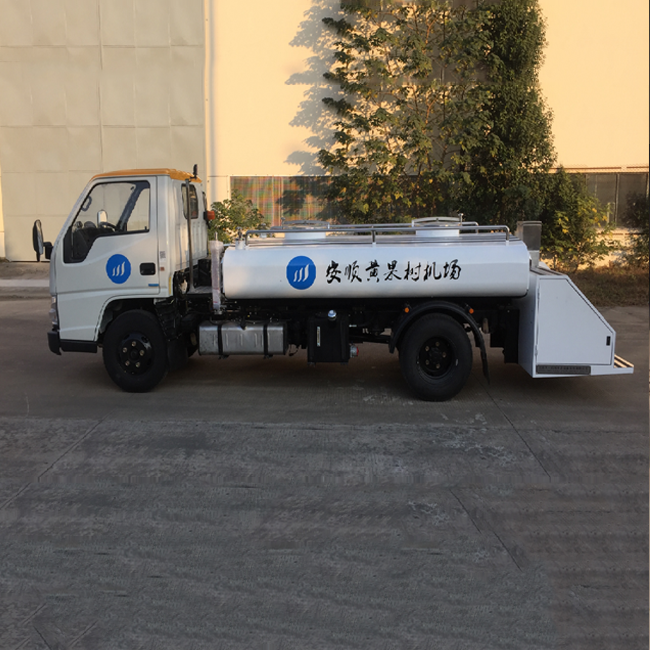

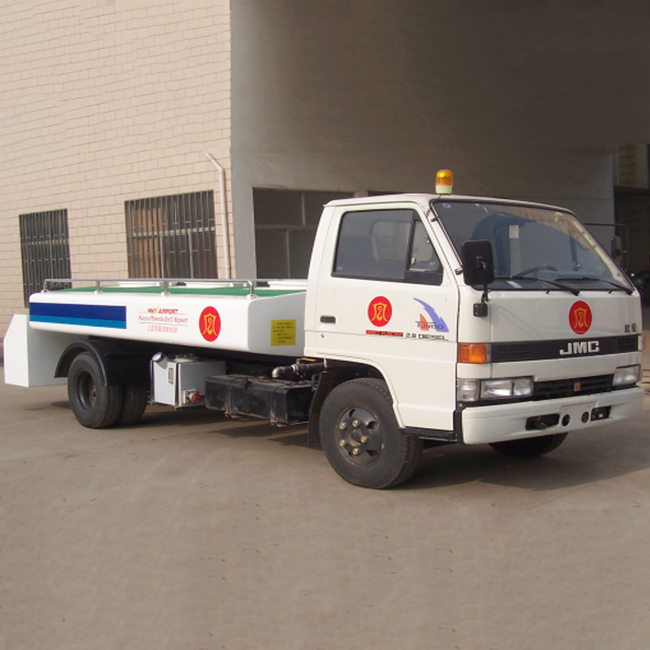

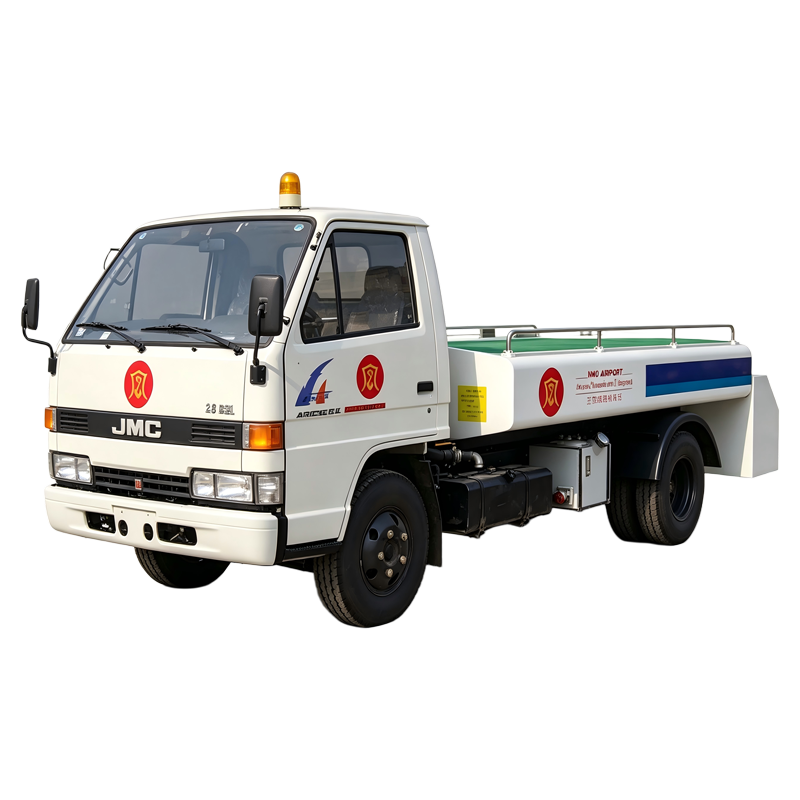

JSTY5050GQS aircraft portable water truck

1 Product Introduction

JSTY5050GQS type aircraft portable water vehicle primarily consists of automotive Category II Jiangling chassis, portable water tank assembly, fixed platform assembly, portable water supply system, tail frame, hydraulic drive system, electrical system.

The product consist of Jiangling II chassis , rear lifting platform and fresh water tank.

It is applicable to A300、A310、A318、A319、A320、A330、A340、B707、B727、B737、B747、B757、B767、B777、DC8、1L—18、1L—62、MD11、MD80 type aircraft except A380.


2 Product Standard

MH/T6014-1999 Portable Water Vehicle

IATA AHM 970 Function specification for Portable Water Vehicle

IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment

IATA AHM 915 Standard Control device

IATA AHM 910 Basic Requirements for Airport Ground Support Equipment

CCAR-137-CA-R3 Administrative provisions for civil airport equipment

AP-137-CA-2015-02 Survey arrangement for civil airport equipment

GB3847-2005·Emission limits and measurement methods for compressed-combustion engine

GB20891-2014 Emission limits and measurement methods for diesel engine


3 Main configuration

No.

Name

Type

Manufacturer

Main performance index

Note

1

Chassis

JX1061TG25

Jiangling auto

Length*width*height

5865*1880*2020, total mass 5880kg, wheelbase 3360mm


2

Engine

JX493ZLQ5

Jiangling auto

Rated power: 85kw/3800r/min

Max. torque :285Nm/1800r/min


3

Transmission

JC528

Jiangxi drive system company

Manual TR


4

Front axle

JMCQ600-E

Jiangling auto

Max. loading 2550kg


5

Rear axle

8A-ABS5

Jiangling auto

Max. loading 4700kg


6

Tire

7.00R16LT10PR

Jiangxi tire company

-----


7

Power takeoff

SDQ51/67LGS-G

Zhejiang

------


8

Gear pump

XPL057

Wuxi



Note: Engine China 5 emission, manual transmission


Technical Specifications

No.

Project name

Design value

Note

1

Total length (mm)

6800

----

2

Total width (mm)

1900

----

3

Total height (mm)

2150

----

4

Wheelbase (mm)

3360

----

5

Wheel tread (mm)

1385/1425

----

6

Front hanger (mm)

1070

----

7

Rear hanger (mm)

2370

----

8

Approach Angle (°)

24

----

9

Departure Angle (°)

10

----

10

Min ground clearance (mm)

200

----

11

Curb weight (kg)

3500

----

12

Total weight (kg)

6630

----

13

External circle diameters of turning clearance (mm)

14500

----

14

Maximum Allowable Travel Speed(km/h)

80

----

15

Clear tank capacity (L)

3000

----

16

Water Supply Flow (L/min)

120

----

17

Min height of working platform (mm)

400

----

18

Max height of working platform (mm)

3000

----
