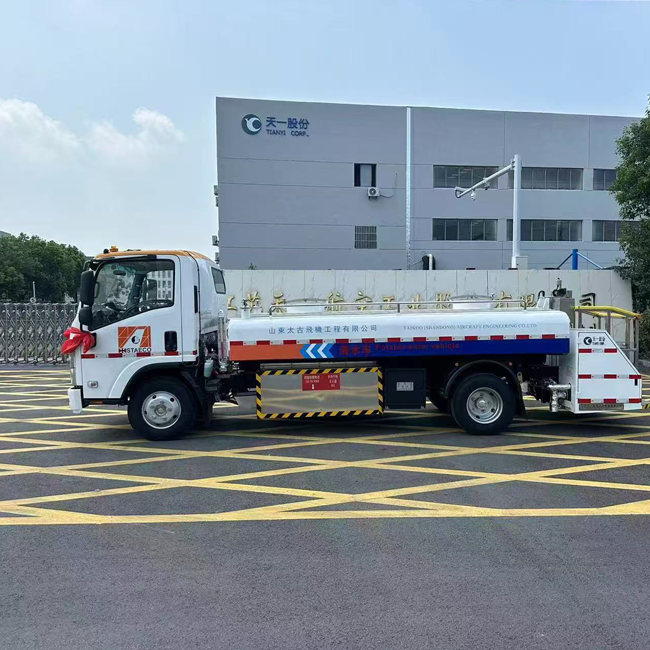

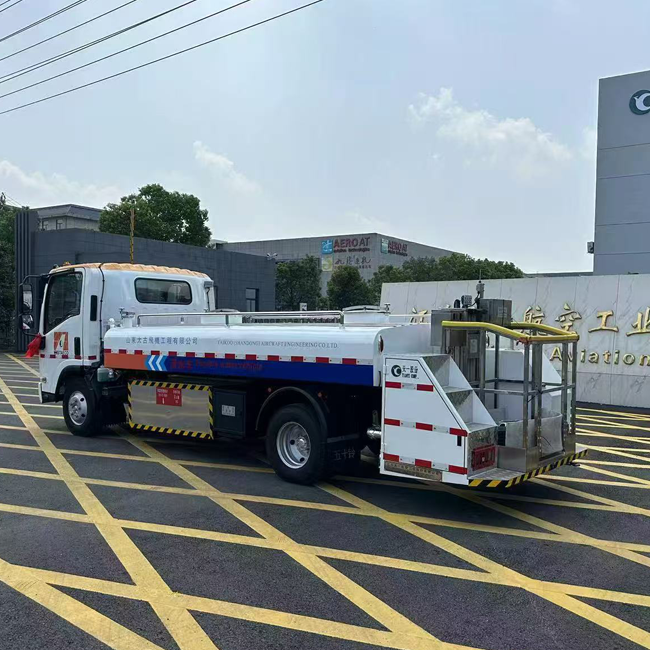

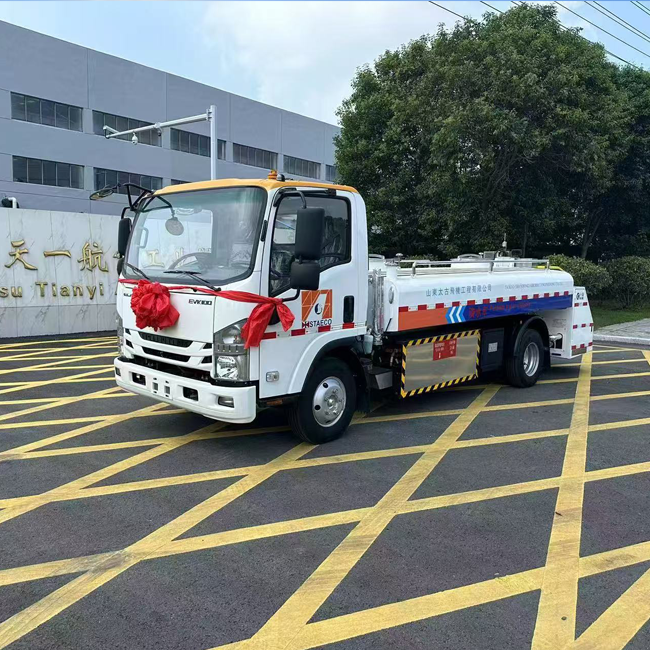

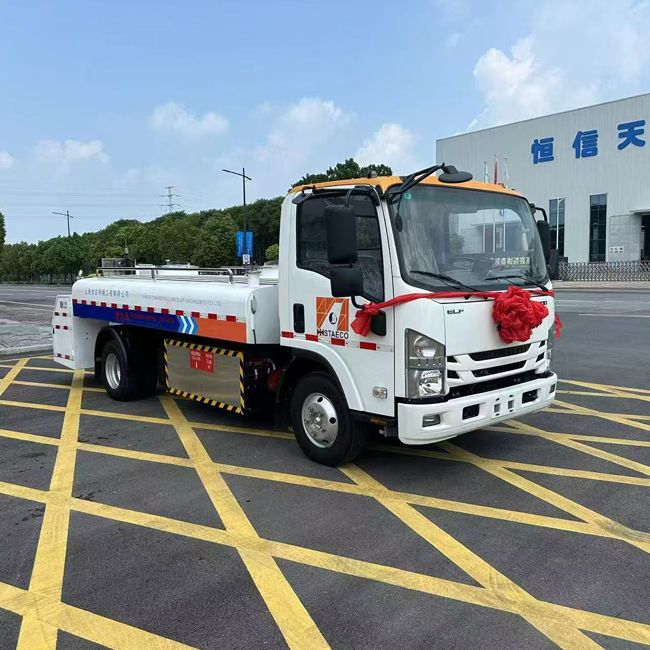

3500Liter Electric ISUZU Potable Water Serve Truck

JSTY5060GQSE aircraft water serve truck is a new type of airfield special vehicle which uses ISUZU QL1070BEVECDAY chassis to refit. The truck is equipped with a rear lifting platform and a large capacity clean water tank; The chassis cab of the product is flat head, single row seat, two-door type, with 3 passengers; The driving type is 4×2, the volume of the clean water tank is 4m³ , and the flow of clean water supply is ≥150L/min.
Availability:
Product Description

JSTY5060GQSE aircraft water serve truck is composed of QL1070BEVECDAY type II chassis modification assembly, clear water box assembly, lifting work platform assembly, hydraulic system, electrical system and so on

1)MH/T6014-1999   《aircraft water serve truck》

2)AHM970 《Functional specifications of aircraft water serve truck》

3)CCAR-331SB-R1 《No. 170 order of general administration of civil aviation of China 》

4)No. 170 order of general administration of civil aviation of China》

5)AC-137-CA-2015-20R1 《General technical requirements for electric aircraft ground service equipment》


length   mm 7240 Width   mm 2100
height   mm 2190 wheelbase   mm 3815
wheelbase front/rear mm 1690/1540 Front overhang   mm 1100
rear   overhang mm 2325 Volume of   water tank   L 4000
approach   angle (°) 19 departure   angle (°) 7
Ground   Clearance  mm 185 Outside diameter   mm 16500
Curb weight   kg 4180 Max. speed  km/h 80
Max. speed  km/h 50 Water supply flow L/min 130
Pressure of water supply  Mpa 0.345 Material of   water pump non-corrosion stainless steel pump
Lifting height mm 440-3090 Max. load of platform  kg 200
Temperature range (°C) -35~60 endurance mileage km 210
