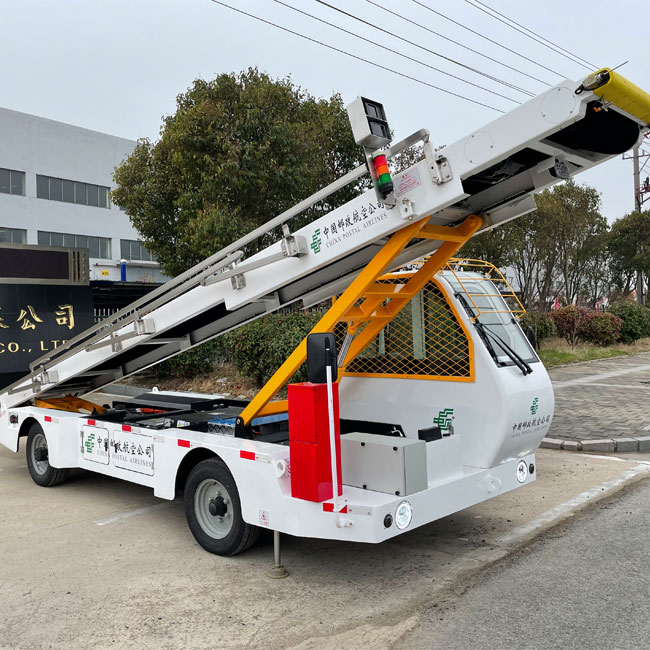

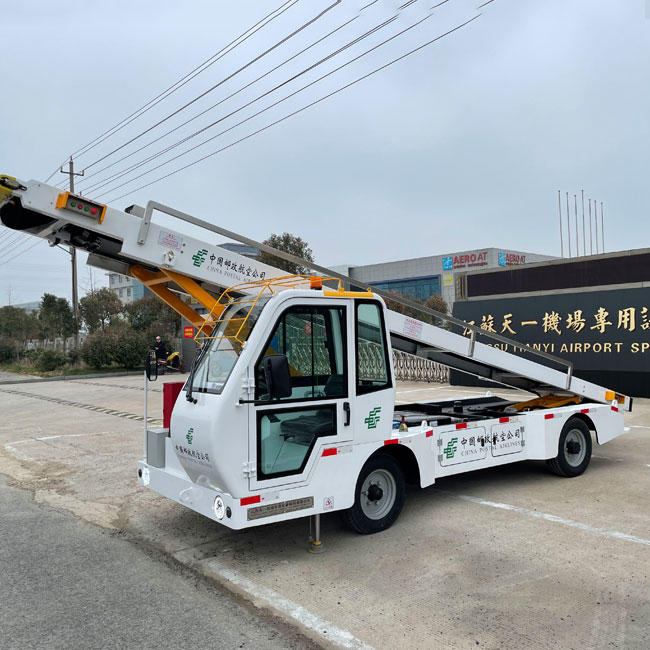

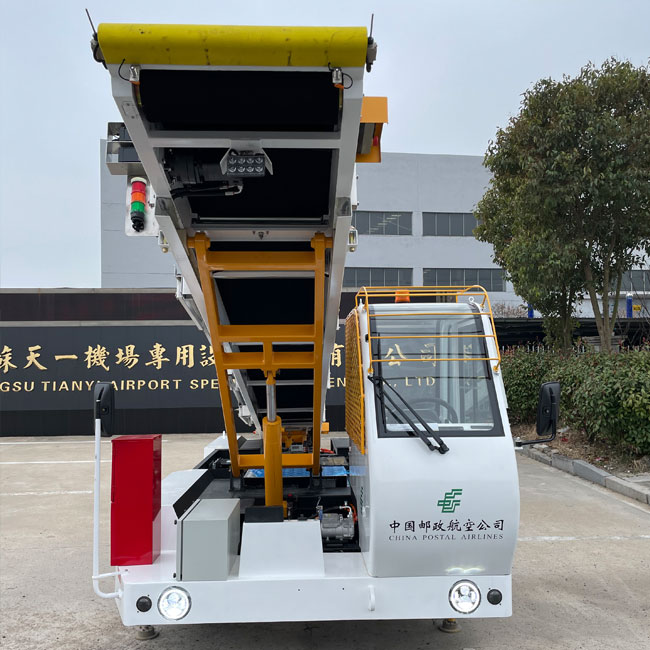

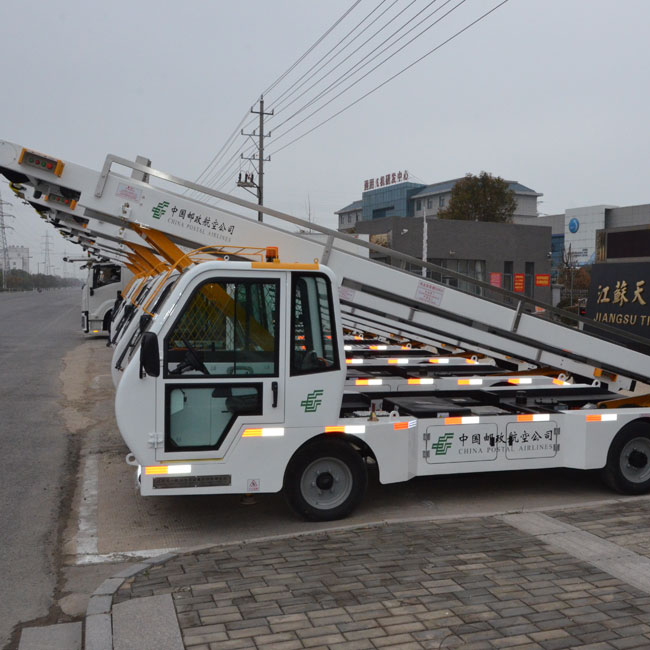

The Conveyor Belt and bracket are composed of conveyor belt, main frame, bracket frame, drive motor, guide plate, etc. The conveyor belt is originally imported, high strength conveyor belt, anti-aging, strong adhesion, long life.
The transmission frame is made of channel steel, with a reasonable load distribution to meet the requirements of service life. A scratch-free buffer rubber cylinder is installed at the front end of the transmission frame.
Conveyor Belt Loader configuration four
Driving motor model: HCDM030HP2
Model of driving motor controller: HC30LKPIC-K21-V1-TY
Steering shaft model: 3000000-HY430A
Drive shaft model: 2400000-HY540A
The working range of the conveyor belt (mm) : The lifting range at the front end: 1160-4380
The lifting range at the rear end: 380 to 1560
Transmission speed (m/s) : 0.16-0.5
Conveyor belt width (mm) : 700
Conveyor belt carrying capacity (kg/m) : 135
Overall dimensions (length × width × height) (mm) : 8200×2150×2130
Wheelbase (mm) : 2900
Maximum speed (km/h) : 30
Curb weight (kg) : 3660
Endurance capacity (km+t) for small airports: 242+363
Large airports:238+357
Medium-sized airport: 241+360
Other features: Optional cab
Chassis model: JSTY5040JCSE-1000000A
The outer diameter of the channel circle (mm) : 15400
Hydraulic motor model: HCDM007MG1
Hydraulic motor controller model: HCDM007CL1
Model of the energy storage device assembly: L200B01
Total energy storage device (kWh) : 70.48
