Baggage Towing Tractor Drive motor and controller precautions:
Due to the fact that the controller still has low voltage inside and at the control terminals for a short period of time after power-off, the following maintenance is only applicable to trained professionals; otherwise, it may cause serious personal injury or equipment accident
(1) Regularly check whether the fixing bolts of the drive motor and motor controller are loose.
(2) Regularly check if the wiring harness joints are loose to prevent water from entering the joints.
(3) Do not rinse directly with water to avoid electric shock.
(4) If it is necessary to open the controller cover plate for operation, be sure to unplug the low-voltage power supply first and wait for about 2 minutes to allow the capacitor to discharge completely before proceeding to avoid electric shock.
Testing basis
GB 7258-2017 "Technical Conditions for the Operation Safety of Motor Vehicles", AHM913 "Basic Safety of Aviation Ground Equipment", GB/T 18849-2011 "Brake Performance and Part Strength of Motor Industrial Vehicles", MH/T6048-2008 "Baggage Tractor", AP-137-CA-2015-20R1 "General Technical Requirements for Ground Service Equipment of Electric Aircraft"

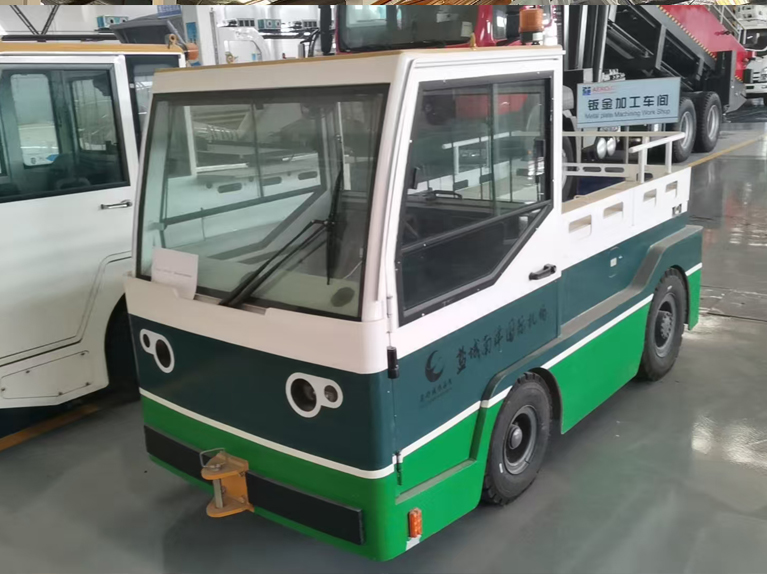

The Baggage Towing Tractor parameter
Total length (mm) :3200
Total width mm :1400
Total height (mm) :2000
Axle distance mm :1950
Curb weight kg :4000
Front axle load capacity kg :1900
Rear axle load capacity kg :2450
Maximum speed (empty load/rated load) km/h :25/11
Maximum hook traction force kN :25
Rated hook traction force kN :12
Rated traction capacity kg: 25,000
Climb rate (no-load) % 35
Battery grade: IP67
