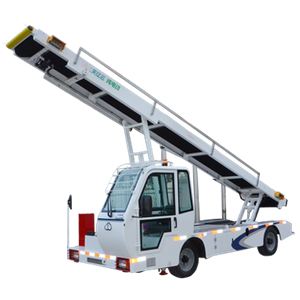

Selfpropelled Motorized Aviation Belt Loader

We export a lot to other countries. Please rest assured of our good quality, best price and long-term supply. It has won good reputation from domestic and abroad.5 Main technical spec data 1 Product Name: Self-Propelled Convener-Belt Loader 2 Product Model: Product Introduction: TY-XC80 self-propelled convener-belt loader is a new luggage transporter designed and manufactured by Jiangsu Tianyi Airport Special Equipment Co., Ltd chassis is self-made. The product is advanced and concise in product design, safe, reliable, reasonable in structural design, safe and convenient in operation, advanced in process, beautiful in appearance, highly reliable and easy to maintain. It can provide safe and efficient luggage conveying operation for all aircraft types. 3 Product Standard IATA AHM 925 Functional Description of Power-Driven Convener Belt Loader IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment IATA AHM 910 Basic Safety Requirements for Airport Ground Support Equipment
Availability:
Product Description

4 Major Performance And Technical Parameters


Height Range of Convener Belt s Front End (mm) 1200 4200  Height Range of Convener Belt s Rear End (mm) 540  1300 Width of Convener Belt (mm) 700
Maximum Uniform Load of Convener Belt (kg/m) 135
Maximum Mass of Single Cargo (kg) 400
Maximum Inclination of Convener Belt 28
Conveying Speed of Convener Belt (m/s) 0.16 0.5m/s
Maximum Travel Speed (km/h) 25
Minimum Steady Travel Speed (km/h) 3
Wheelbase (mm) 3000
Minimum Turning Radius (mm) 6600
Ground Clearance (mm) 170
Approach Angle 10
Departure Angle 15
L W H (mm) 8000 2100 2080
Vehicle Curb Weight (kg) 3700
