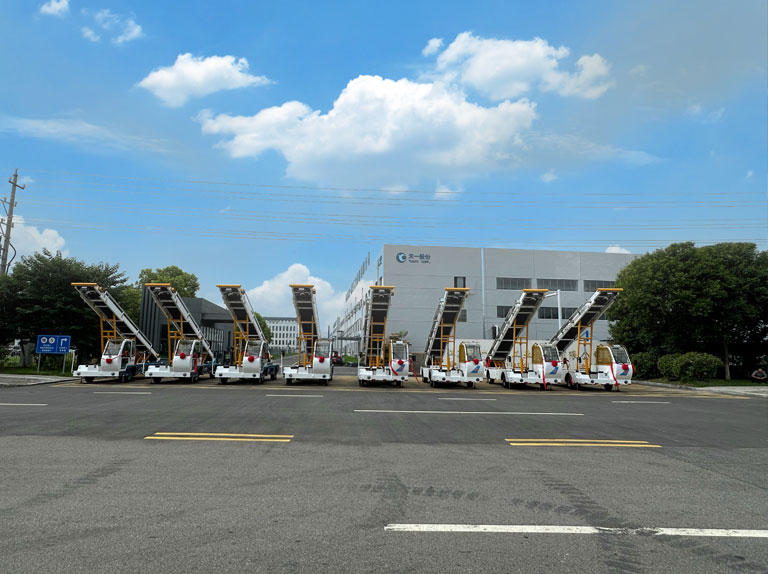

Bulk cargo loader (electric) technical parameter configuration 7
Driving motor model: HCDM030HP2
Travel motor controller model: HC30LKPIC-K21-V1-TY
Steering shaft model: 3000000-HY430A
Drive shaft model: 2400000-HY540A
Conveyor belt working range: front-end lifting range: 950 ~ 4580
Rear end lifting range: 290 ~ 1680
Transfer speed (m/s) : 0.16 ~ 0.5
Belt width (mm) : 700
Conveyor belt carrying capacity (kg/m) : 140
Overall dimensions (length × width × height) (mm) : 8050×2150×1950
Wheelbase (mm) : 2900
Maximum speed (km/h) : 35
Maintenance weight (kg) : 3700
Other features: Optional cab
Chassis model: JSTY5040JCSE-1000000A
Channel circle diameter (mm) : 13500
Hydraulic motor model: HCDM007MG1
Hydraulic motor controller model: HCDM007CL1
Energy storage device assembly model: L200B01
Total energy of energy storage device (kWh) : 88.87
Bulk cargo loader (electric) suitable for B747, B757, B767, B777, DC-10, MD-11, A300, A310, A320, A330 and other models, suitable for all tarmac and airport work area road, can work all day, with good rain, moisture, corrosion resistance, suitable for working environment: The altitude must be less than 3500m and the wind speed is 120m/h. The temperature (℃) is -35 ~ 65.
Bulk cargo loader (electric) chassis body welded from special high-strength steel. Chassis covered, removable. The chassis is fitted with four hydraulic legs and four spring plates. The chassis consists of transmission, steering, braking and cab. The drive system uses the motor controller to control the variable frequency speed regulation drive motor as the primary power, and transmits the power through the main deceleration drive axle, rim and tire. Drive motor controller and drive motor using famous company products; Suspension with longitudinal leaf springs. The steering system is controlled by the electric hydraulic pump driving the steering hydraulic cylinder through the full hydraulic steering device. The braking system is an electric vacuum pump to provide vacuum assisted braking, front disc and back drum type, dual pipeline hydraulic braking system.
