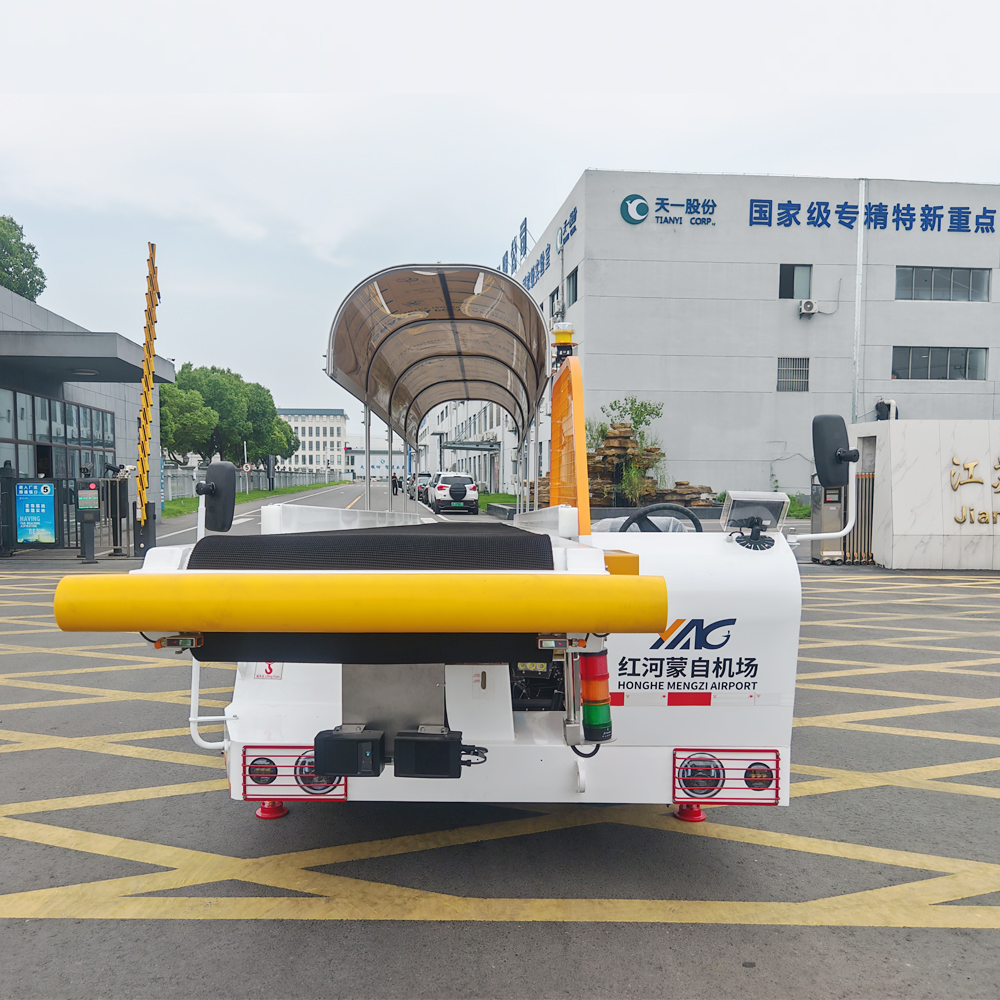

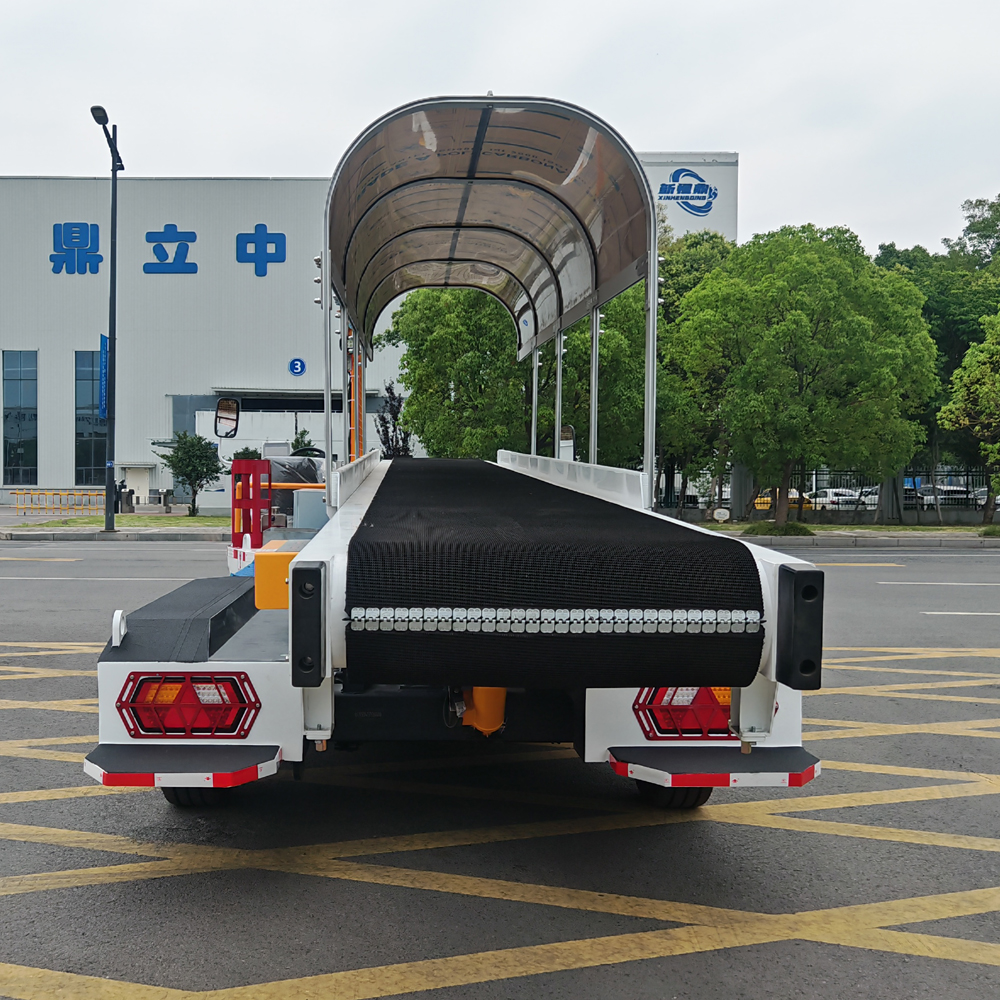

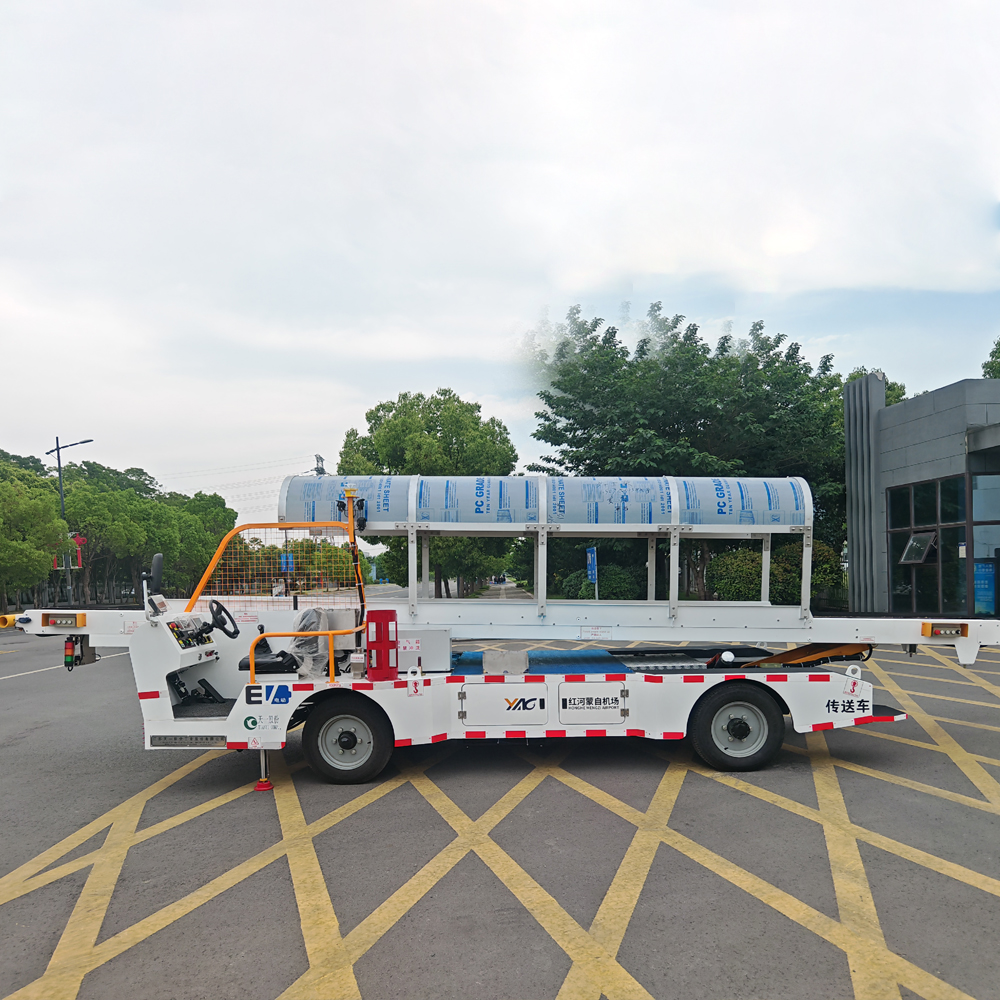

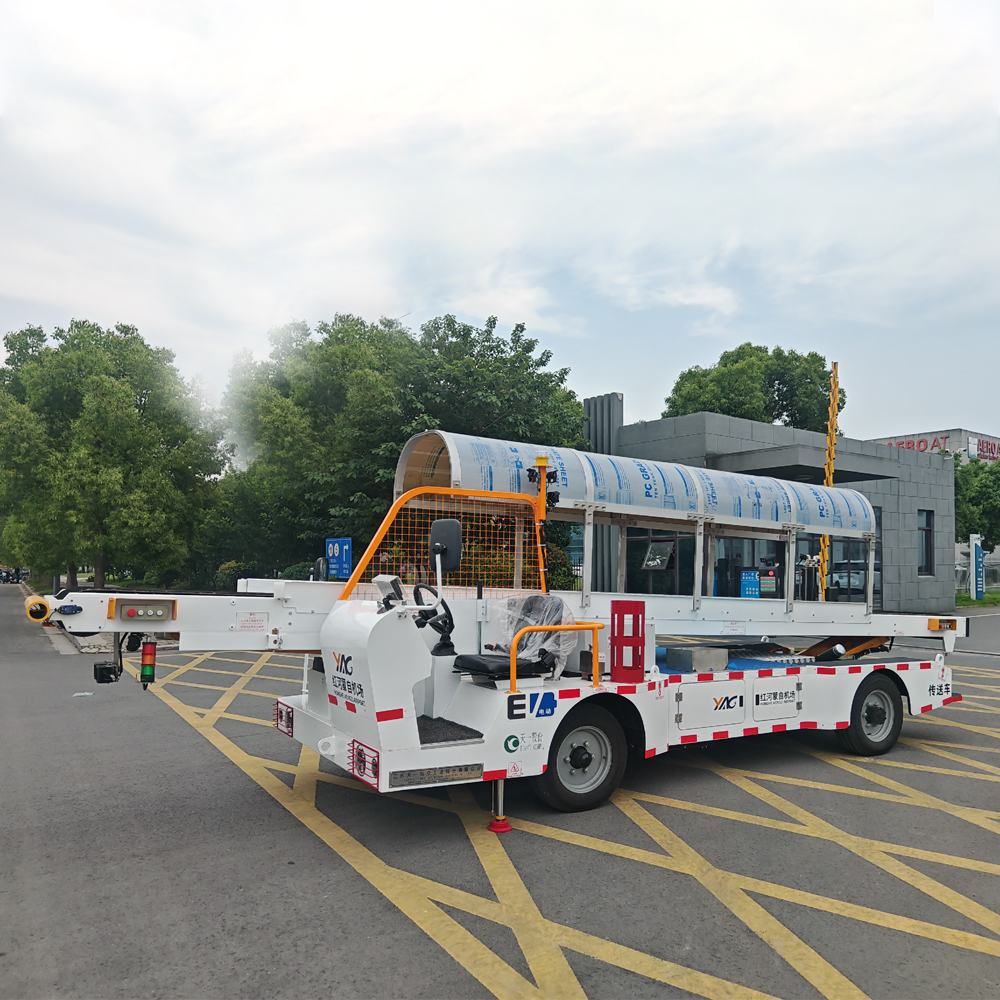

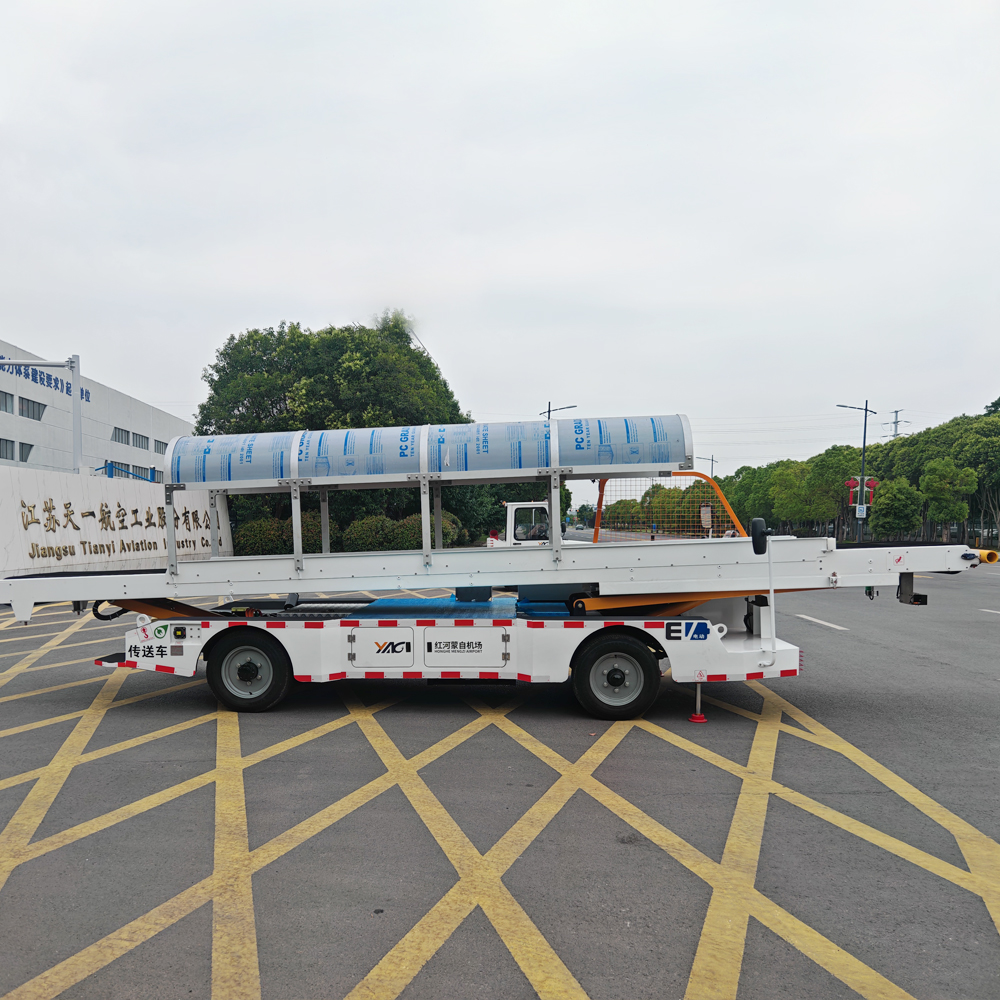

Cabless conveyor belt loader

JSTY5040JCSE Cableless conveyor belt loader (electric type) is a dedicated ground mobile equipment for airports used for loading and unloading passengers' luggage, parcels or mail packages, etc. of loose items. It can be used safely on aircraft models such as B747, B757, B767, B777, DC-10, MD-11, A300, A310, A320, A330, etc.

conveyor belt loaderMain performance index

Driving motor: Model: HCDM030HP2

Driving motor controller model: HC30LKPIC-K21-V1-TY

Steering shaft model: 3000000-HY430A

Drive shaft model: 2400000-HY540A

Working range of conveyor belt (mm)

Front end lifting range: 1050 - 4400

Rear end lifting range: 290 - 1680

Conveyor belt speed (m/s): 0.16 - 0.5

Conveyor belt width (mm): 700

Conveyor belt carrying capacity (kg/m): 150

Overall dimensions (length × width × height) (mm): 8070 × 2150 × 2000

Axle spacing (mm): 2900

Maximum vehicle speed (km/h): 30

Overall weight (kg): 3750

Range (km + t)

Small airport: 300 + 458

Large airport: 305 + 451

Medium airport: 304 + 456

Other features: Optional driver's cabin

Chassis model: JSTY5040JCSE-1000000A

Outer circle diameter of the passage (mm): 13500

Hydraulic motor model: HCDM007MG1

Hydraulic motor controller model: HCDM007CL1

Energy storage device assembly model: L200B01

Total energy storage device (kWh) : 88.87
