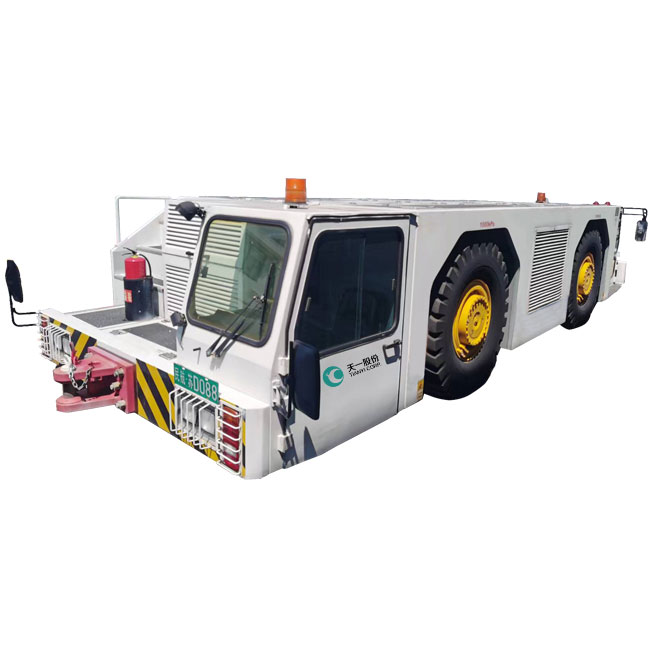

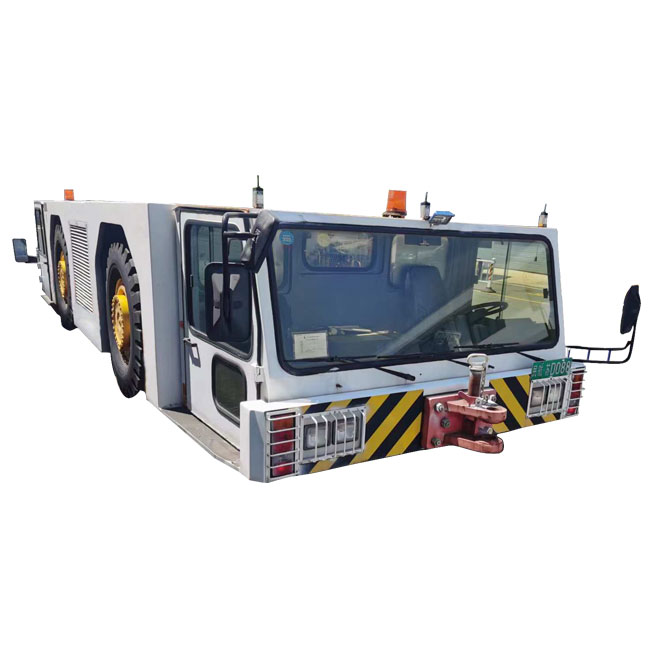

Diesel Aircraft Tow Tractor is a kind of full-bridge drive, all-wheel steering, engine as the power of the medium tractor. Maximum tractive force (kN) : 320
320KN Diesel Aircraft Tow Tractor Main technical parameters
Engine type: QSB6.7 T3-C260
Transmission model: 6WG-210
Brake system: service brake, parking brake
Brake form: hydraulic, double circuit, accumulator
Steering system: front wheel, four wheel, crab line, rear wheel
Steering type: Hydraulic, twin-bridge,
Wheelbase (mm) : 3250mm
Approach Angle (°) : 7
Departure Angle (°) : 9
Maximum net power: 194KW(2200r/min)
Maximum tractive force (kN) : 320
Maximum traction mass (kg) : 450000
Overall dimensions (L * W * H) (mm) : 8150*2950*1750 (including front and rear traction plugs)
Minimum turning diameter (mm) : 17,000 (two wheels) / 11,000 (four wheels)
Height of cab from ground (mm) : 1800
Cab lift height (mm) : 2350
Minimum ground clearance (mm) : 200
Maximum speed (km/h) : 35
Engine emissions: Meet GB 20891-2014 third stage limit requirements
