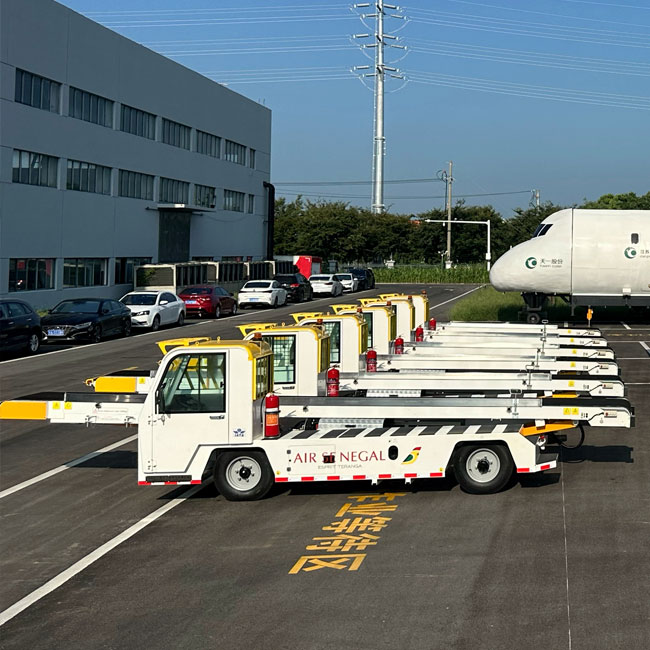

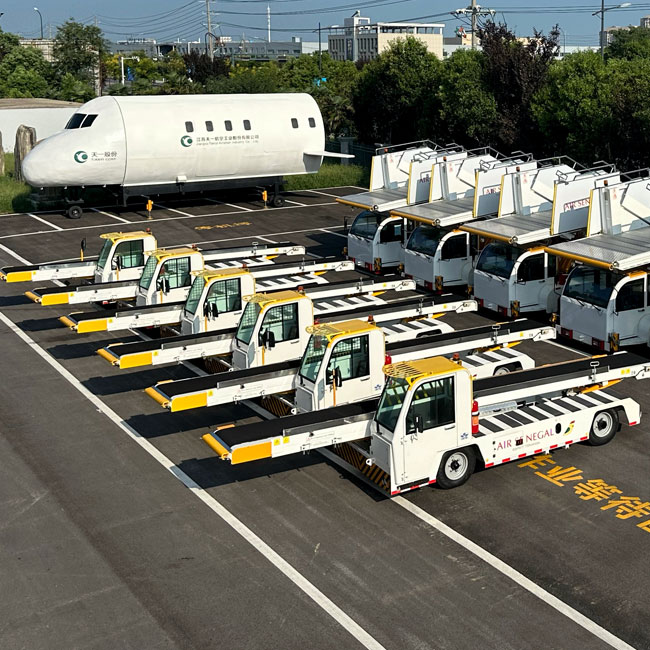

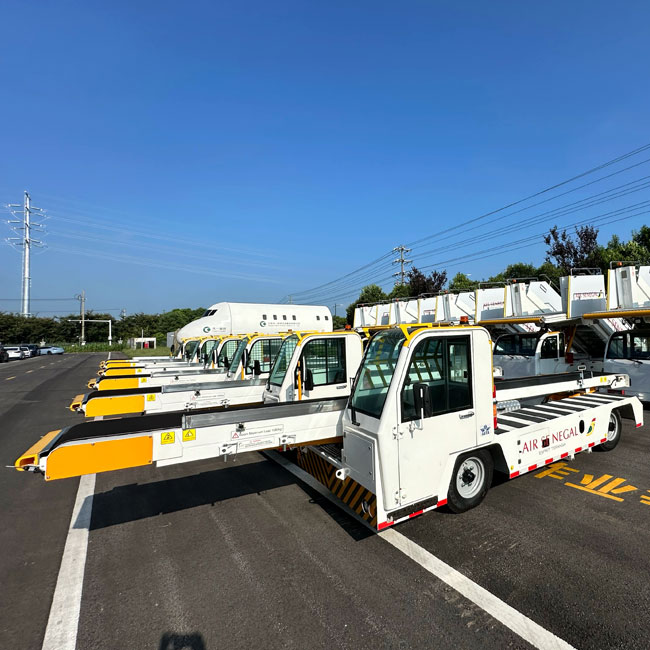

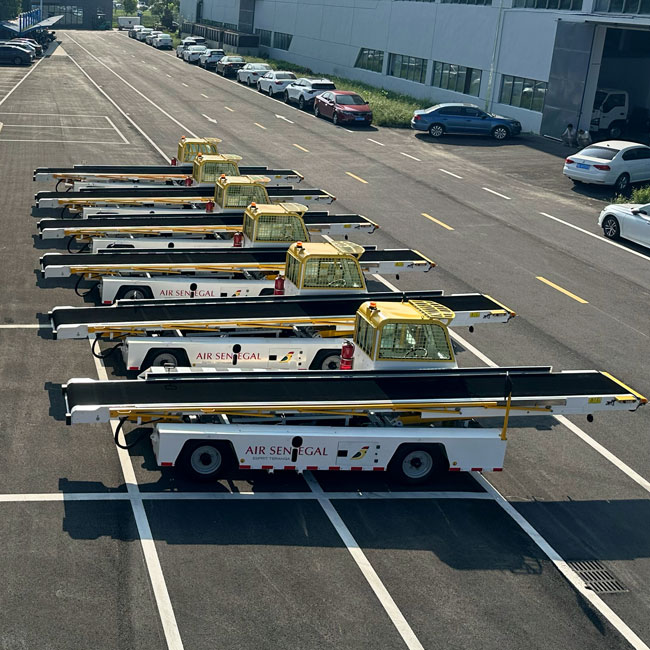

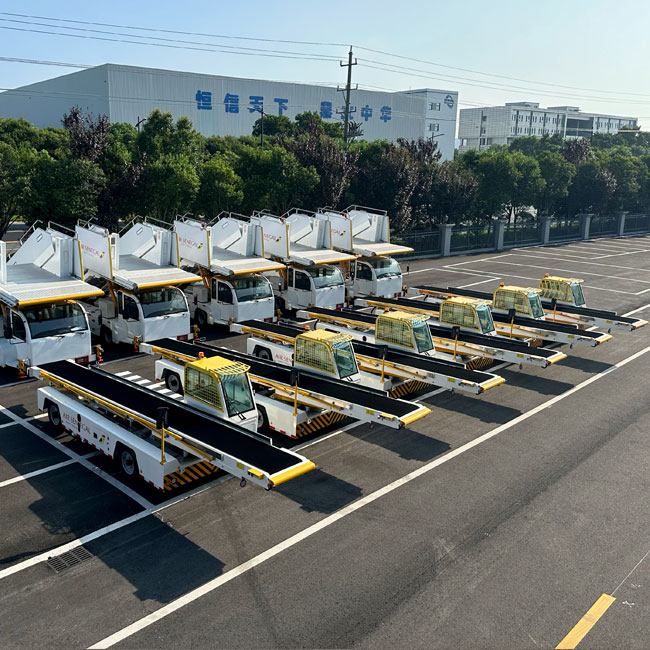

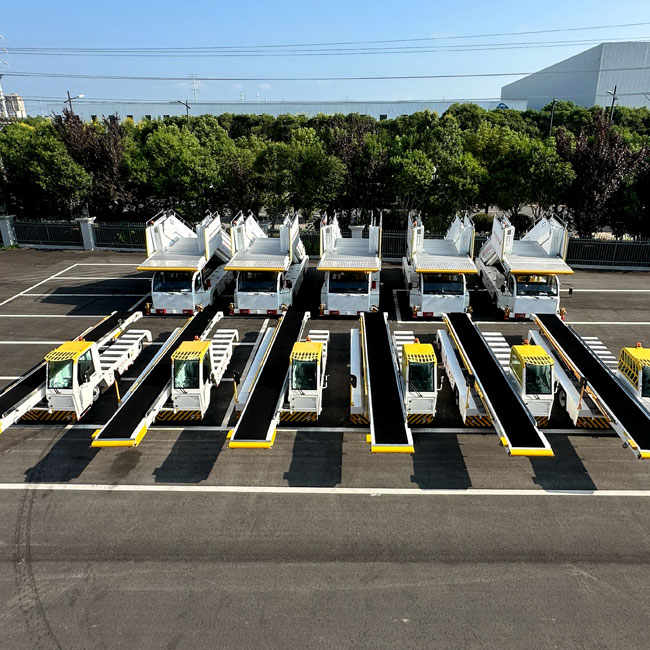

The TY-XC80 Diesel baggage belt loader is a special vehicle independently designed and manufactured by Jiangsu Tianyi Airport Special Equipment Co., LTD. The main assemblies of this model adopt the configurations of mature automotive products of corresponding levels at home and abroad, featuring reliable performance and convenient maintenance.
Reference materials for IATA AHM 905 Civil aircraft apron support Equipment
Basic Requirements for Ground Support Equipment at IATA AHM 910 Airport
IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
Technical Specification of IATA AHM-925 Self-driven Conveyor Belt Loader
MH/T 6030-2014 Bulk Cargo loader
AC-137-CA-2015-17 Specification for Inspection of Bulk Cargo Loaders
Diesel Baggage Belt Loader technical parameters configuration four
Chassis model: XC80.01000000
Engine model: QSF2.8t3NA49
Steering shaft model: HYQ200CT
Drive shaft model: 2400000-HY430CT
The working range of the conveyor belt (mm) : The lifting range at the front end: 1170-4330
The lifting range at the rear end: 520 to 1540
Transmission speed (m/s) : 0.16-0.5
Conveyor belt width (mm) : 700
Conveyor belt carrying capacity (kg/m) : 135
Overall dimensions (length × width × height) (mm) : 8140×2100×1960
Wheelbase (mm) : 3000
Maximum speed (km/h) : 25
Curb weight (kg) : 3450
The outer diameter of the channel circle (mm) : 20000
Engine emissions: Exhaust pollutants meet the emission limits of Stage IV in GB-20891-2014, and exhaust smoke meets the requirements of GB3847-2005.
