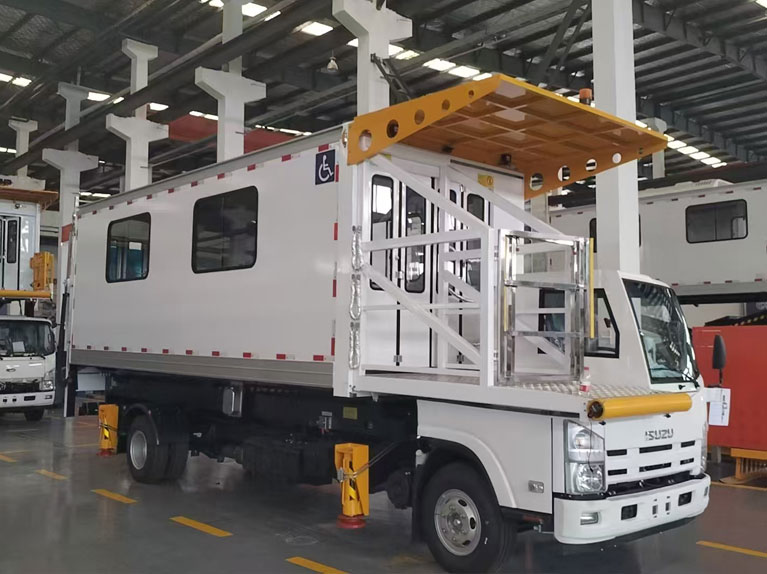

Diesel half-head Airport Ambulifts

Diesel half-head Airport Ambulifts applicable models and operational capabilities

Applicable models: Covers mainstream civil aircraft such as C919, ARJ21, A300, A320 series, B737 series, etc.

Applicable cabin door height: 1400 mm to 5800 mm, within the range you mentioned.

Platform load capacity: Fixed platform rated load is 1200 kg, and the mobile platform is 600 kg.

Key parameters of the Diesel half-head Airport Ambulift vehicle

Overall dimensions: Length 9540 mm × Width 2460 mm × Height 3770 mm.

Interior dimensions: Length 6350 mm × Width 2200 mm × Height 2100 mm.

Tare weight: 11250 kg.

Maximum allowable total mass: The rated load of the vehicle compartment is up to 2500 kg.

Driving performance: Maximum driving speed 75 km/h, docking speed ≤ 3 km/h (safety docking mode).

Core operational performance of Diesel half-head Airport Ambulifts

Platform adjustment: The movable platform has a telescopic adjustment range of 600 mm.

Working height: The height of the front platform ranges from 1400 to 5800 mm, and the lifting height of the vehicle from the ground is 1420 to 5800 mm.

Operating environment: It can operate stably in environments ranging from -20℃ to +50℃ and under wind conditions of 8 levels (wind speed 20.8 m/s). Chassis configuration: Uses Chongqing brand chassis. Optional Allison or Chongqing-owned transmission can be selected. The engine emission standards cover both Stage V and Stage VI.
