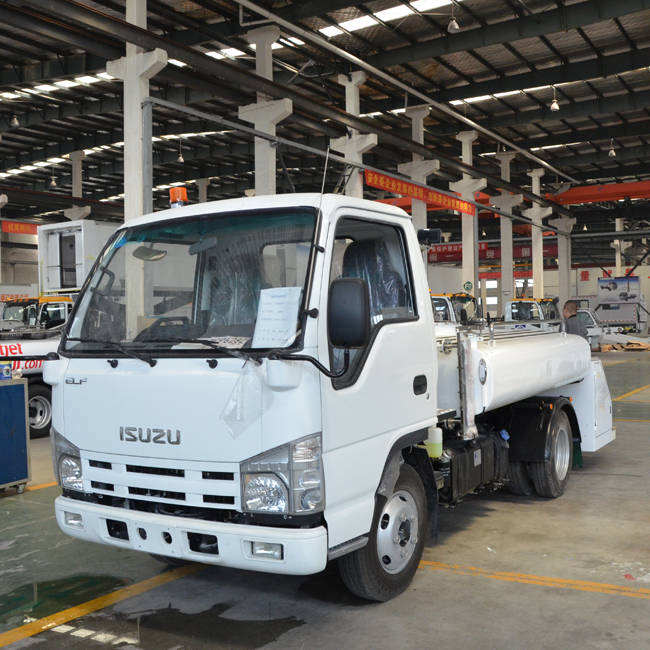

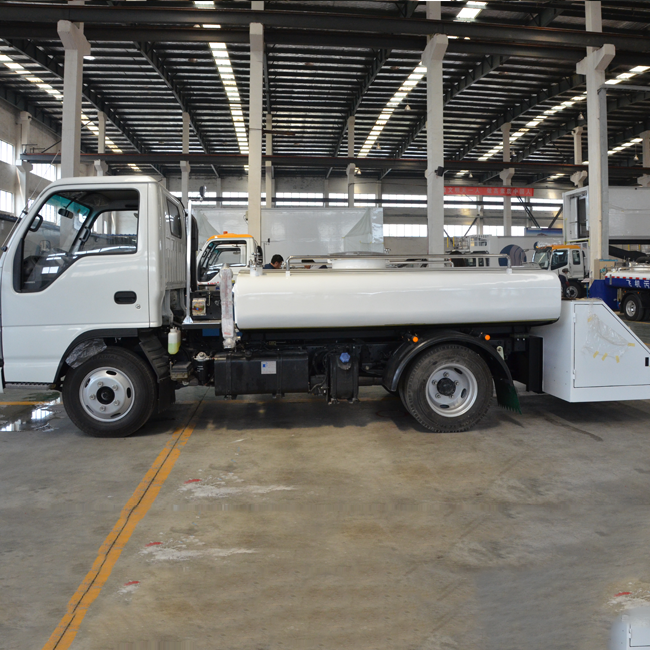

JSTY5070GQS Diesel Potable Water Truck is a new type of airport vehicle which is modified from Qingling QL1070A5KAY chassis to refill water for aircraft. The car is a manual chassis, designed as a rear lifting platform, the center of the large-capacity water tank, in which the lifting platform is equipped with night operation lights, convenient for night operations. The product chassis cab for the flat head, single row seat, two-door type, crew of 2 people; drive type for 4 × 2, fresh water tank volume of 4m ⊃3;, for fresh water flow ≥ 150L/min.
Overall length mm | 7265 | Overall width mm | 2140 |
Overall height mm | 2295 | Wheelbase mm | 3815 |
Wheelbase (front/rear) mm | 1504/1425 | Front overhang mm | 1010 |
Rear overhang mm | 2440 | Fresh water compartment volume L | 4000 |
Approach angle (°) | 22 | Departure angle (°) | 6 |
Minimum ground clearance mm | 200 | Outer diameter of passage circle mm | 17000 |
Total mass kg | 4160 | Maximum speed km/h | 80 |
Maximum operating speed km/h | 50 | Water supply flow rate L/min | ≥150 |
Water supply pressure Mpa | 0.25-0.40 | Water pump material | Stainless steel corrosion-resistant pump |
Platform lifting height mm | 400-3000 | Maximum load of platform kg | 200 |
