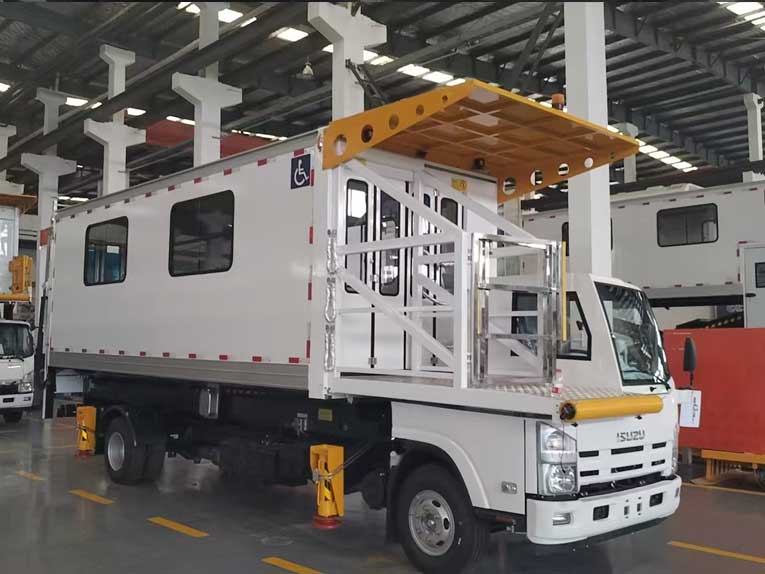

Disabled Passenger Lift (Ambulift) chassis
1. Select the Qingling 700P Class II vehicle chassis (QL1080A8PAY)
Engine model: 4HK1-TC51
Maximum power: 141kw/2600/min
Maximum torque: 513Nm/1600r/min
Type: Water-cooled, turbocharged, intercooled, four-stroke diesel engine
Emission standard: National V standard
Transmission Move forward six gears and backward one gear
I: 6.720 II: 4.244 III: 2.580 IV: 1.540 V: 1.00 Ⅵ : 0.763 R: 6.823
3. Adopt a hydraulic power steering system.
4. It adopts a dual-circuit hydraulic braking system.
The Qingling QL1080A8PAY (700P) Class II automotive chassis features stable performance and an attractive appearance.
When the platform is raised, the vehicle cannot move.
Technical parameters of Disabled Passenger Lift (Ambulift)
Overall dimensions (length × width × height) : 9200mm× 2460mm × 3770mm
Internal dimensions of the box body (length × width × height) : 6350 mm×2200 mm×2100 mm
The telescopic distance of the telescopic platform is 600 mm
The moving distance of the mobile platform: 600 mm
The height of the front platform from the ground: 1400 mm - 5800mm
The height of the box body from the floor: 1500-5900mm
The height of the rear platform from the ground: 0mm - 1500mm
Wheelbase: 5200 mm
Approach Angle: 14°
Departure Angle: 14°
The outer diameter of the channel circle: 20,500mm
The total weight of the vehicle is 11,250 kg
Maximum load capacity of the box body: 2500kg
The maximum load capacity of the front platform is 1200kg
The maximum load capacity of the rear platform: 500kg
Allowable operating wind speed: Level 8
Maximum speed: 75 km/h
The approaching aircraft speed is ≤3 km/h
Maximum working pressure: 16 Mpa
