electric Aircraft catering vehicles Electrical system
It adopts a total power of 162kWh and is composed of a driver's cabin control box, a box body operation box, a ground operation box, an electrical box, etc. The relay logic control circuit is used to concentrate all relays on the printed circuit board of the electrical box to raise and lower the box body. Support the feet to extend and retract; The functions of the platform such as movement and extension are interlocked. The ground operation box is equipped with the lifting and lowering functions of the box body. Support foot release and retraction buttons and indicator lights, etc. The operation box inside the compartment is equipped with the lifting and lowering of the compartment. Platform movement, telescopic buttons and indicator lights, etc.
2. A protection circuit for the platform extension is set up. When the sensor detects an object, the control circuit of the platform extension is cut off to stop the platform from extending.
3. Set up the emergency shutdown circuit for starting and the control circuit for using the emergency electric pump, and set up the support foot indication signal. Both relays and switches are from well-known brands. Electrically controlled hydraulic operation console, lighting electrical switch, emergency stop switch.

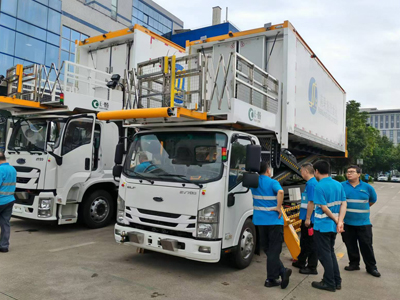

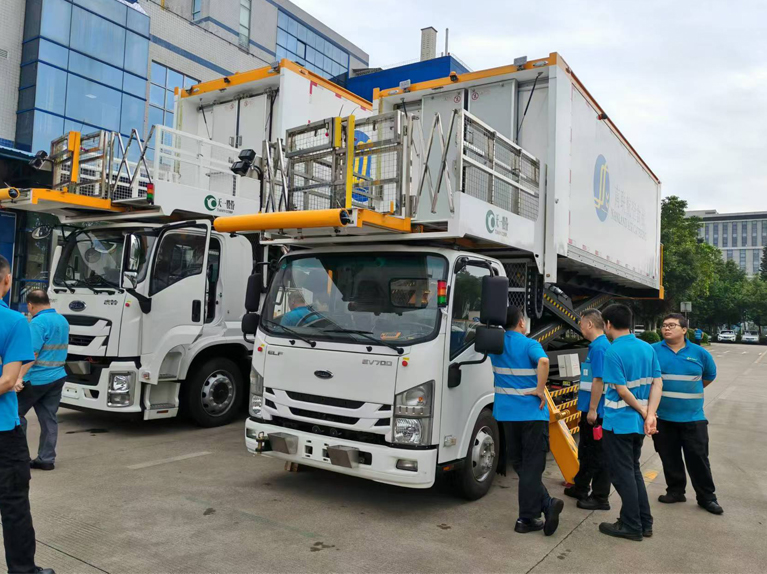

electric Aircraft catering vehicles
Driving motor model: TZ370XS-LKM1201
Model of driving motor controller: KTZ54X38S-LKC1201
Model of energy storage device assembly: L150TX8
Platform working height (mm) : 2150-6000
Rated load of the box body (kg) : 3800
Rated load (kg) of the front platform: 2200
Rated load (kg) of the moving part of the front platform: 600
The left and right adjustment range (mm) of the front platform's moving part: 0 to 500
The telescopic adjustment range (mm) of the front platform's movable part: 0 to 600
The dimensions of the fixed part of the front platform (length × width) (mm) : 1900×2085
The dimensions of the front platform's movable part (length × width) (mm) : 820×1200
Curb weight (kg) : 10,600
Overall dimensions (length × width × height) (mm) : 9450×2300×3400
Driving range (km) : 285
Chassis model: QL1103BEVEYMAY
The external dimensions of the body (length × width × height) (mm) : 6600×2300×2100
Rated load (kg) of the fixed part of the front platform: 1600
Total energy of the energy storage device (kWh) : 162.28
