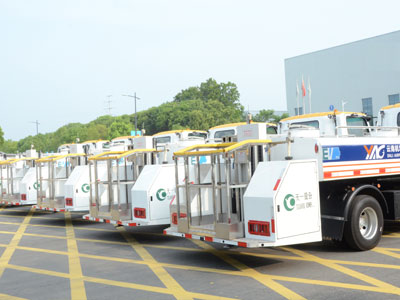

Electric aircraft water truck lifting working platform

Electric Aircraft Water Truck Elevating Work Platform serves as an operational workstation, accommodating the working heights of various aircraft models in use. The lifting cylinder employs a single-section hydraulic cylinder, while the lifting mechanism utilizes new aluminum alloy profiles. An electrical control panel is mounted on the platform to manage water pump operation, platform elevation, emergency stop functions, and more.

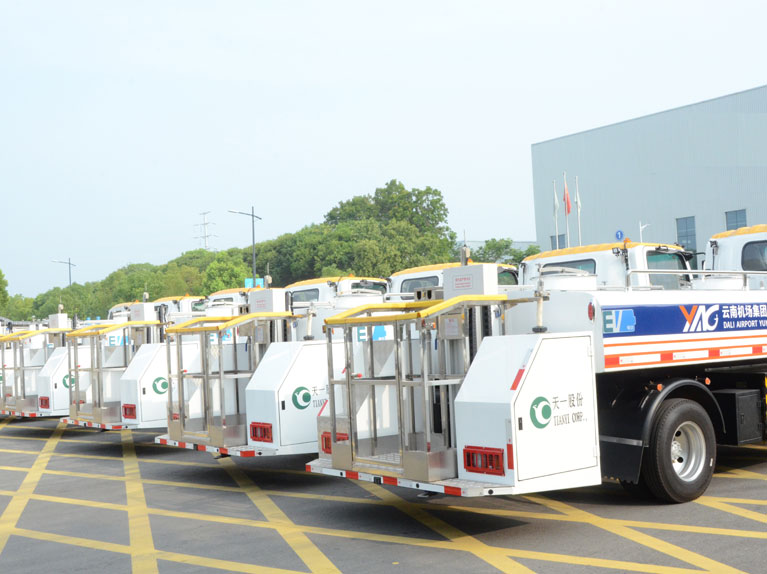

Electric Aircraft Water Truck

Drive Motor Model: YTD060W23

Drive Motor Controller Model: KTZ50X35S

Energy Storage Device Model: L173TB2

Water Tank Capacity (L): 5100

Water Supply Flow Rate (L/min): 235

Water Supply Pressure (MPa): 0.25–0.35

Curb Weight (kg): 4150

Overall Dimensions (L×W×H) (mm): 6955×2150×2250

Maximum Speed (km/h): 90

Range (km): 318

Chassis Model: QL1070BEVECHA2Y

Motor Pump Model: JSTY5060GQSE-1002002

Motor Pump Controller Model: JSTY5060GQSE-1002001

Total Energy Storage Capacity (kWh): 106.95

Workbench Lifting Height (mm): 390–3100
