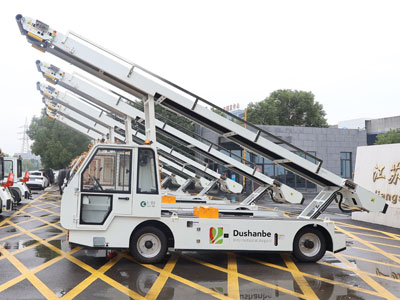

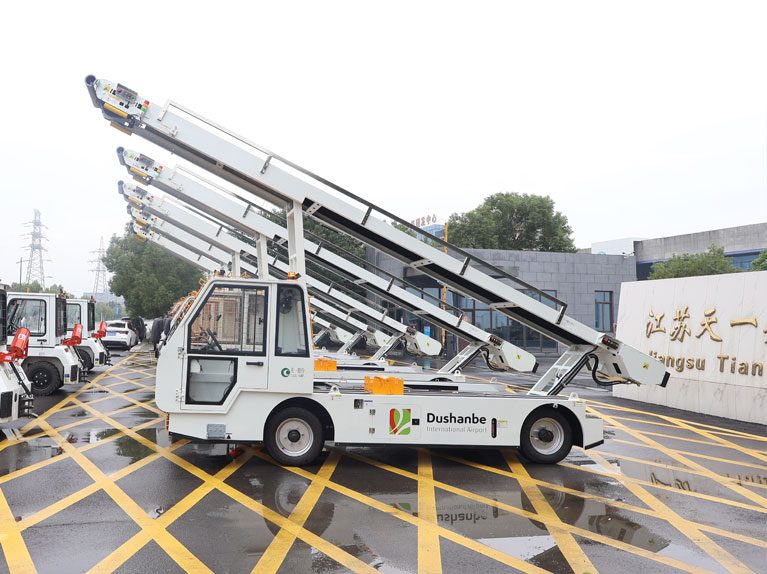

Electric Airport belt loader

JSTY5040JCSE Electric Airport belt loader is used for loading and unloading baggage, light cargo and mail in and out of the bottom cabin of the aircraft.

Electric Airport belt loader Main Technical Specifications

Overall Dimension L×W×H (mm)：8200×2150×2130

Height range of the front end of the roller frame from the ground (mm) ：1160---4380

Height range of the rear end of the roller frame from the ground (mm) ：380--1560

Total Vehicle Weight (kg) ：3500

Conveyor belt width (mm) ：700

Conveyor frame width (mm) ：880

The max.      inclination Angle of the transfer frame（°） ：28°

uniform load-bearing capacity (kg) ：1080

Carrying capacity of a single piece of cargo (kg) ：400

Conveying Speed (m/s) ：0.16-0.5

Maximum driving speed (no load)（km/h） ：35

wheelbase (mm) ：2900

min.stable driving speed（km/h）： 0.3

Channel circle outer circle diameter (mm)： 15400

min.departure angle (mm) ：31

min.approach angle (mm)： 10.5

wheel-track front/rear (mm)： 1730/1680

Longitudinal passing angle (mm)：  20

Driving range (km )：  326

driving motor power（kw/r/min）：  30/3000

Energy storage device assembly Ningde Times（kwh）：  70.48

Discharge energy density（WH/KG）：  PED=160.26
