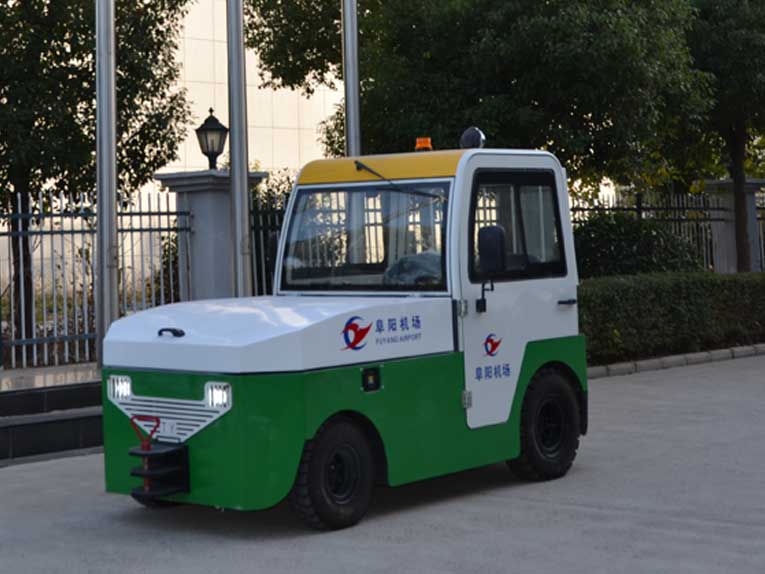

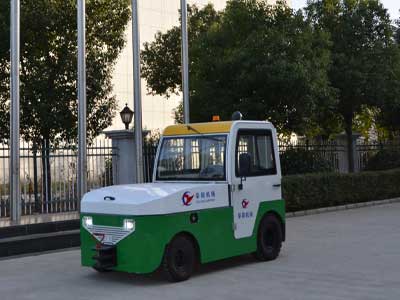

The frame of the TYLTD300 Electric Baggage Tractor is made of steel as a whole. The electronic control system is an AC controller. The drive system adopts an efficient wet brake drive integrated electric bridge with a power of 28.7KW, providing strong drive. Both the front and rear suspensions of the chassis adopt semi-floating elastic suspension technology, featuring a simple structure and a low failure rate. It adopts front and rear helical springs and is equipped with cylindrical shock absorbers for shock absorption, thereby enhancing the operational comfort and significantly reducing the driver's labor intensity.
Electric Baggage Tractor installs a 360° panoramic view system. By setting up four wide-angle cameras around the vehicle that can cover all the field of view around the vehicle, it processes multiple video images collected at the same time into a 360-degree top view of the vehicle body around the vehicle, and finally displays it on the screen of the center console. Let the driver clearly check whether there are any obstacles around the vehicle and understand the relative position and distance of the obstacles to help the driver park the vehicle easily. Not only is it very intuitive, but it can also enhance the driver's ability to park the vehicle calmly or pass through complex road surfaces, effectively reducing the occurrence of accidents such as scratches, collisions, and falls.
Electric Baggage Tractor parameters
Length × Width × height (mm) : 3200×1400×2000
Longitudinal passing Angle :23.5°
Approach Angle: 12°
Departure Angle: 19°
Minimum ground clearance (mm) :150
Minimum turning diameter (mm) :6550
Maximum speed (km/h) :25
Curb weight (kg) : 4000
Maximum traction force (kN) : 25
Maximum traction mass (kg) : 25,000
