Electric Garbage Trucks Product standards
IATA AHM 905 reference material for civil aircraft apron support equipment
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment
IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
GB/T 31029-2014 Aircraft Garbage Receiving Vehicle
AC-137-CA-2015-18 Aircraft Garbage Receiving Vehicle Inspection Specification
General Technical Requirements for Ground Service Equipment of Electric Aircraft AC-137-CA-2015-20R1
GB/T 18488-2006 Electric Motors and their controllers for electric vehicles
GB/T 24347-2009 DC/DC Converters for Electric Vehicles
GB/T 18384-2001 Safety Requirements for Electric Vehicles
GB/T 18487-2001 Conduction Charging System for Electric Vehicles
GB/T 20234-2015 Conductive Charging connection Devices for Electric Vehicles
GB/T 27930-2011 Communication Protocol between Off-board Conductive Chargers and Battery Management Systems for Electric Vehicles
DB11/Z993-2013 Technical specification for electric vehicle remote service and management system

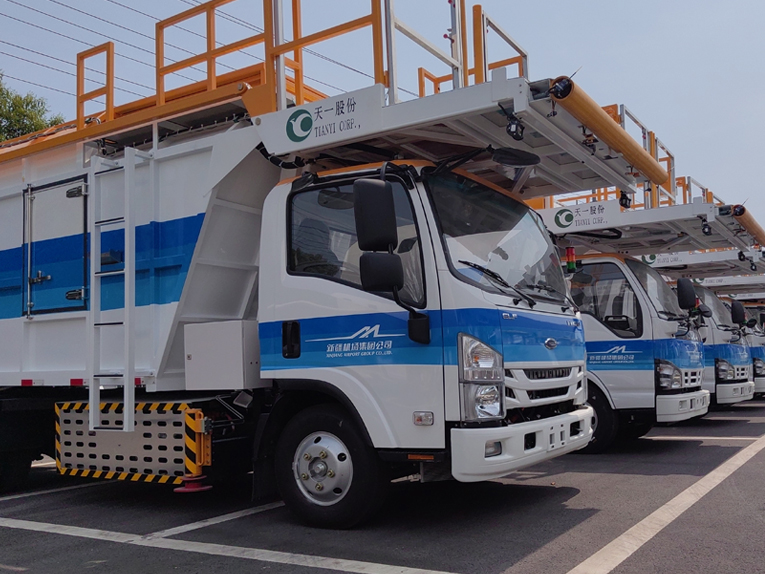

Electric Garbage Trucks can handle garbage on various types of passenger aircraft such as B737, B747, B777, B787, A320 series, A330, A350, etc
Electric Garbage Trucks chassis adopts isuzu second class chassis, local modification according to the product design company. The chassis is composed of: diesel tank, battery, hydraulic valve group, electrical control box, hydraulic oil tank, fire extinguisher, support feet, sewage tank, taillight and underframe assembly.
Four support feet are installed at the front and rear of the chassis. When performing the lifting and lowering operation of the box body, the outriggers need to be lowered to ensure the stability of the entire vehicle.
An 8Kg fire extinguisher is installed at the rear of the front passenger seat on the chassis. One wheel stop bracket is installed on the left side of the box.
